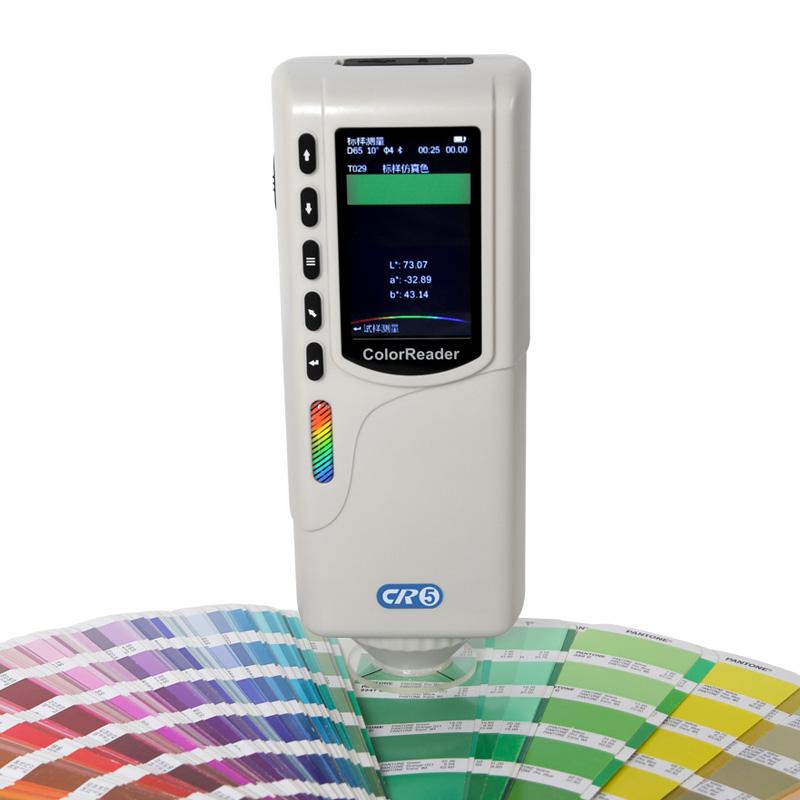

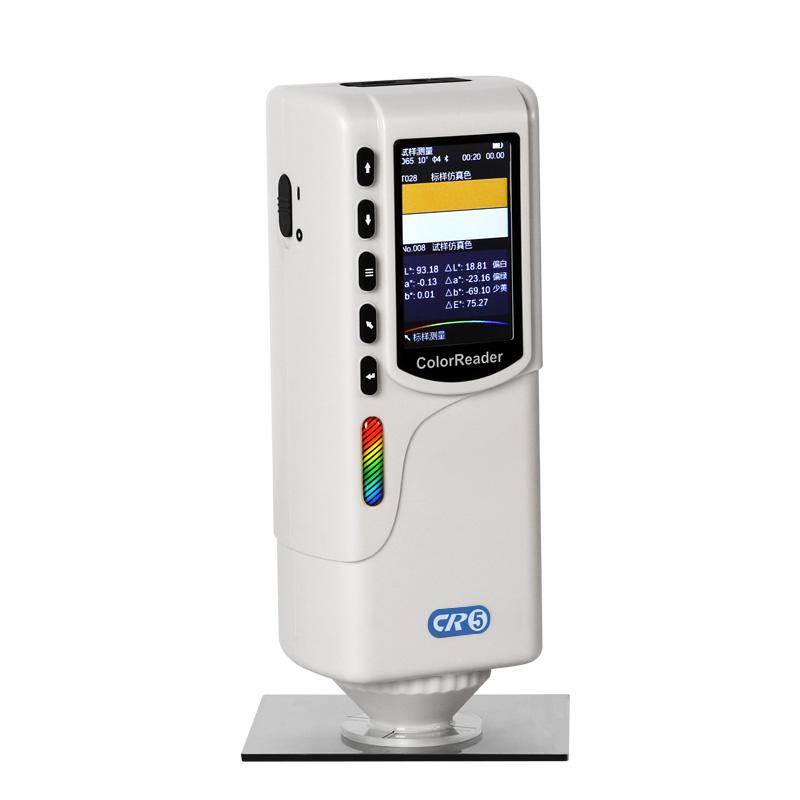

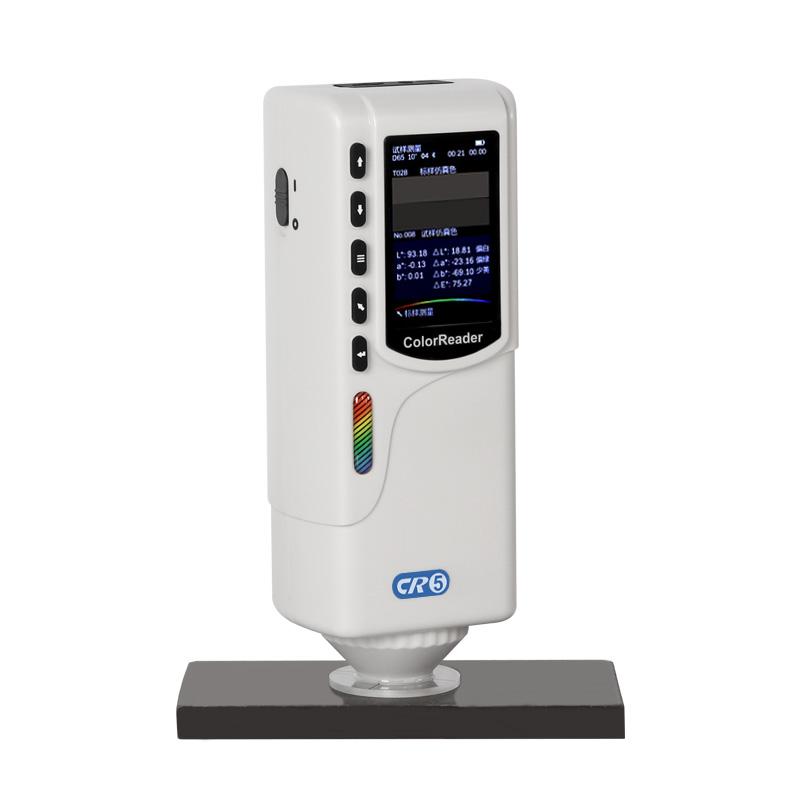

3NH CR5 color difference treasure (industrial professional version) accuracy 0.1

Color difference treasure CR5 adopts full Light spectrum LED Light source, φ 4mm diameter, display accuracy 0.1, light spot positioning, built-in massive color number data, APP massive search; can search the new 50 master standards and 50 samples, Automatic calibration, Measurement.

$425.00/set

PromotionLoading...

Coupon

Model：

Certificate

3NH

Manufacturer authorization

Contact

Details SPEC Con VIDEO CAT OI

3NH CR5 Color difference treasureSPEC

3NH CR5 Color difference treasureDetails

3NH CR5 Color difference treasurePacking list

SKU: NB035806

Lighting method: 8°/d

Integrating sphere size: F40mm

lighting source: Light spectrum LED light source

Spectroscopic method: Filter spectroscopy

sensor: CMOS sensor

Wavelength range: 400~700nm

Measurement caliber: F4mm

Light-containing method: SCI

Color space: CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99(部分仅在APP实现)

Color difference formula: ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)（部分仅在APP实现）

Chromaticity indicator: WI, YI, Homochromatic Index MI, lightfastmess, color fastness, force, occlusion, 555 hue classification, Munsell (C/2), Light spectrum Linear dispersion (partially only implemented in APP)

display Accuracy: 0.1

Viewing Angle: CIE 2 ° / 10 °

Observation light source: D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)

display mode: Sample chromatic value, color difference value/plot, pass/fail result, Color simulation, Color bias

Measurement time: About 1.2s

Chromatic value repeability: ΔE * ab within 0.1

Accuracy Guarantee: Measurement by country

Measurement mode: Single measurement, average measurement (2~ 99 times)

Positioning method: Light spot positioning

Dimensions: 205*67*80mm

Weight: Approx. 500g

Battery life: Rechargeable Li-Ion Battery 3.7V @3200mAh

Lighting source life: 5 years more than 1.60 million measurements

Display: TFT True Color 2.8inch @(16:9)

Data Interface: USB; Bluetooth 5.0; buttons

Data storage: 1000 master standards, 10000 samples, Mass storage can be expanded through mobile APP

Instrument side data search: APP Massive search; can search the latest 50 master standards and samples 50

Operating language: Simplified Chinese, English

Operating conditions: 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m

Storage environment: -20~50 ℃, 0~85% RH (no condensation)

Standards: CIE No.15GB / T 3978

CR5

Color difference treasure

Introduction

Color difference treasure CR5 (industrial advanced version) is the creative work of 3nh's concentrated backbone technical elites and joint designers, which embodies the technical strength completed in a short time, the professional spirit of high-intensity testing, and the traditional blood of innovation and excellence.

Color Difference CR5 (Industrial Advanced Edition) is an innovative tool for color measurement, reading, Color Chart retrieval and color difference evaluation. The powerful color recognition ability is integrated in a safe and portable volume, and it is seamlessly connected with mobile devices through Bluetooth, which makes the traditional color measuring instrument glow with a different application charm.

Features

CR5 Touching ColorReader

◆The instrument itself has the function of data search

◆Automatic calibration at startup, no need for cumbersome instrument calibration; professional and meticulous combination, equipped with black and white board manual calibration function, it is recommended that users do simple professional calibration from time to time to ensure that the instrument is always working in a state that can pass the measurement

◆The miniature whiteboard is inserted into the instrument bag, and the whiteboard is separated from the instrument, which ensures the weather resistance, dirt resistance and wipeability of the whiteboard, and ensures the standard baseline function of the whiteboard for a long time

◆Equipped with a fine-tie fastening dust cover and an easy-to-carry environmentally-friendly packaging bag, one cover shuts down and one lifts it away. It can be placed in a car, men's and women's handbags, backpacks, office consoles, or lightly carried, beautiful and beautiful Visible, safe and reliable

◆Long battery life, convenient USB socket and power bank charging, can measure thousands of times even in the working state of large screen and high brightness, and can measure tens of thousands of times when the screen is turned off

◆The large screen of the instrument and the display screen of the mobile phone have the simulation function of true color synchronization color

Convenient color difference measurement

◆It can measure the color parameters of objects such as L*a*b, L*C*H, RGB, Hex and so on under light sources such as D65

◆ΔEab, ΔE00 color difference display, flexible setting tolerance range prompt

◆Prompt Pass or Fail directly on the screen of ColorReader, accompanied by different sound alarm functions (can be turned on/off)

Mobile Color Chart database

◆You can use ColorReader to build a personal color database in the cloud

◆No need to carry heavy Color Charts, you can use ColorReader anytime, anywhere to find similar colors in various Color Chart databases

Trendy color search function

◆Connect to the mobile APP, measure the color, and search in the Color Chart database

◆Automatically match new popular colors (in addition to traditional Color Charts, ColorReader will publish and suggest fashionable international colors from time to time)

◆There is only a slight difference between each instrument in the same series of ColorReader products. The APP will automatically identify the instrument model and can share the color database, ensuring a good ecology of the instrument
