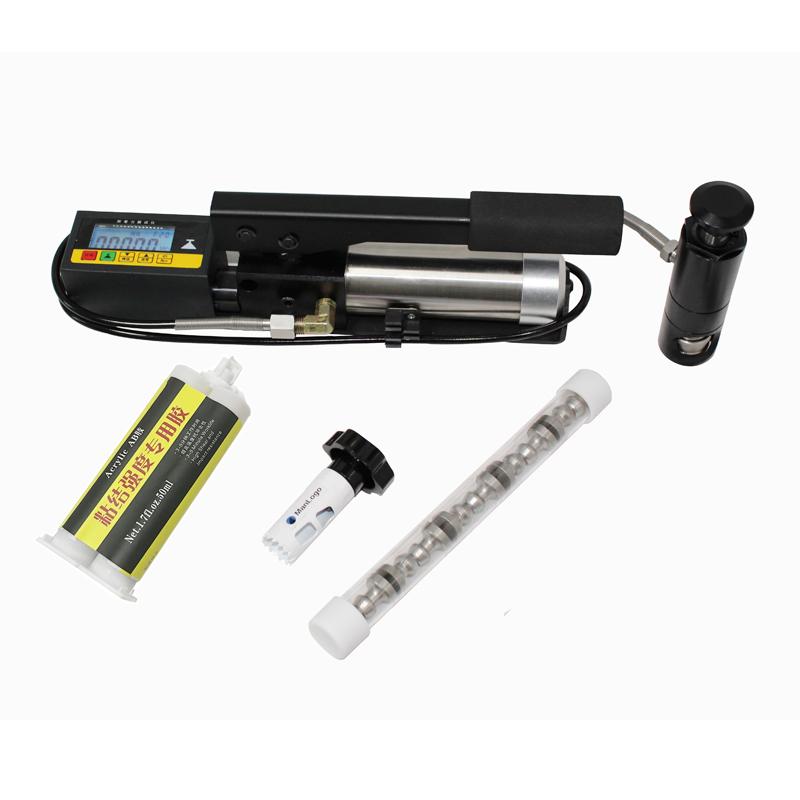

KOSON KS-M coating adhesion Detector 14mm

KS-M(14mm)

Coating adhesion Tester

Range 0~64.99MPa/0~10kN, resolution 0.001KN/0.001MPa, spindle diameter 14mm, digital display, intuitive and reliable test results, designed and manufactured according to international and national standards, advanced technology, stable performance.

Application

KS-M pull-out adhesion Tester can measure the adhesion of metal, paint, plastic spraying, waterproof material, adhesive, chrome plating, nickel plating, concrete and other coatings. The Principle of the instrument is to use the hydraulic system to separate the coating with a certain diameter on the surface of the tested substrate to measure the adhesion of the coating. The multifunctional digital display of the Tester displays the adhesion, which is displayed in MPa or KN. Digital display, the test results are intuitive and reliable. Different from the detection of cross-cutting products, it reduces the error of human observation. The product is designed and manufactured according to relevant international and national standards, with advanced technology and stable performance.

Features

1. Portable handheld instrument, can be used in any place, no external power supply is needed-it can be used in both laboratory and field.

2. Large and easy-to-read LCD digital display

3. Press the button to select the spindle size, measurement unit and storage data, and automatically calculate the result according to the spindle size.

4. Portable instrument case and alloy and stainless steel main body, rainproof, dustproof and impactproof.

5. The high-quality hydraulic pump can be used in any occasion, with a three-year warranty.

6. The pressure and display system have been calibrated by a standard dynamometer, and the accuracy is controlled within ±1% (full scale).

7. The self-positioning spindle has no effect on the measurement results on smooth and rough surfaces.

8. High-grade industrial pressure sensor ensures continuous high precision.

9. 10mm, 14mm, 20mm and 50mm spindles are available.

10. LCD liquid crystal display, press the button to select MPa or KN unit.

Standards

① ISO 4624 "Paints and varnishes-Pull-off test for adhesion"

② ASTM D 4541 "Standard Test Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers"

③ ASTM D7234 "Standard Test Method for Pull-OffAdhesion Strength of Coatings on Concrete Using Portable Pull-OffAdhesion Testers"

④ GB/T 5210-2006 "Adhesion test of paint and varnish pull-off method"

TB-T2965-2011 "Technical Conditions for Railway Concrete Bridge Deck Waterproof Layer"

Packing list：Digital display manual pump, quick pull sleeve, charger, spindle, cutter, grinding pad, adhesive, portable instrument case, certificate of conformity, warranty card, manual

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
