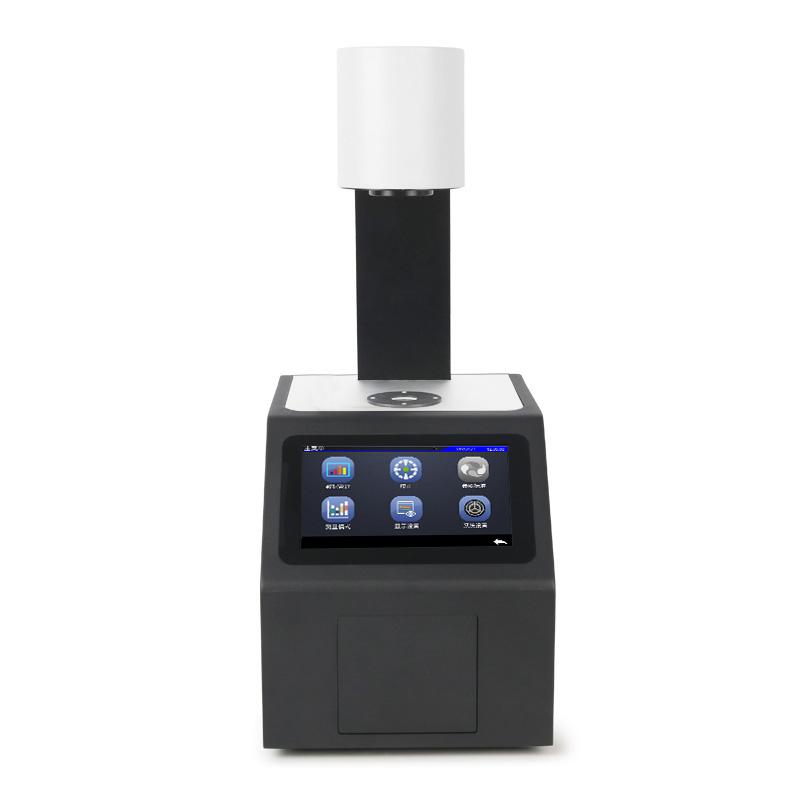

3NH YH1000 Haze Meter φ 15mm

SE
φ 15mm measurement diameter, large size touch operation screen, simple and convenient operation, using PD array Detector, meeting CIE V (lambda) 2 degree visual Response can achieve high-precision and repeatability Transmittance and haze measurement. USB data output device, can be docked with laboratory system.
Certificate
Contact
Details SPEC Con CAT OI

3NH YH1000(Φ15mm) haze meterSPEC

3NH YH1000(Φ15mm) haze meterDetails

3NH YH1000(Φ15mm) haze meterPacking list

SKU
NB035814
Lighting method
Transmission: 0/D (parallel light illumination, diffuse reflection reception)
Integrating sphere size
F154mm
lighting source
400~700Nm combined LED light source
sensor
PD Array Detector with CIE V (λ) 2 Degree Visual Response
Transmittance range
0~100%
Measurement caliber
F15mm
Sample size
Film thickness less than 170mm
Other chromaticity indicators
Haze (ASTM D1003/1044), Transmittance T (ASTM)
Observer angle
2°
Observation light source
D65,A,C
show
Pass/Fail Results
Measurement time
About 1.5s
haze resolution
0.1 unit
Haze, sexual repeability
Φ20mm diameter, less than 0.1 (after the instrument is preheated and corrected, the standard haze sheet with a haze of about 30 is tested 30 times at an interval of 5s)
Inter-station difference
Φ20mm diameter, less than 0.4 (after the instrument is preheated and corrected, the standard deviation between the standard haze sheet and the reference value is tested at intervals of 5s)
size
Length X width X height = length X width X height = 290X211X511mm
Weight
About 7.6kg
Power Supply
DC 24V, 3A power adapter Power
Lighting source life
5 years more than 3 million measurements
Display
TFT true color 7inch, capacitive touch screen
interface
USB, print serial port
Store data
1000 master standards and 10000 samples
language
Simplified Chinese, Traditional Chinese, English
Operating temperature range
0~40℃（32~104°F）
Storage temperature range
-20~50℃（-4~122°F）
Standards
ASTM D1003/1044,GB/T 2410,JJF 1303-2011,CIE 15.2,JIS K7105,JIS K7361,JIS K 7136
Feature 2
Open measurement area for vertical and horizontal testing. It is widely used in transmittance and haze detection in Glass processing, Plastic processing, Film, Display processing, Encasement industry and other industries.
YH1000(Φ15mm)
haze meter
φ 15mm measurement diameter, large size touch operation screen, simple and convenient operation, using PD array Detector, meeting CIE V (lambda) 2 degree visual Response can achieve high-precision and repeatability Transmittance and haze measurement. USB data output device, can be docked with laboratory system.
3NH YH1000 Haze Meter φ 15mm Picture

Introduction

YH1000 haze meter (economical type) can easily implement ASTM D1003 non-compensation method, total light transmittance, haze test, and the open sample chamber can be tested vertically or horizontally, adapting to more samples to be tested. YH1000 haze meter adopts PD array Detector, which meets CIE V(λ)2-degree visual response, and compensation method measurement can realize high-precision and repeatable light transmittance and haze data measurement.

Advantages

1. Conform to ASTM standard

It can meet the test standard requirements of different users and meet the standards: ASTM D1003/1044, GB/T 2410, JJF 1303-2011, CIE 15.2, JIS K7105, JIS K7361, JIS K 7136

2. Easy to operate, faster and more accurate measurement

The YH1000 haze meter is equipped with a large-size touch screen, which is easy and convenient to operate. It adopts a PD array Detector and meets the CIE V(λ) 2-degree visual response to achieve high-precision and repeatable transmittance and haze measurements. USB data output device, can be docked with laboratory system.

3. Dynamic measurement

Independent light source Detector and temperature sensor to monitor light source and environmental changes at all times to ensure reliable test data

4. The measurement is convenient and the sample is suitable for a wide range of

Open measurement area, can be tested vertically and horizontally, adapting to more samples to be tested

5. Quality management software

Provide powerful haze and light transmittance measurement and analysis software, which is suitable for quality monitoring and tabular management of haze and light transmittance data in various industries. Dataize the user's management on the PC side, compare the differences in haze and light transmittance, and generate a test report form to facilitate customer customization and management.

Applications

YH1000 haze meter is widely used in glass processing, plastic processing, film, display processing, packaging industry, liquid medicine analysis, etc.

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
