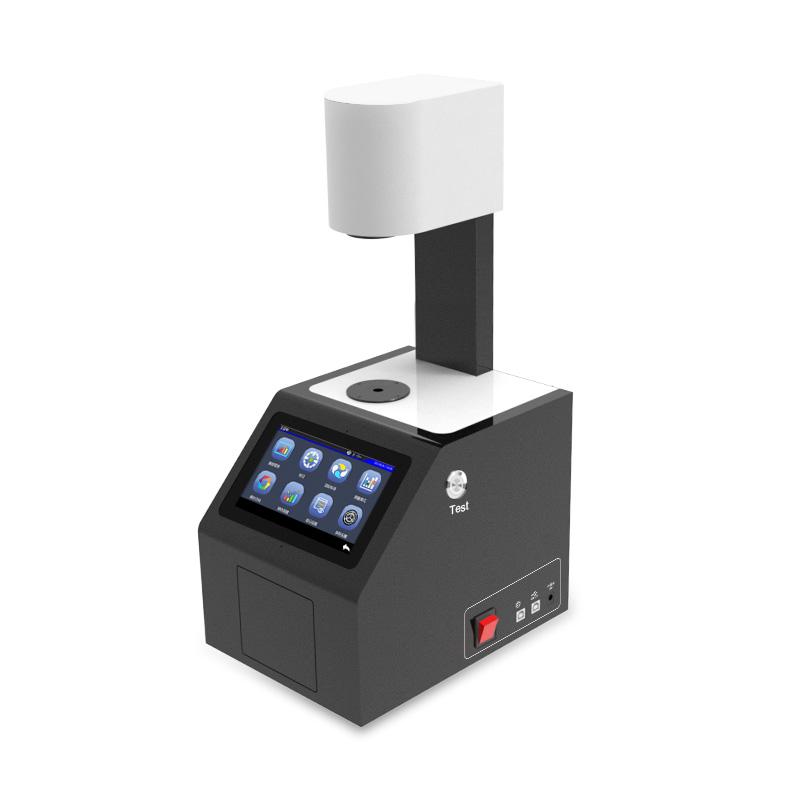

Sanenchi/3nh YH1600 Color Haze Meter φ 8mm
SE
YH1600(Φ8mm)
3NH YH1600(Φ8mm) Color haze meterSPEC
3NH YH1600(Φ8mm) Color haze meterDetails
3NH YH1600(Φ8mm) Color haze meterPacking list
- SKU
- NB035827
- Lighting method
- Transmission: 0/D (parallel light illumination, diffuse reflection reception)
- Integrating sphere size
- F154mm
- lighting source
- 400~700Nm combined LED light source (wavelength can be expanded and customized)
- Spectroscopic method
- Concave grating
- sensor
- 256-Pixel dual array CMOS image sensor
- Measurement Wavelength range
- 400~700Nm (wavelength can be expanded and customized)
- wavelength spacing
- 10nm
- Half Bandwidth
- 10nm
- Transmittance range
- 0~100%
- Measurement aperture
- F8mm
- Sample size
- Film thickness less than 170mm
- Color space
- CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy
- Color difference formula
- ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
- Other chromaticity indicators
- Haze (ASTM D1003/1044, ISO 13468), light transmitance T (ISO), light transmitance T (ASTM) WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Absorbance, Cobalt Platinum Index, Gardner Index
- Observer angle
- 2°/10°
- Observation light source
- D65,A,C,D50,D55,D75,F1,F2,F3,F4，F5，F6,F7,F8,F9，F10,F11,F12
- show
- Light spectrum diagram, sample chromatic value, color difference value/diagram, chromaticity diagram, Color simulation, pass/fail results
- Measurement time
- About 1.5s
- haze resolution
- 0.01 unit
- Haze, sexual repeability
- Φ20mm diameter, less than 0.05 (after the instrument is preheated and corrected, the standard haze sheet with a haze of about 40 is tested 30 times at an interval of 5s)
- Inter-station difference
- Φ20mm diameter, less than 0.4 (after the instrument is preheated and corrected, the standard deviation between the standard haze sheet and the reference value is tested at intervals of 5s)
- size
- Length X width X height = 290X211X511mm
- Weight
- About 7.6kg
- Power Supply
- DC 24V, 3A power adapter Power
- Lighting source life
- 5 years more than 3 million measurements
- Display
- TFT true color 7inch, capacitive touch screen
- interface
- USB, print serial port, Bluetooth
- Store data
- 5000 master standards and 20,000 samples
- language
- Simplified Chinese, Traditional Chinese, English
- Operating temperature range
- 0~40℃（32~104°F）
- Storage temperature range
- -20~50℃（-4~122°F）
- Standards
- ASTM D1003/1044,ISO 13468,ISO 14782,GB/T 2410,JJF 1303-2011,CIE 15.2,GB/T 3978,ASTM E308,JIS K7105,JIS K7361,JIS K 7136
Introduction
YH1600 color haze meter can easily implement ASTM D1003 non-compensation method, ISO 13468 compensation method, total light transmittance, haze test, and can accurately collect the transmittance curve of the transmitted sample through the precision concave grating and 256 pixel CMOS Detector. Accurately output various chromaticity data of transmitted samples, which can realize high-precision and repeatable measurement of light transmittance, haze and chromaticity data.
Advantages
1. Double standard ISO & ASTM
It can meet the test standard requirements of different users and meet the standards: ASTM D1003/1044, ISO 13468, ISO 14782, GB/T 2410, JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136
2. A variety of observation light sources
YH1600 color haze meter provides CIE LAB, XYZ, Yxy, LCh, s-RGB, βxy color space, and D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 various observation light sources can meet the special measurement requirements under different measurement conditions.
3. Easy to operate, faster and more accurate measurement
The YH1600 color haze meter is equipped with a large-size touch screen, which is easy and convenient to operate. It uses a 256-pixel dual-array CMOS image sensor to achieve high-precision and repeatable transmittance and haze measurements. USB data output device, can be docked with laboratory system.
4. With a compensation port to make the measurement data more accurate
Meet ASTM D1003 non-compensation method, ISO 13468 compensation method, total light transmittance, haze test, provide more accurate test results
5. Dynamic measurement
Independent light source Detector and temperature sensor to monitor light source and environmental changes at all times to ensure reliable test data
6. The measurement is convenient and the sample is suitable for a wide range of
Open measurement area, can be tested vertically and horizontally, adapting to more samples to be tested
7. Quality management software
Provide powerful haze, color, light transmittance measurement and analysis software, which is suitable for quality monitoring and tabular management of haze, light transmittance and color data in various industries. Dataize user management on the PC side, compare haze, light transmittance and color differences, and generate test report forms to facilitate customer customization and management.
Applications
YH1600 color haze meter is widely used in glass processing, plastic processing, film, display processing, packaging industry, liquid medicine analysis, etc.
- 1GB/T 44572-2024《Biaxially oriented polyethylene (BOPE) film》
- 2GB/T 19787-2025《Encasement material, polyolefin thermal cissing film》
- 3JJF 1303-2011《Calibration Specification for Hazemeter》
- 4JIS 《Plastics. Determination of haze for transparent materials》
- 5GB/T 27740-2011《Cast polypropylene(CPP) film》
- 6GB/T 10003-2008《Biaxially oriented polypropylene(BOPP) film for general use》
- 7GB/T 4456-2008《Polyethylene blown film for packaging applications》
- 8ASTM D1003-2021《Standard Test Method for Haze and Luminous Transmittance of Transparent Plastics》
- 9HG/T 5065-2016《Finishing varnishes for architectural coatings》
- 10HG/T 5297-2018《Diffusion composite polyethylene terephthalate(PET)film》
