JINGTIAN NDJ-5S digital display Rotational Viscometer with L0 rotor

SE
JINGTIAN NDJ-5S digital display Rotational Viscometer has four speeds, with ultra-low Viscosity adapter, can measure low Viscosity, NDJ-5S Rotational Viscometer measurement accuracy is ± 1%, measuring range 1~ 100000mPa·s.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian NDJ-5S + L0 Digital Rotational ViscometerSPEC

JingTian NDJ-5S + L0 Digital Rotational ViscometerDetails

JingTian NDJ-5S + L0 Digital Rotational ViscometerPacking list

SKU
NB035835
Measuring range
1~100000mPa·s
Rotor Specifications
L0#、L1#、L2#、L3#、L4#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
6/12/30/60rpm
Display information
Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
Speed control method
Four speed
NDJ-5S + L0
Digital Rotational Viscometer

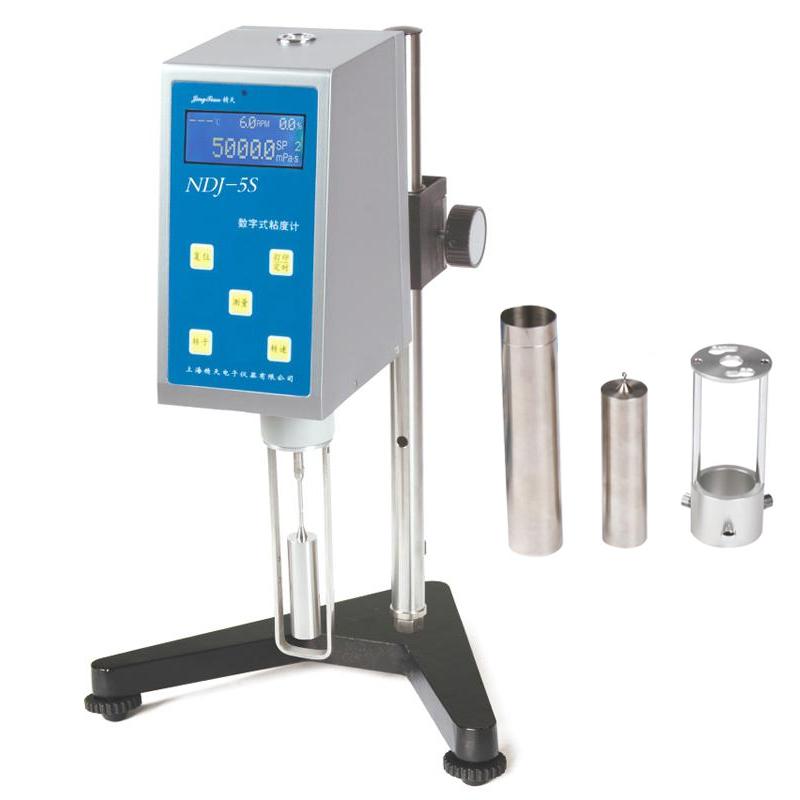

JINGTIAN NDJ-5S digital display Rotational Viscometer with L0 rotor Picture

Introduction

The LCD of Shanghai JINGTIAN NDJ-5S digital display rotary viscometer can display viscosity, speed, temperature, percentage torque, rotor number and the maximum viscosity value of the selected rotor at the current speed. It is a digital display rotary viscometer with a measuring range of 20 to 100,000 mPa·s.

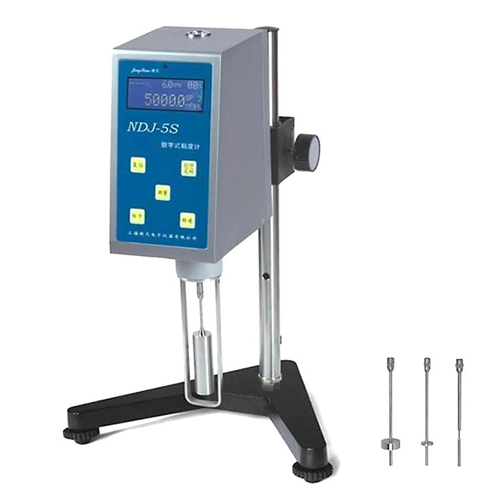

JINGTIAN NDJ-5S+L0 Digital Display Rotary Viscometer Details Figure 1

Introduction

Accurately measure ultra-low viscosity samples

Sample volume only needs 25~30mL

It can measure lower viscosity and be used with different types of viscometers

JINGTIAN NDJ-5S+L0 Digital Display Rotary Viscometer Details Figure 2

FAQ
QHello, we need a Viscometer here. I also saw related Viscometers on your website. We want to prepare a viscosity of 8mpa.s. What do you recommend? It is best to be a small one.
A It is recommended that this 5s + 0 rotor can measure 8mpa.s
QCan this Viscometer test sample viscosity at 10cp?
A Yes, No. 0 rotor is standard.
QWhat rotors is the Viscometer equipped with?
A The NDJ-5S digital display swirl/spin Viscometer is equipped with five rotors: L0 #, L1 #, L2 #, L3 #, and L4 #.
QIs this touchscreen or button?
A button
QHow does this device maintain my sample temperature?
A You need to choose a Thermostatic bath.
QCan I use this Viscometer to measure the viscosity of UV printing ink?
A The viscosity of UV printing ink is usually relatively low. Under normal circumstances, the viscosity of UV printing ink ranges from 1 to 20 mPa · s. This NDJ5s + L0 rotor can be measured.
QCan this directly get viscosity data?
A Install a 232 interface, you can use the super end point or the serial port debugging software downloaded from the Internet on the computer to receive data
QElectrolysis viscosity test, strong acid
A Strong acid can be equipped with 316 rotor.
QNeed a measurement of low viscosity Viscometer, viscosity below 10mPa.s, water-soluble glue.
A Low viscosity can consider conventional 5S + 0 rotor
QDoes this have a data collection Communication interface?
A 232 interface can be installed.
