JINGTIAN NDJ-8S Digital Rotational Viscometer with L0 rotor

SE
JINGTIAN NDJ-8S digital display Rotational Viscometer is equipped with ultra-low viscosity adapter, viscosity can reach 1mPa·s, Measurement range 1~ 2000000mPa·s, NDJ-8S digital display Rotational Viscometer can display viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian NDJ-8S+L0 Digital Rotational ViscometerSPEC

JingTian NDJ-8S+L0 Digital Rotational ViscometerDetails

JingTian NDJ-8S+L0 Digital Rotational ViscometerPacking list

SKU
NB035837
Measurement range
1~2000000mPa·s
Rotor specification
L0#、L1#、L2#、L3#、L4#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.3/0.6/1.5/3/6/12/30/60rpm
Display information
Viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed, etc
Rotation speed Control mode
Rotation speed
NDJ-8S+L0
Digital Rotational Viscometer

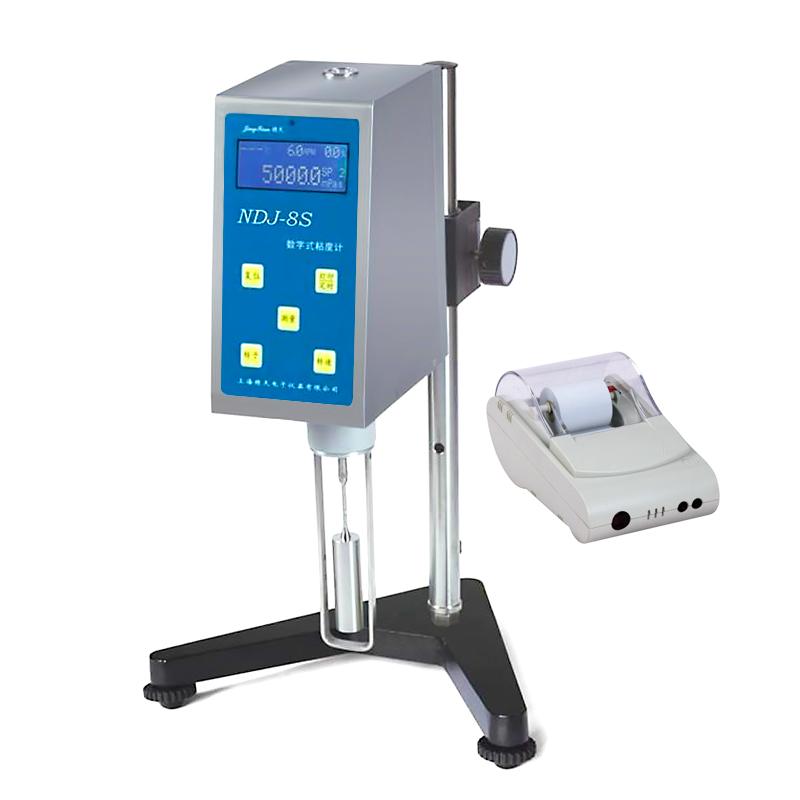

JINGTIAN NDJ-8S Digital Rotational Viscometer with L0 rotor Picture

Introduction

The LCD of JINGTIAN NDJ-8S digital display rotary viscometer can display viscosity, speed, temperature, percentile torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor, etc. It is a digital display Rotational Viscometer with a range of 20 to 2,000,000 mPa·s.

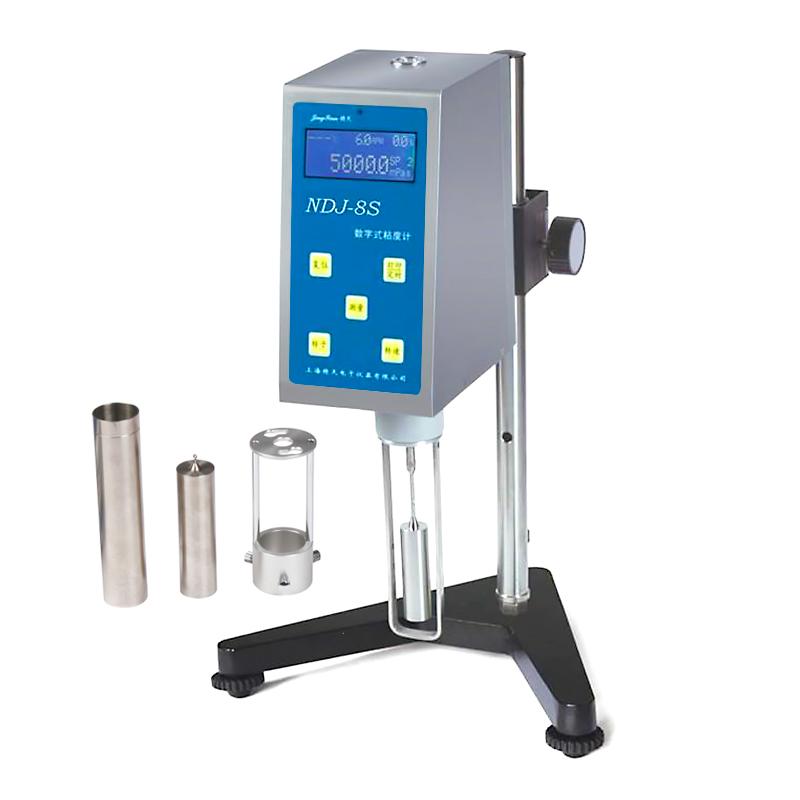

JINGTIAN NDJ-8S+L0 Digital Display Rotary Viscometer Details Figure 1

Introduction

Accurately measure ultra-low viscosity samples

Sample volume only needs 25~30mL

It can measure lower viscosity and be used with different types of viscometers

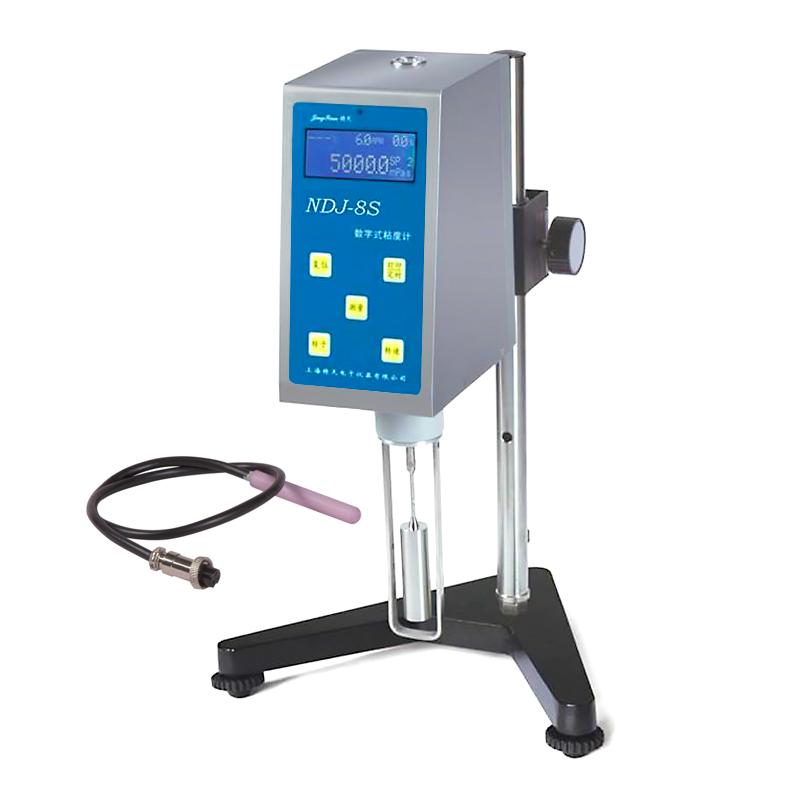

JINGTIAN NDJ-8S+L0 Digital Display Rotary Viscometer Details Figure 2

FAQ
QI need to measure viscosity at different rpm, will this Viscometer meet my needs?
A Absolutely. The NDJ-8S digital display swirl/spin Viscometer provides eight speed control, including 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 revolutions per minute (rpm), which can meet the needs of different experimental conditions.
QDoes this rotational viscometer have sample size requirements?
A The sample size that can be tested is between 25 and 30 milliliters.
QWhat is the margin of error for this Viscometer measurement?
A The NDJ-8S digital display swirl/spin Viscometer has a reproducibility of +/- 0.5% F. S and a measurement accuracy of +/- 1% F. S, ensuring the accuracy and reliability of the measurement results.
QThe viscosity of 1.0-10 needs to be measured at 23 degrees Celsius with an ultra-low viscosity adapter
A NDJ-5S + Thermostatic bath + l0 can be solved
QDoes this one need to be calibrated liquid calibrated all the time to test?
A No, the calibrating liquid is that when there is a certain error in the viscometer test on your side, you can restore the calibrating through the calibrating liquid, and it can be used normally.
QIs it okay to measure inks? My inks only have a few CPs.
A With NDJ-8S + L0 rotor, 1mPa · s can be measured.
QCan this rotational viscometer be used for ketchup viscosity testing?
A Yes, the viscosity test range of this model is 1~ 2000000cp.
QThe rotational viscometer range is about 10mpas. If you want to be more accurate, what instrument should be used?
A The viscosity is very low, and a No. 0 rotor is recommended.
QAlso, is this model a coaxial cylinder rotational viscometer? I think how is the rotor Viscometer?
A The coaxial cylinder rotational viscometer is also a kind of rotor rotational viscometer. The conventional rotor rotational viscometer, we call it "coaxial single cylinder rotational viscometer", which is a rotor extending into the material to directly test the viscosity. The coaxial cylinder Viscometer adds a set of Accessories on the basis of the standard standard Viscometer, which are usually a small number of sample adapters or ultra-low viscosity adapters, so this set is called the coaxial cylinder rotational viscometer, which is actually a coaxial binocular rotational viscometer.
QWhich Viscometer is used to measure the viscosity of peptide proteins?
A If the ratio of water should not be very viscous, or you can consider NDJ-8S plus No. 0 transfer. Or send samples for testing.
