JINGTIAN SNB-3 digital display Rotational Viscometer viscosity Detector with L0 rotor

SE
JINGTIAN SNB-3 digital display Rotational Viscometer is equipped with L0 rotor, Viscosity range is 6~ 80,000,000mPa·s, SNB-3 digital display Rotational Viscometer reproducibility ± 0.5% (FS) newtonian fluid, is a liquid crystal digital Viscometer.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

JingTian SNB-3 + L0 Digital Rotational ViscometerSPEC

JingTian SNB-3 + L0 Digital Rotational ViscometerDetails

JingTian SNB-3 + L0 Digital Rotational ViscometerPacking list

SKU
NB035840
Measuring range
6~ 80000000mPa·s
Rotor Specifications
L0#、L1#、L2#、L3#、L4#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.1~99.9rpm
Display information
Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
Speed control method
CVT
SNB-3 + L0
Digital Rotational Viscometer

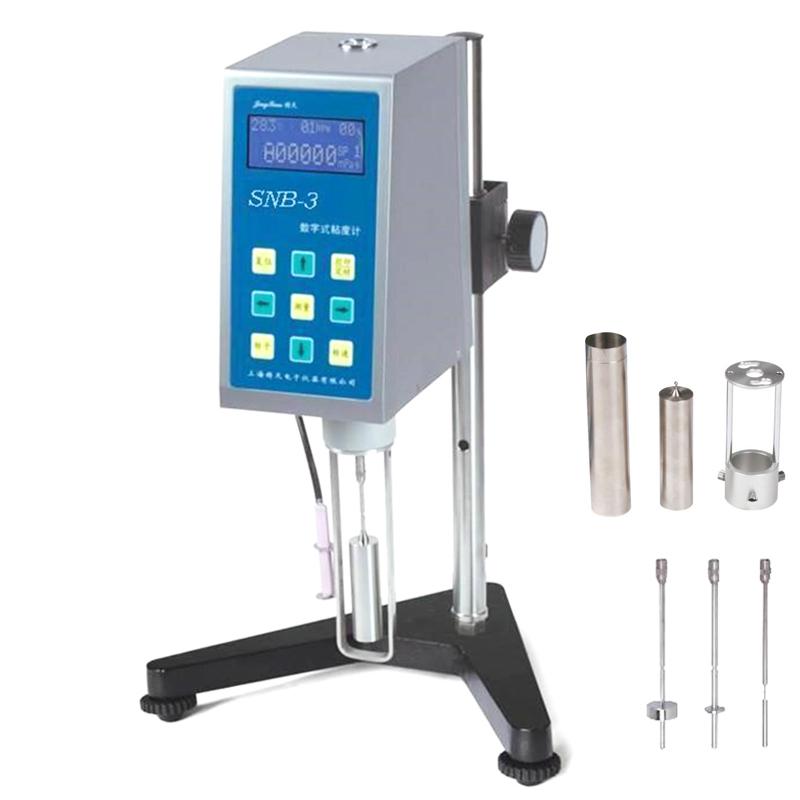

JINGTIAN SNB-3 digital display Rotational Viscometer viscosity Detector with L0 rotor Picture

Introduction

The LCD of Shanghai JINGTIAN SNB-3 digital display rotary viscometer can display viscosity, shear rate, shear stress, speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current speed. Viscosity value etc. It is a digital display rotary viscometer with a measuring range of 160 to 80,000,000 mPa·s .

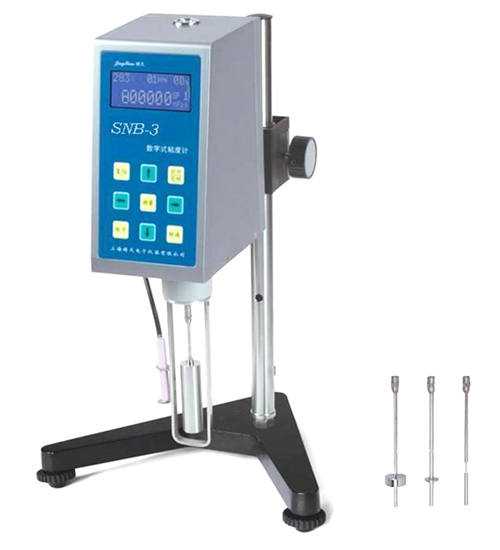

JINGTIAN SNB-3+L0 Digital Display Rotary Viscometer Details Figure 1

Introduction

Accurately measure ultra-low viscosity samples

Sample volume only needs 25~30mL

It can measure lower viscosity and be used with different types of viscometers

JINGTIAN SNB-3+L0 Digital Display Rotary Viscometer Details Figure 2

FAQ
QWhich model is suitable for the green oil viscosity test on the printing circuit board?
A SNB-3 rotational viscometer can.
QHow to control the measurement accuracy of liquid viscosity?
A The model Viscometer can be measured, viscosity accuracy can refer to the specification parameters. When measuring, please measure at the same constant temperature, temperature has a great impact on viscosity, it is recommended to match Thermostat to ensure that the measured fluid temperature is constant, the measurement accuracy will be higher.
QDoes the Viscometer meet the specifications of SN/T2903?
A Model SNB-3 + L0 Viscometer Compliant
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
