JINGTIAN LVDV-1 digital Rotational Viscometer viscosity Measurement Instrument with L0 rotor

SE
JINGTIAN LVDV-1 digital display Rotational Viscometer measurement accuracy ± 1%, reproducibility ± 0.5%, with L0 rotor, LVDV-1 digital display Rotational Viscometer can display Viscosity, shear rate, shear stress, speed, temperature, percentile torque, rotor number.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian LVDV-1 + L0 Digital Rotational ViscometerSPEC

JingTian LVDV-1 + L0 Digital Rotational ViscometerDetails

JingTian LVDV-1 + L0 Digital Rotational ViscometerPacking list

SKU
NB035842
Measuring range
0.6~6000000mPa·s
Rotor Specifications
L0#、L1#、L2#、L3#、L4#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.1~99.9rpm
Display information
Viscosity, rotational speed, temperature, percentile torque, rotor number and the maximum Viscosity value that can be measured at the current rotational speed of the selected rotor, etc
Speed control method
CVT
LVDV-1 + L0
Digital Rotational Viscometer
JINGTIAN LVDV-1 digital Rotational Viscometer viscosity Measurement Instrument with L0 rotor Picture

Introduction

The LCD of Shanghai JINGTIAN LVDV-1 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current rotational speed. Viscosity value etc. It is a digital display rotary viscometer with a measuring range of 12 to 6,000,000 mPa·s.

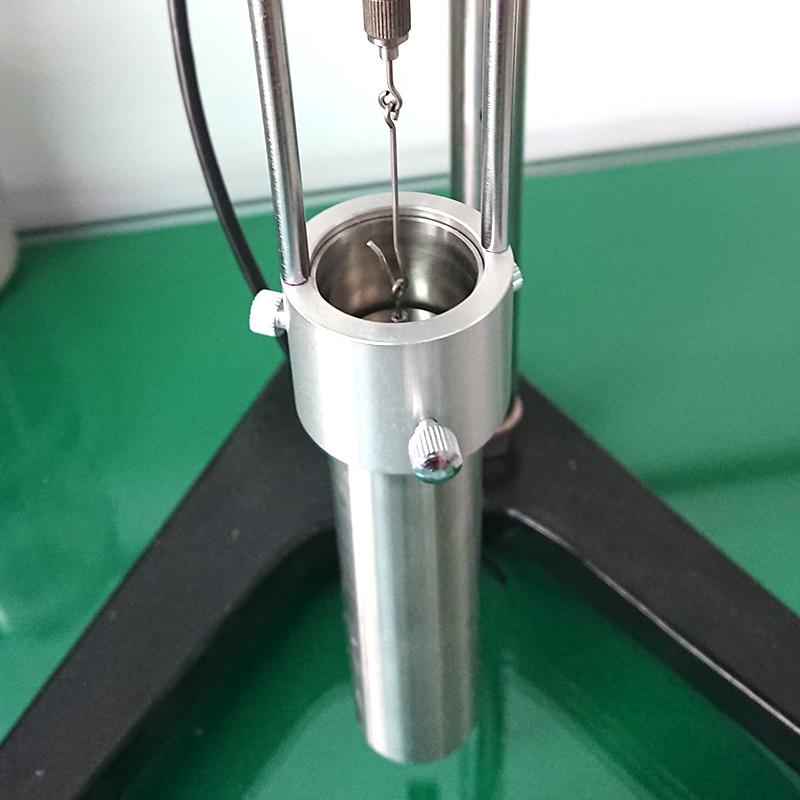

Details of JINGTIAN LVDV-1+L0 Digital Display Rotary Viscometer 1

Introduction

Accurately measure ultra-low viscosity samples

Sample volume only needs 25~30mL

It can measure lower viscosity and be used with different types of viscometers

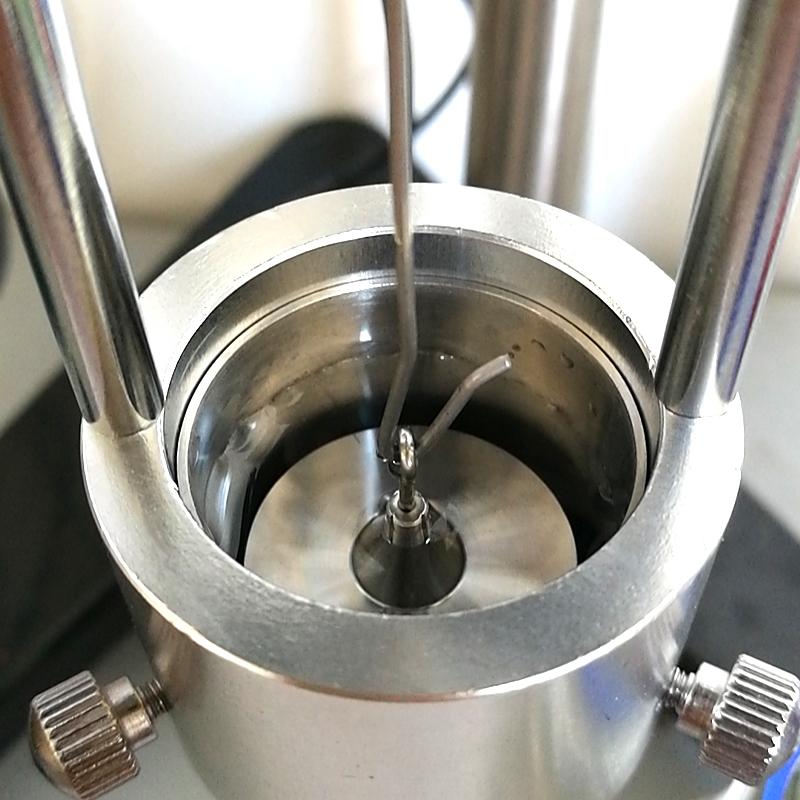

Details of JINGTIAN LVDV-1+L0 Digital Display Rotary Viscometer 2

FAQ
QRVDV-1 Can this Viscometer measure the viscosity of 3.5-5 mPa.s?
A Use the LVDV-1 model with the L0 rotor.
QAlso, is this model a coaxial cylinder rotational viscometer? I think how is the rotor Viscometer?
A The coaxial cylinder rotational viscometer is also a kind of rotor rotational viscometer. The conventional rotor rotational viscometer, we call it "coaxial single cylinder rotational viscometer", which is a rotor extending into the material to directly test the viscosity. The coaxial cylinder Viscometer adds a set of Accessories on the basis of the standard standard Viscometer, which are usually a small number of sample adapters or ultra-low viscosity adapters, so this set is called the coaxial cylinder rotational viscometer, which is actually a coaxial binocular rotational viscometer.
QDoes this Viscometer meet the SY/T0522 standard?
A This Viscometer is suitable for SY/T0522. Please consult customer service for detailed application definition.
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
