JINGTIAN HBDV-1 Digital Rotational Viscometer Viscometer with L0 rotor

SE
JINGTIAN HBDV-1 Digital Rotational Viscometer viscosity range of 640~320000000mPa·s, accuracy of +/- 1% FS, HBDV-1 viscosity Tester standard R2, R3, R4, R5, R6, R7 six rotors. Can be applied to a variety of industrial viscosity determination
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian HBDV-1+L0 Digital Rotational ViscometerSPEC

JingTian HBDV-1+L0 Digital Rotational ViscometerDetails

JingTian HBDV-1+L0 Digital Rotational ViscometerPacking list

SKU
NB035844
Measurement range
50~320000000mPa·s
Rotor specification
1 piece each of rotors L0, R2, R3, R4, R5, R6 and R7
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.1~99.9rpm
Display information
Viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed, etc
Rotation speed Control mode
Continuously variable speed
HBDV-1+L0
Digital Rotational Viscometer
JINGTIAN HBDV-1 Digital Rotational Viscometer Viscometer with L0 rotor Picture

Introduction

The LCD of Shanghai JINGTIAN HBDV-1 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current rotational speed. Viscosity value etc. It is a digital display Rotational Viscometer with a range of 640 to 320,000,000 mPa·s .

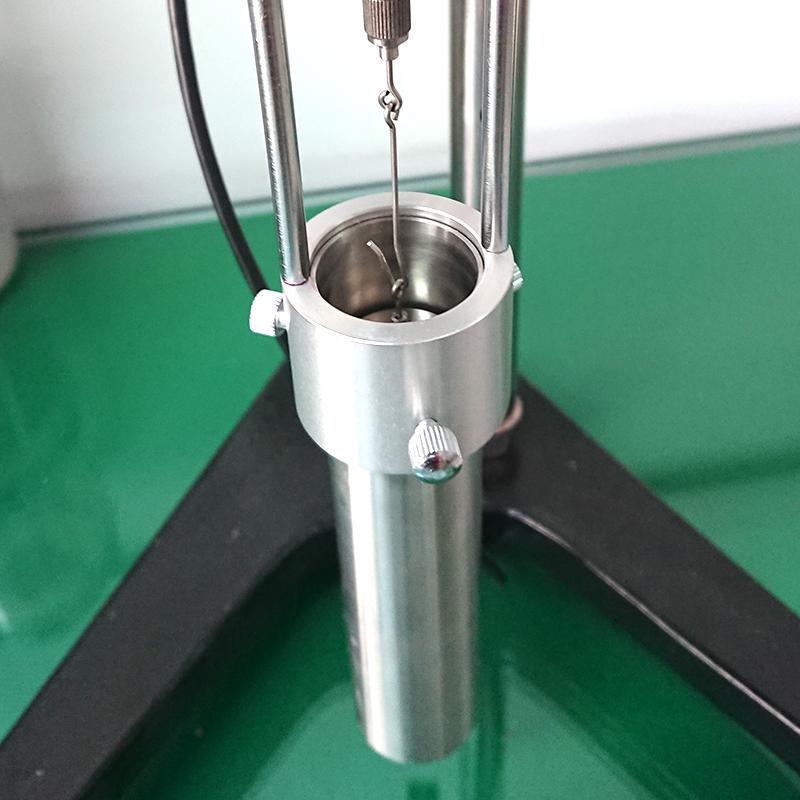

JINGTIAN HBDV-1+L0 Digital Display Rotary Viscometer Details Figure 1

Introduction

Accurately measure ultra-low viscosity samples

Sample volume only needs 25~30mL

It can measure lower viscosity and be used with different types of viscometers

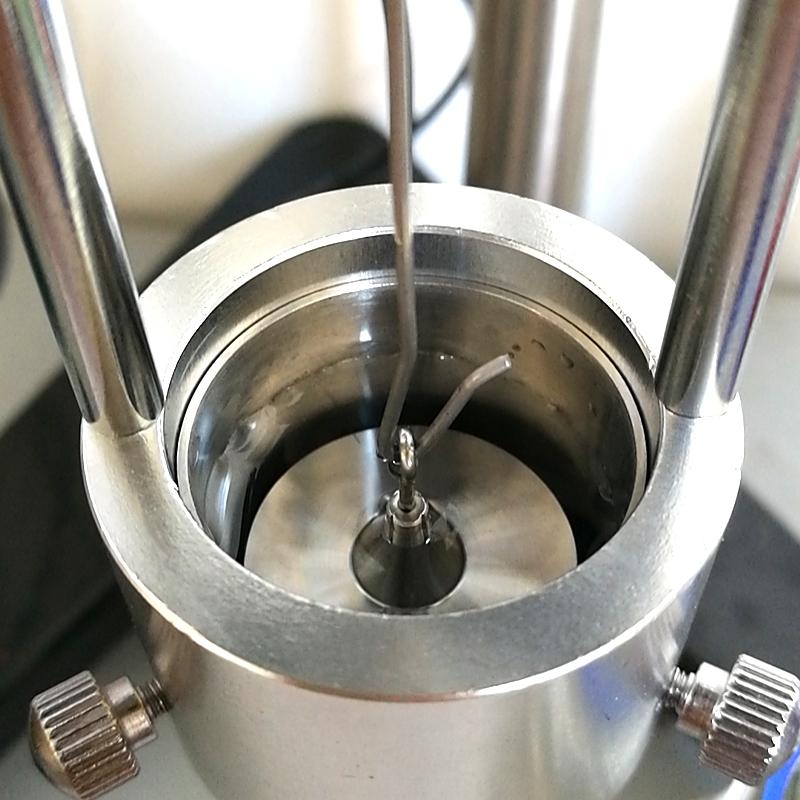

JINGTIAN HBDV-1+L0 Digital Display Rotary Viscometer Details Figure 2

FAQ
QColloidal, viscosity range 10,000 or so, this one is OK?
A What kind of glue? Glues are all non-newtonian fluids, which are related to Measurement conditions. You need to ask a little more carefully.
QHelp me find a Viscometer that meets the SY/T0522 standard.
A This HBDV-1 + L0 Viscometer is fine!
QIs there any application difference between RVDV and HBDV? It is used on colloids.
A RVDV can measure sealant, silicone, nail-free glue, etc., HBDV can measure silicone rubber, Glass glue and other more viscous
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
