JINGTIAN SNB-2 digital Rotational Viscometer with small sample adapter

SE
JINGTIAN SNB-2 digital Rotational Viscometer with a small amount of sample adapter, easy to disassemble and clean, SNB-2 digital Rotational Viscometer reproducibility +/- 0.5%, Measurement accuracy +/- 1%.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

JingTian SNB-2+SSA Digital Rotational ViscometerSPEC

JingTian SNB-2+SSA Digital Rotational ViscometerDetails

JingTian SNB-2+SSA Digital Rotational ViscometerPacking list

SKU
NB035873
Measurement range
12~6000000mPa·s
Rotor specification
L1, L2, L3, L4, 21 #, 27 #, 28 #, 29 #rotors 1 piece each
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.1~99.9rpm
Display information
Viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed, etc
Capacity
10~20mL
Rotation speed Control mode
Continuously variable speed
SNB-2+SSA
Digital Rotational Viscometer
JINGTIAN SNB-2 digital Rotational Viscometer with small sample adapter Picture

Introduction

The LCD of Shanghai JINGTIAN SNB-2 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current rotational speed. Viscosity value etc. It is a digital display rotary viscometer with a measuring range of 12 to 6,000,000 mPa·s.

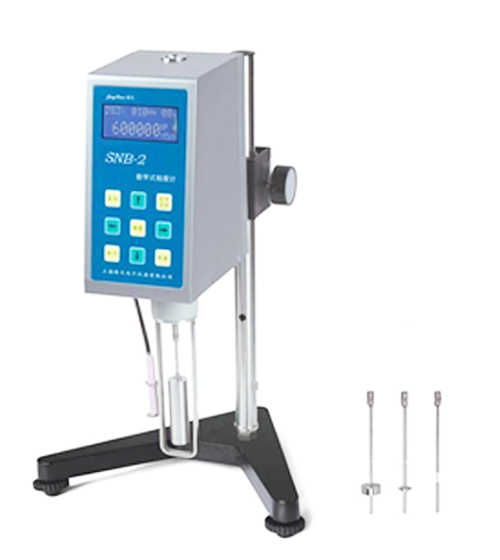

JINGTIAN SNB-2+SSA Digital Display Rotary Viscometer Details Figure 1

Introduction to Small Sample Adapters

  • With 21, 27, 28, 29 rotors each one

  • Small sample volume, only 10-20mL, especially suitable for expensive sample testing

  • A constant temperature bath connected with external circulation function can control the temperature of the tested sample

  • Easy to disassemble and clean

JINGTIAN SNB-2+SSA Digital Display Rotary Viscometer Details Figure 2

Viscometer structure diagram

JINGTIAN SNB-2+SSA Digital Display Rotary Viscometer Details Figure 3

FAQ
QCan Viscometer's small sample adapter do 5ml?
A No, the minimum is 10ml.
QCan the SNB-2 Digital Viscometer directly test the temperature of the sample?
A Yes, it comes standard with a temperature sensor.
QWhat is the minimum sample size for a swirl/spin Viscometer?
A This one comes with a small amount of sample adapter, and only needs 10~ 20ml.
QDoes SSA have cash sales?
A SSA is a small number of sample adapters, including No. 21, 27, 28, 29, which need to be calibrated after selection, 2-3 working days.
QMeasure gel viscosity, but the sample volume is not large, you need to use a small sample adapter, the detection range is less than 100,000, and the temperature is about 37 degrees. Is there a suitable Viscometer suggestion for this?
A For the conventional SNB series, just install a small sample adapter, which needs to be used with Thermostatic bath.
QThe same rotor test liquid viscosity, but set different Rotation speed measurement of the same liquid, the measured viscosity is different What is the reason?
A This is the reason for non-Newtonian liquids. Rotation speed, stator and rotor, temperature, and some special samples also need to determine the measurement time. This requires users to refer to industry measurement standards
QCan Shanghai JINGTIAN SNB-2 + SSA Viscometer meet the GB/T22427.7 standard?
A Applicable, you can consult the customer service of the mall for details about the GB/T22427.7 standard.
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
