JINGTIAN HBDV-1 digital display Rotational Viscometer with a small number of sample adapters

SE
JINGTIAN HBDV-1 digital display Rotational Viscometer measuring range 80~40,000,000mPa·s, reproducibility ± 0.5%, HBDV-1 digital display Rotational Viscometer with a small amount of sample adapter, capacity 10~20mL.
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian HBDV-1 + SSA Digital Rotational ViscometerSPEC

JingTian HBDV-1 + SSA Digital Rotational ViscometerDetails

JingTian HBDV-1 + SSA Digital Rotational ViscometerPacking list

SKU
NB035877
Measuring range
80~40,000,000mPa·s (with 0 #rotor Viscosity can reach 1mPa·s)
Rotor Specifications
R2、R3、R4、R5、R6、R7、21#、27#、28#、29#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.1~99.9rpm
Display information
Viscosity, rotational speed, temperature, percentile torque, rotor number and the maximum Viscosity value that can be measured at the current rotational speed of the selected rotor, etc
Capacity
10~20mL
Speed control method
CVT
HBDV-1 + SSA
Digital Rotational Viscometer

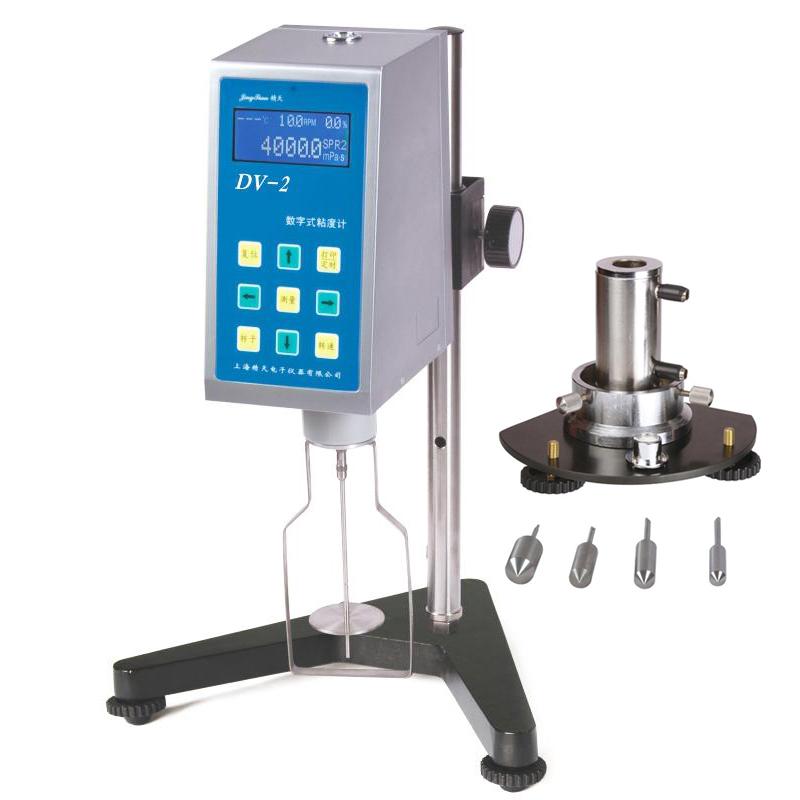

JINGTIAN HBDV-1 digital display Rotational Viscometer with a small number of sample adapters Picture

Introduction

The LCD of Shanghai JINGTIAN RVDV-1 digital display rotary viscometer can display viscosity, shear rate, shear stress, speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current speed. Viscosity value etc. It is a digital display rotary viscometer with a measuring range of 80 to 40,000,000 mPa·s .

JINGTIAN HBDV-1+SSA Digital Display Rotary Viscometer Details Figure 1

Introduction to Small Sample Adapters

  • With 21, 27, 28, 29 rotors each one

  • Small sample volume, only 10-20mL, especially suitable for expensive sample testing

  • A constant temperature bath connected with external circulation function can control the temperature of the tested sample

  • Easy to disassemble and clean

JINGTIAN HBDV-1+SSA Digital Display Rotary Viscometer Details Figure 2

Viscometer structure diagram

JINGTIAN HBDV-1+SSA Digital Display Rotary Viscometer Details Figure 3

FAQ
QColloidal, viscosity range 10,000 or so, this one is OK?
A What kind of glue? Glues are all non-newtonian fluids, which are related to Measurement conditions. You need to ask a little more carefully.
QThe same rotor test liquid viscosity, but set different Rotation speed measurement of the same liquid, the measured viscosity is different What is the reason?
A This is the reason for non-Newtonian liquids. Rotation speed, stator and rotor, temperature, and some special samples also need to determine the measurement time. This requires users to refer to industry measurement standards
QDo you have the Viscometer involved in ASTMD3794?
A The HBDV-1 + SSA Viscometer will do
QIs there any application difference between RVDV and HBDV? It is used on colloids.
A RVDV can measure sealant, silicone, nail-free glue, etc., HBDV can measure silicone rubber, Glass glue and other more viscous
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
