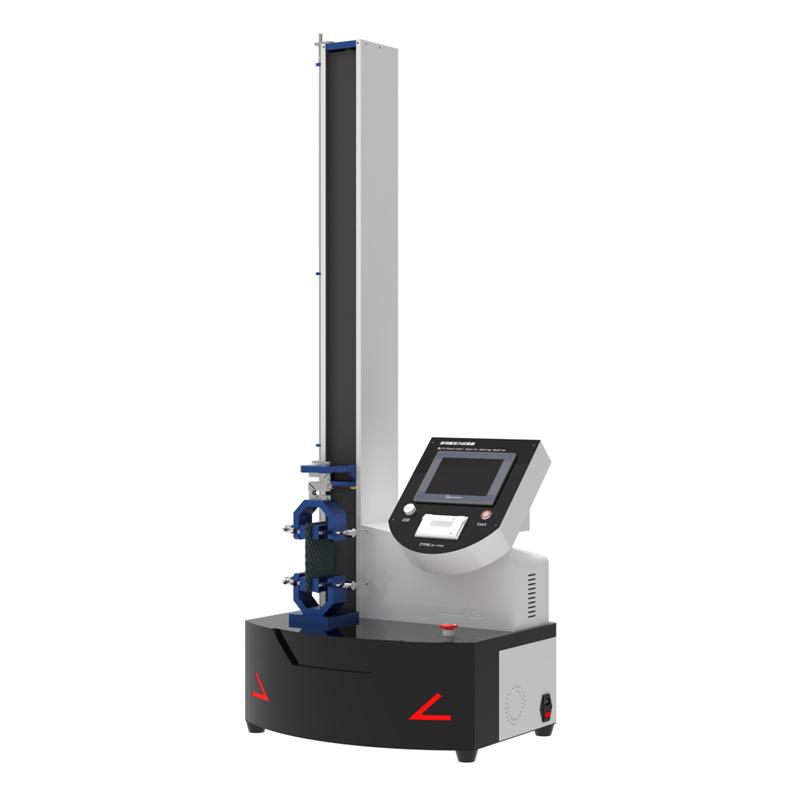

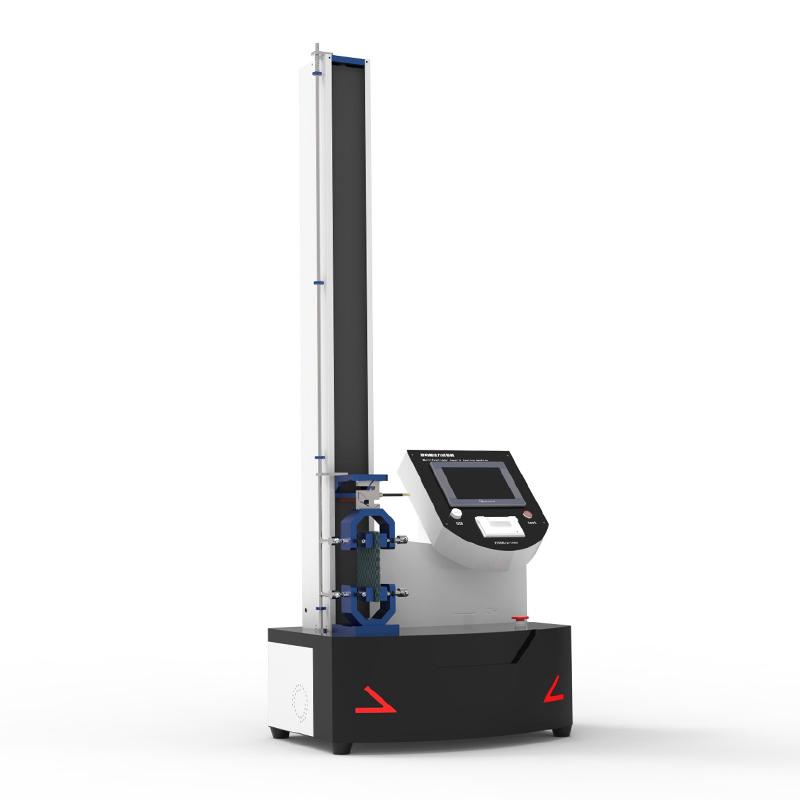

Huitao CSI-239 Powerful Machine (Computer Version)

CSI-239

Powerful Machine (Computer Version)

Application

YG026H multi-functional electronic fabric strength Tester can use different fixtures and accessories to achieve different functions, mainly used for breaking stretch, tearing, peeling, marble bursting, constant elongation, constant load and repeated stretching of various textiles. Suture slippage, seam strength, single yarn strength, sample grab strength, compression function, binding strength, heel binding strength and other mechanical performance tests, and widely used in building materials, aerospace, machinery manufacturing, wire and cable, rubber plastics, home appliances and Force value, elongation and deformation tests of tensile, peeling, tearing, bursting, bending, bonding, creep and other tests of geotechnical materials. It is a satisfactory test equipment for scientific research institutions, colleges, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments

Standards

GB8687 GB/T3923.1/2 GB/T13772.1/2/3, ASTM D5035, ASTM D5034 ASTM D434 ASTM D2261, ASTM D4964, ASTM D3936, ASTM D5587, ISO13934.1/2, ISO13935.1/2, ISO4606 ISO9073.3/4, FZ/T20019, FZ/T70006, FZ/T01085, FZ/T01030, FZ/T70007, JIS L1093, BS DIN, etc.

Instrument characteristics

• Highly sensitive touch interface, easier operation experience

• During the test process, the curve, strength, elongation, elongation rate, time, etc. can be dynamically displayed in real time, and Chinese and English interface can also be exchanged to provide guarantee for dealers doing import and export trade.

• Full digital control system, 32-bit microcontroller, data sampling frequency is 2000Hz

• The gantry-type double-column frame adopts the method of high-precision preloaded ball screw + optical axis, which ensures more stable operation of the machine and more accurate stress and strain values.

• It can be connected with computer software to control machine operation and data processing, generate data reports, curves, etc., for archiving and viewing.

• Various functions can be customized through software, and can easily cope with various standard updates and upgrades.

software function

1. Parameter setting, sample number, range, speed, standard, batch, temperature, humidity and other parameters can be set by yourself and stored in the test report

2. During the test process, the curve can be dynamically displayed in real time, and curves such as strength to elongation, strength to elongation, strength to time, and elongation to time can be selected according to user needs.

3. Curve point-by-point traversal function: You can click the strength and elongation value on the curve with the mouse to obtain various parameters of each point.

4. Result comparison function: multiple test curves can be observed at the same time, and the comparison of the characteristics of the samples to be analyzed can be realized through the superposition and local amplification of multiple curves

5. The test data report can be converted into an EXCEL file and saved in the computer.

6. The test curve can also be saved to the computer for filing and query.

7. A variety of test units can be converted, such as N, cN, Kgf, Lbf, In, etc.

8. The independent software development system can be upgraded free of charge according to the standard, so that your machine will not be outdated.

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
