JINGTIAN NDJ-5S digital display Rotational Viscometer standard printer

SE
JINGTIAN NDJ-5S digital display Rotational Viscometer measuring range 20~100000mPa·s, reproducibility ± 0.5%, measurement accuracy ± 1%, NDJ-5S digital display Rotational Viscometer is equipped with a printer, can print temperature, rotor, speed, viscosity value and percentile torque, etc.
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian NDJ-5S + Printer Digital Rotational ViscometerSPEC

JingTian NDJ-5S + Printer Digital Rotational ViscometerDetails

JingTian NDJ-5S + Printer Digital Rotational ViscometerPacking list

SKU
NB035923
Measuring range
20~100000mPa·s (with 0 #rotor Viscosity can reach 1mPa·s)
Rotor Specifications
L1#、L2#、L3#、L4#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
6/12/30/60rpm
Display information
Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
Print content
Temperature, rotor, rotational speed, viscosity value and percent meter torque, etc
Speed control method
Four speed
NDJ-5S + Printer
Digital Rotational Viscometer

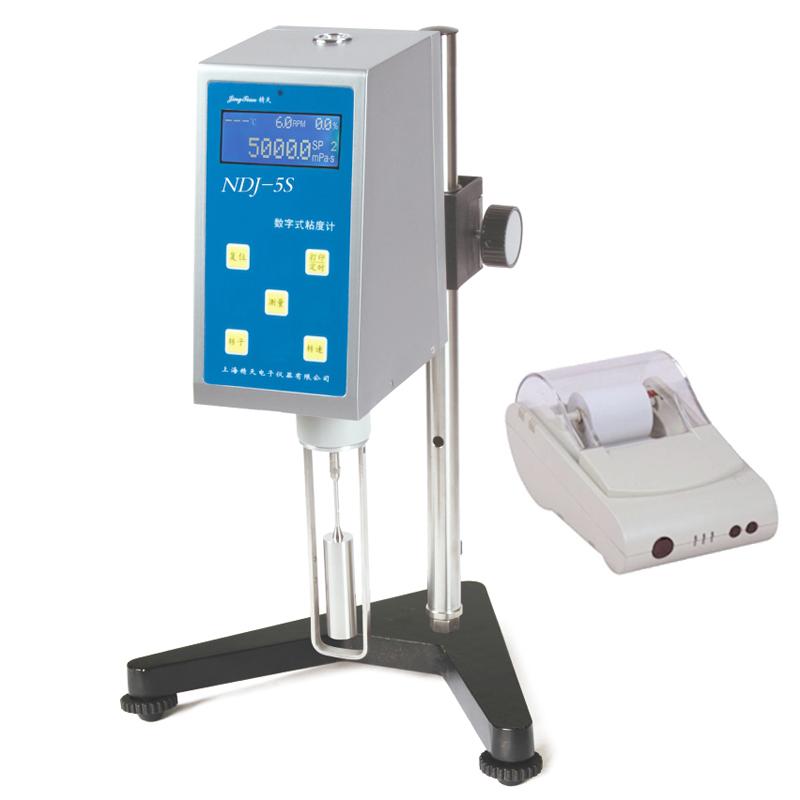

JINGTIAN NDJ-5S digital display Rotational Viscometer standard printer Picture

Introduction

The LCD of JINGTIAN NDJ-5S digital display rotary viscometer can display viscosity, speed, temperature, percentile torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor, etc. It is a digital display rotary viscometer with a measuring range of 20 to 100,000 mPa·s.

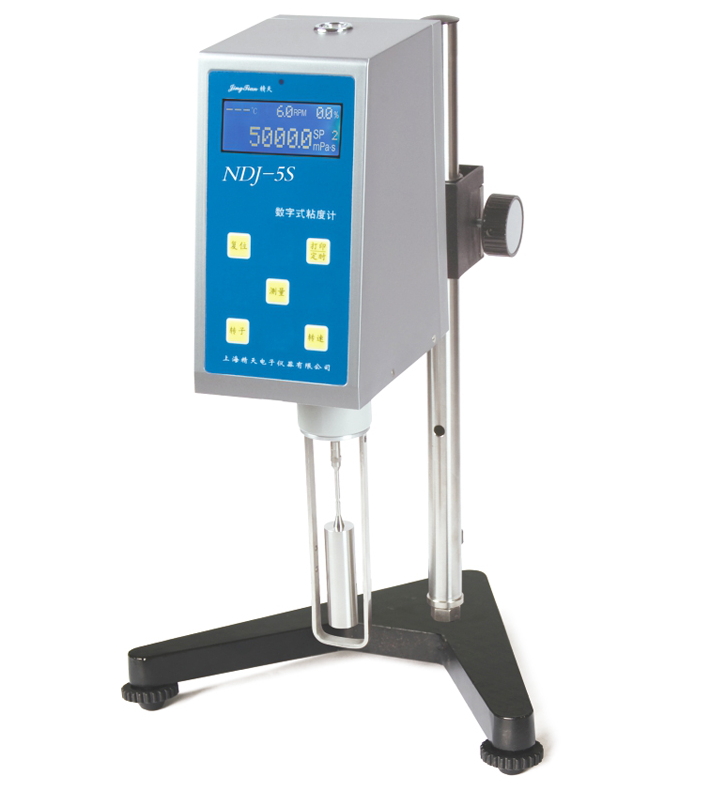

JINGTIAN NDJ-5S+Printer Digital Display Rotary Viscometer Details Figure 1

Printer Introduction

Miniature monochrome dot matrix printer for data capture

The printed content includes temperature, rotor, speed, viscosity value and percentage torque, etc.

random standard configuration

JINGTIAN NDJ-5S+ printer digital display rotary viscometer details Figure 2

FAQ
QDoes this have a data collection Communication interface?
A 232 interface can be installed.
QMeasurement range 1-10000 centipoise measurement substances are mainly isocyanate polyols
A If the minimum viscosity is not less than 20mPa.s, NDJ-5S should be fine.
QThe same rotor test liquid viscosity, but set different Rotation speed measurement of the same liquid, the measured viscosity is different What is the reason?
A This is the reason for non-Newtonian liquids. Rotation speed, stator and rotor, temperature, and some special samples also need to determine the measurement time. This requires users to refer to industry measurement standards
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
