JINGTIAN NDJ-8S digital display Rotational Viscometer standard printer

SE
JINGTIAN NDJ-8S digital display Rotational Viscometer measuring range 20~2000000mPa·s, reproducibility ± 0.5%, NDJ-8S digital display Rotational Viscometer is suitable for paint, Adhesive, food, Printing ink, Adhesive and other Viscosity tests.
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian NDJ-8S + Printer Digital Rotational ViscometerSPEC

JingTian NDJ-8S + Printer Digital Rotational ViscometerDetails

JingTian NDJ-8S + Printer Digital Rotational ViscometerPacking list

SKU
NB035924
Measuring range
20~200000mPa·s (with 0 #rotor Viscosity can reach 1mPa·s)
Rotor Specifications
L1#、L2#、L3#、L4#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.3/0.6/1.5/3/6/12/30/60rpm
Display information
Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
Print content
Temperature, rotor, rotational speed, viscosity value and percent meter torque, etc
Speed control method
Eight speed
NDJ-8S + Printer
Digital Rotational Viscometer

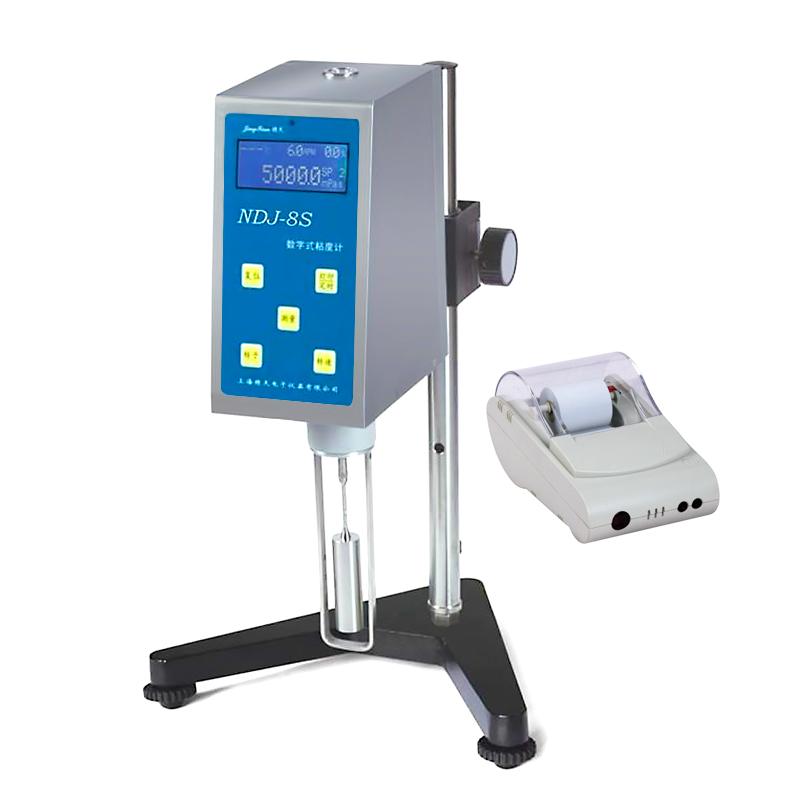

JINGTIAN NDJ-8S digital display Rotational Viscometer standard printer Picture

Introduction

The LCD of JINGTIAN NDJ-8S digital display rotary viscometer can display viscosity, speed, temperature, percentile torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor, etc. It is a digital display Rotational Viscometer with a range of 20 to 2,000,000 mPa·s.

JINGTIAN NDJ-8S+ printer digital display rotary viscometer details Figure 1

Printer Introduction

Miniature monochrome dot matrix printer for data capture

The printed content includes temperature, rotor, speed, viscosity value and percentage torque, etc.

random standard configuration

JINGTIAN NDJ-8S+ printer digital display rotary viscometer details Figure 2

FAQ
QMeasurement substances are mainly isocyanate, polyol, viscosity about 10000 centipoise can be measured?
A OK
Q1~ 200,000 Viscometer for measuring cellulose, emulsion and other Viscometer recommendations
A If the viscosity is 200,000, choose NDJ-8S
QCan this Viscometer measure the viscosity of phenolic resins?
A The viscosity of phenolic resins can be measured using the Viscometer. The Viscometer is a widely used instrument for measuring the viscosity of liquids, not only for phenolic resins but also for many Miscellaneous types of liquids. Phenolic resin is also a liquid whose viscosity is related to factors such as its concentration, temperature, molecular weight, etc. The viscosity of phenolic resins can be accurately measured using the Viscometer.
QThe same rotor test liquid viscosity, but set different Rotation speed measurement of the same liquid, the measured viscosity is different What is the reason?
A This is the reason for non-Newtonian liquids. Rotation speed, stator and rotor, temperature, and some special samples also need to determine the measurement time. This requires users to refer to industry measurement standards
QCan I get the limit value?
A This effective range is 10-90%.
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
