JINGTIAN SNB-3 solder paste digital display Rotational Viscometer standard printer

SE
Range 160~80000000mPa·s, reproducibility ± 0.5%, measurement accuracy ± 1%, with printer, can print temperature, rotor, speed, viscosity value and percentimeter torque.
Certificate
Contact
Details SPEC CAT OI
Similar products

JingTian SNB-3 + Printer Digital Rotational ViscometerSPEC

JingTian SNB-3 + Printer Digital Rotational ViscometerDetails

JingTian SNB-3 + Printer Digital Rotational ViscometerPacking list

SKU
NB035927
Measuring range
160~80,000,000mPa·s (with 0 #rotor Viscosity can reach 1mPa·s)
Rotor Specifications
L1#、L2#、L3#、L4#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.1~99.9rpm
Display information
Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
Print content
Temperature, rotor, rotational speed, viscosity value and percent meter torque, etc
Speed control method
CVT
SNB-3 + Printer
Digital Rotational Viscometer
Range 160~80000000mPa·s, reproducibility ± 0.5%, measurement accuracy ± 1%, with printer, can print temperature, rotor, speed, viscosity value and percentimeter torque.

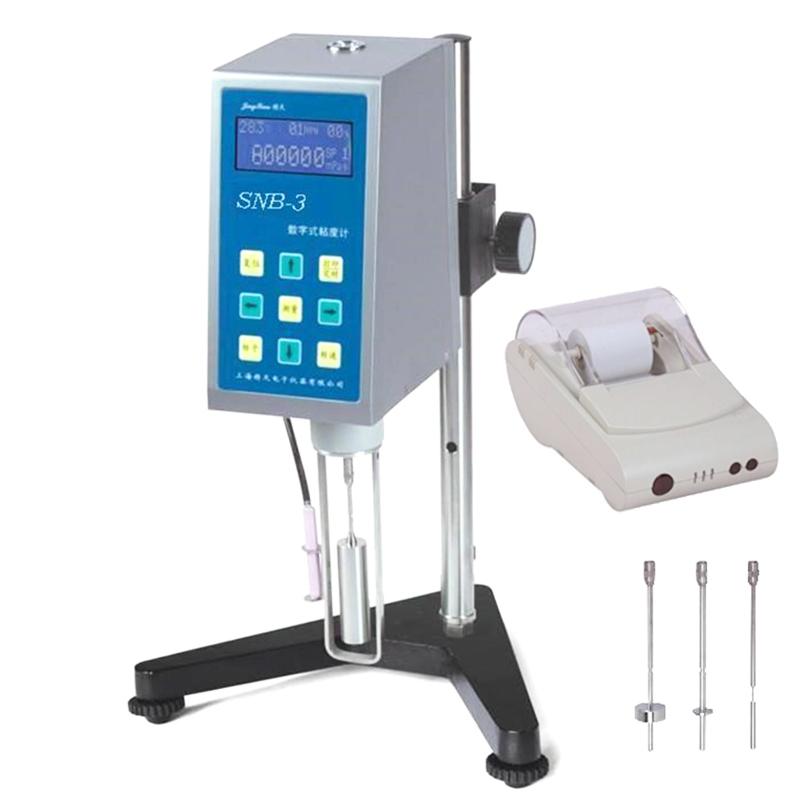

JINGTIAN SNB-3 solder paste digital display Rotational Viscometer standard printer Picture

Introduction

The LCD of Shanghai JINGTIAN SNB-3 digital display rotary viscometer can display viscosity, shear rate, shear stress, speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current speed. Viscosity value etc. It is a digital display rotary viscometer with a measuring range of 160 to 80,000,000 mPa·s .

JINGTIAN SNB-3+ printer digital display rotary viscometer details Figure 1

Printer Introduction

Miniature monochrome dot matrix printer for data capture

The printed content includes temperature, rotor, speed, viscosity value and percentage torque, etc.

random standard configuration

JINGTIAN SNB-3+ printer digital display rotary viscometer details Figure 2

FAQ
QCan I link this printer to what I usually use to print A4 paper?
A If it is not equipped with the "data collection analysis and drawing" software, you can use the serial port debugging software to connect to the computer, and watch the video for the effect. The video can be sent to you by adding our WeChat.
QThe same rotor test liquid viscosity, but set different Rotation speed measurement of the same liquid, the measured viscosity is different What is the reason?
A This is the reason for non-Newtonian liquids. Rotation speed, stator and rotor, temperature, and some special samples also need to determine the measurement time. This requires users to refer to industry measurement standards
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
