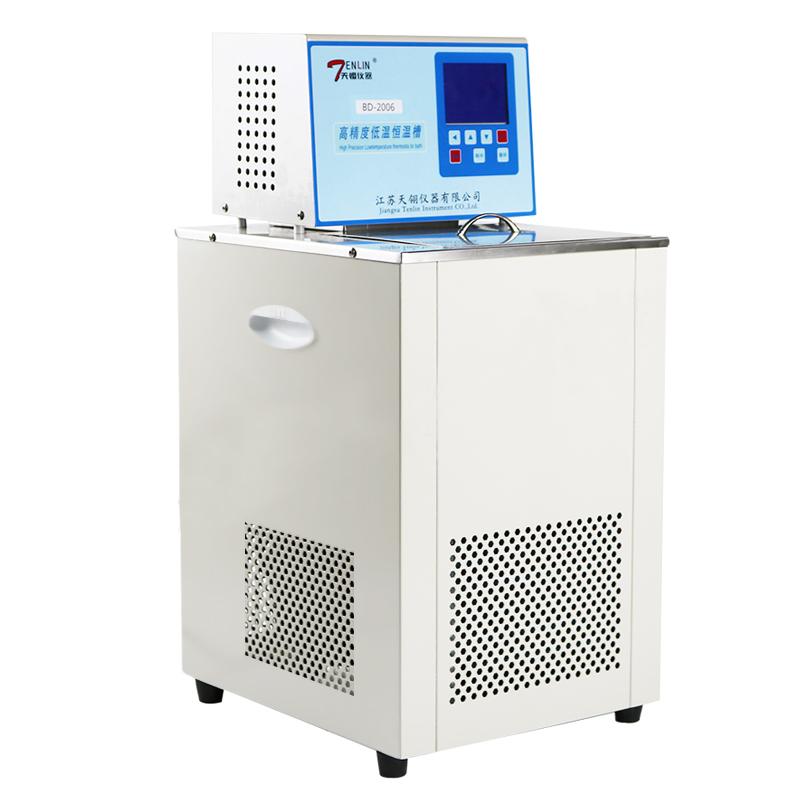

TENLIN BD-2006 High Accuracy Low Temperature Circulating Bath - 20 ℃/ +/- 0.01 ℃ 6L

BD-2006

High Accuracy Low Temperature Circulating Bath

-20~ 100 ℃, Temperature resolution 0.001 ℃, 1kw, Tank volume 6L, Tank opening dimensions 180 * 150mm, groove depth 150mm, circulation mode domestic circulation.

Features

1. Refrigeration system: It adopts low-noise air-cooled hermetic compressor unit, which has the advantages of fast refrigeration speed and strong temperature stability.

2. Control system: new special software research and development of self-made temperature control technology, equipped with high-standard Pt100 and all imported electronic components.

3. Circulation system: It is composed of internal and external circulation. During the external circulation, the constant temperature liquid in the tank can be introduced outside, and a second constant temperature field can be established. It can also be used as a cold source to guide the refrigerated liquid in the tank to the external experimental container to cool down. When circulating, the temperature of the liquid in the tank can be very uniform and stable.

4. Protection system: Refrigeration has overheating and overcurrent protection. The control system has functions such as over-temperature chirp alarm, upper and lower limits of temperature can be set for over-temperature alarm temperature, and the load can be automatically cut off when over-temperature.

5. High-end large LCD control instrument, easy to operate, strong temperature stability, PID can be automatically searched or manually adjusted.

6. The accurate temperature correction function can reach 0.01°C, and the temperature fluctuation can reach up to ±0.005-0.01°C (depending on the model).

external structure

Figure 1: Outline structure of constant temperature bath

Figure 2: Bath control panel

Model parameters

Packing list：host X1, cover X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
