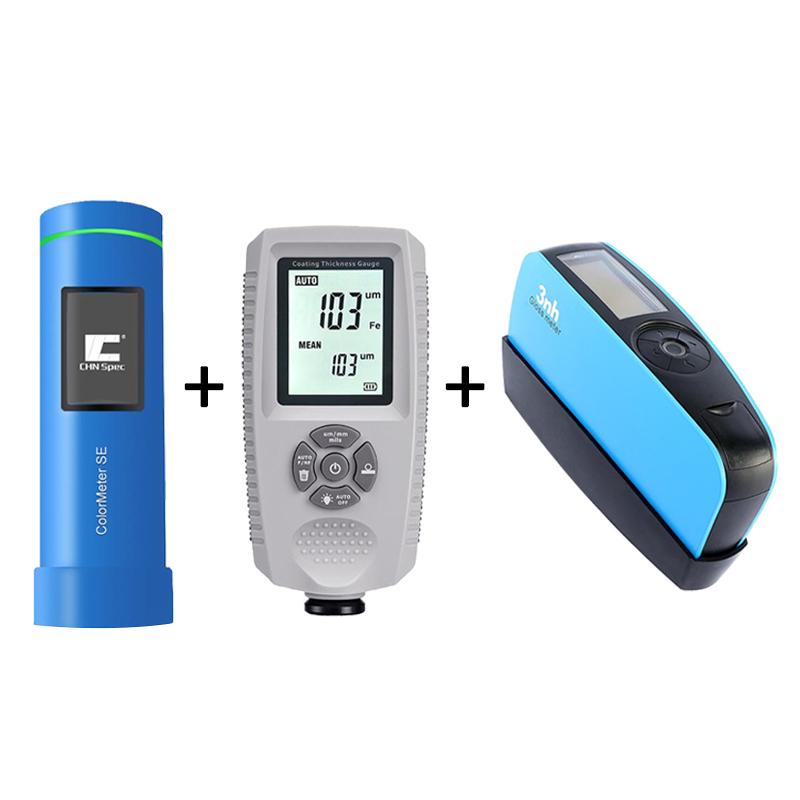

[1999 UNITEC Package] Coating Thickness Gauge + Glossmeter + color reader coating inspection set

EC-500A+YG60S+ColorMeter SE

Dual-use Thickness Gauge + single angle Glossmeter + color difference treasure

Contains YOWEXA EC-500A dual-use Thickness Gauge + Sanenchi YG60S 60 ° single angle Glossmeter + CHNSPEC ColorMeter SE color difference treasure, which can simultaneously measure magnetic substrate surfaces (such as steel, iron, etc.) of nonmagnetic coated platings (such as paints, Ceramics, chromium, etc.), and nonconductive coated platings (such as paints, etc.) on nonmagnetic metal substrate surfaces.

Thickness Gauge product introduction

This instrument can simultaneously measure the non-magnetic coating (such as paint, ceramic, chromium, etc.) on the surface of magnetic substrates (such as steel, iron, etc.) and the non-conductive coating (such as paint, etc.) on the surface of non-magnetic metal substrates. This instrument has a built-in high-precision dual probe, which uses electromagnetic induction and eddy current effect to automatically detect the properties of the substrate, calculate the thickness of the coating layer, and quickly display the results through the liquid crystal.

The main functions of the Thickness Gauge:

• The measurement range is 0~1500um, and the measurement accuracy is 3%+1um;

• The automatic temperature compensation algorithm ensures more accuracy;

• Displays the maximum, minimum, average, and number of statistic values;

• The probe can be switched freely in automatic, magnetic induction, and eddy current modes;

• Easy and reliable zero calibration;

• UM/mm/mils units can be switched freely;

• LCD with high-brightness backlight;

• Support automatic shutdown;

• Low power reminder;

• Support Chinese LCD display;

Thickness Gauge application scenarios

This instrument can measure the thickness of coating and plating without destructive, fast and accurately. It is widely used in second-hand car paint,Plating, surface technology, pipeline anti-corrosion layer, surface anti-corrosion of machinery and equipment, chemical equipment, quality control and other testing fields.

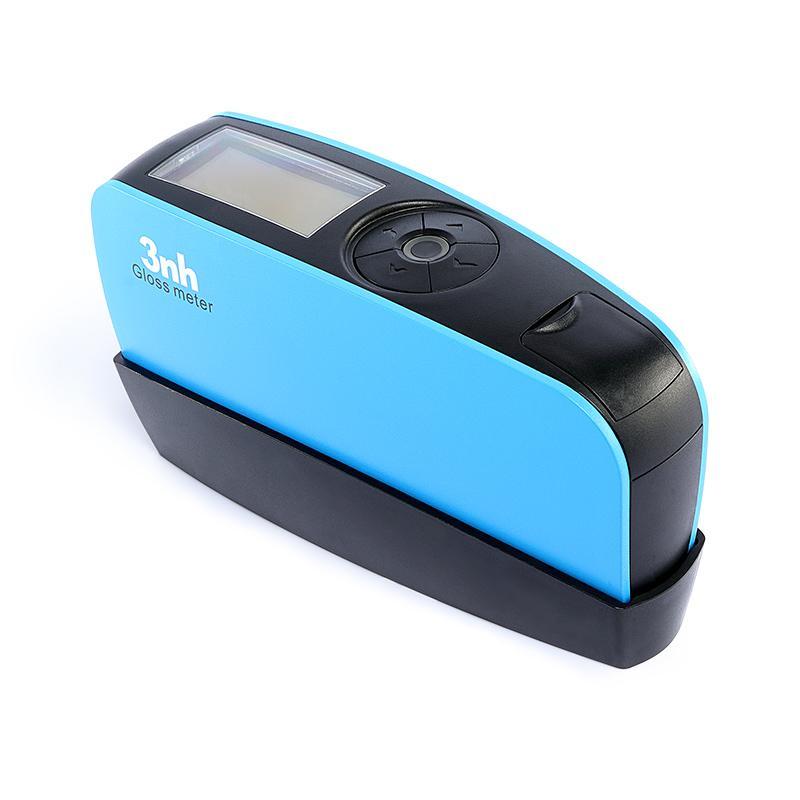

Gloss Meter Introduction

YG60S 60° Economical Gloss Meter is a gloss measuring instrument designed and manufactured with reference to the international standard ISO2813 and Chinese national standard GB/T9754, equipped with high-end quality management software, to meet the requirements of JJG696 secondary working gloss meter.

Gloss meter product features:

1. Aesthetic surface design is closely combined with ergonomics;

2. It has the function of automatically checking and correcting the standard plate;

3. Meet the secondary work of JJG696Gloss meterRequest;

4. It has the function of automatic shutdown;

5. Conform to standard ISO2813, ASTMD523, GB/T9754;

Gloss meter application industry

Used for gloss measurement and quality inspection in paint ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.

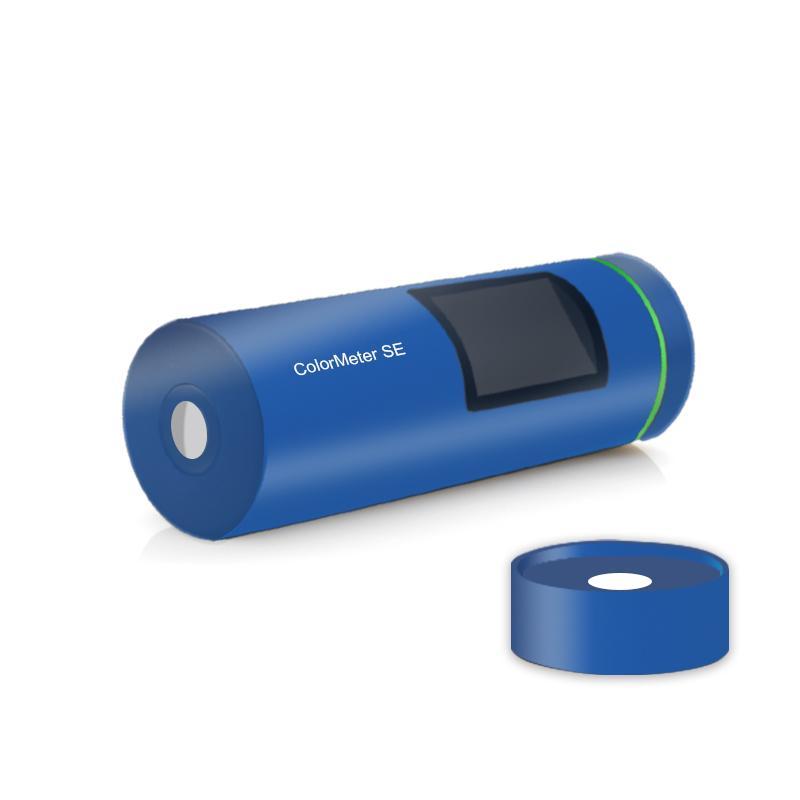

Colorimeter Introduction

The ColorMeter SE/Pro/MAX is different from the traditional oneColorimeterIt is small in size and can be placed in the user's pocket, which is more convenient to carry; At the same time, general spectroscopy is adoptedColorimeterOnly the D/8 structure is more accurate in measurement; The instrument can be wirelessly connected with Android or IOS devices, and colors can be managed on the mobile phone; haveColor numberFind the function to find the color you want. It is widely used in color control in plastics, printing, packaging, textiles, clothing and other industries.

Colorimeter features:

1. A Colorimeter with more accurate color measurement

The international D/8 (integrating sphere diffuse illumination, 8° observation angle) and SCI illumination observation conditions are used to make the measurement more accurate;

The use of spectral sensors provides better spectral data than traditional Colorimeters, comparable to Spectrophotometer s;

On the screen of the instrument, you can directly see the prompt of "Pass" or "Fail", and the quality inspection is worry-free;

2. Carry a lot of itColor carddatabase

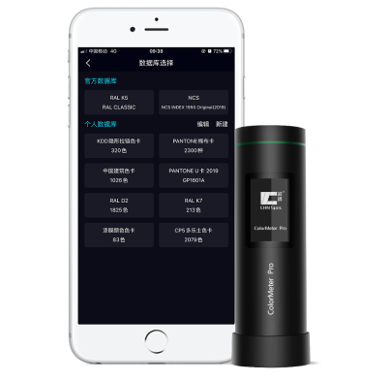

Bluetooth is connected to the mobile phone App, creating a color database, and entering Color Chart information such as printing, coating, and textile;

There is no need to carry a heavy Color Chart, you can use the instrument to find the most similar color in multiple Color Charts anytime and anywhere;

3. Automatic calibration, it can take care of itself

The instrument is automatically calibrated at the same time when it is turned on, and the color detection can be carried out when the instrument is picked up, and the data is correct;

When the instrument works for a long time, the APP will automatically pop up a calibration reminder, and the measurement work will not be delayed;

It can also be combined with the App for manual calibration and calibration interval setting.

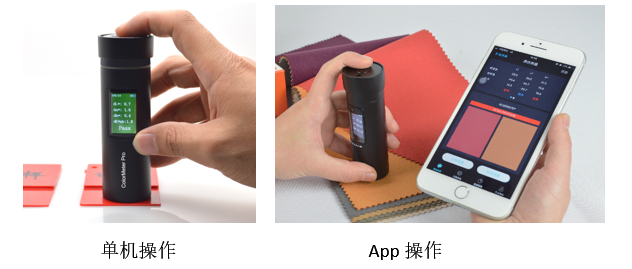

4. Stand-alone machine is available, and there are a lot of measurements and data

1.14 inch IPS display, give you the color information you want;

The instrument can store data, and open the App to synchronize data at any time;

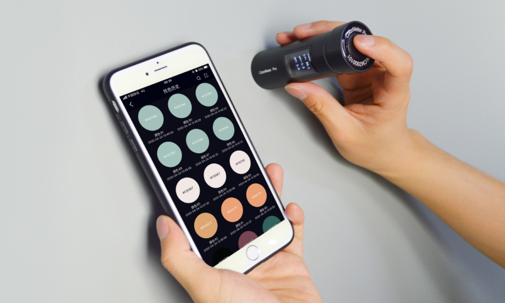

5. Cloud database, more convenient to view and upload

Provide an official Color Chart database, find it at will, and use it as you like;

The user-created color information database can be uploaded to the cloud, multi-device data sharing, and color processing is more convenient.

Enterprise users can create and manage their own Color Chart information database and color formula in the cloud, and share the information base and color formula with merchants and users by having an invitation code.

Colorimeter instrument comparison

As an entry-level model, olorMeter SE supports basic color aberration measurement and color number search, while ColorMeter Pro and ColorMeter MAX support a total of more than 20 measurement indicators, 26 evaluation light sources and color number search.

Compared with ColorMeter SE and ColorMeter Pro, the measurement stability of ColorMeter MAX is ΔE≤0.1, and the measurement stability of ColorMeter MAX is ≤0.05.

The USB of the ColorMeter SE is for charging only, while the ColorMeter Pro and ColorMeter MAX can be connected to a computer.

The field of view of ColorMeter SE is only 10°, and the field of view of ColorMeter Pro and ColorMeter MAX is 2° and 10°.

The ColorMeter SE can measure 5,000 times on a single full charge, and the ColorMeter Pro and ColorMeter MAX can measure 10,000 times on a single full charge.

ColorMeter Pro and ColorMeter MAX can pass the national secondary measurement;

The measurement accuracy of ColorMeterMAX is 0.01, and the measurement accuracy of ColorMeter SE and ColorMeter Pro is 0.1;

Packing list：Dual-use thickness gauge X1, single angle glossmeter X1, color difference treasure X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
