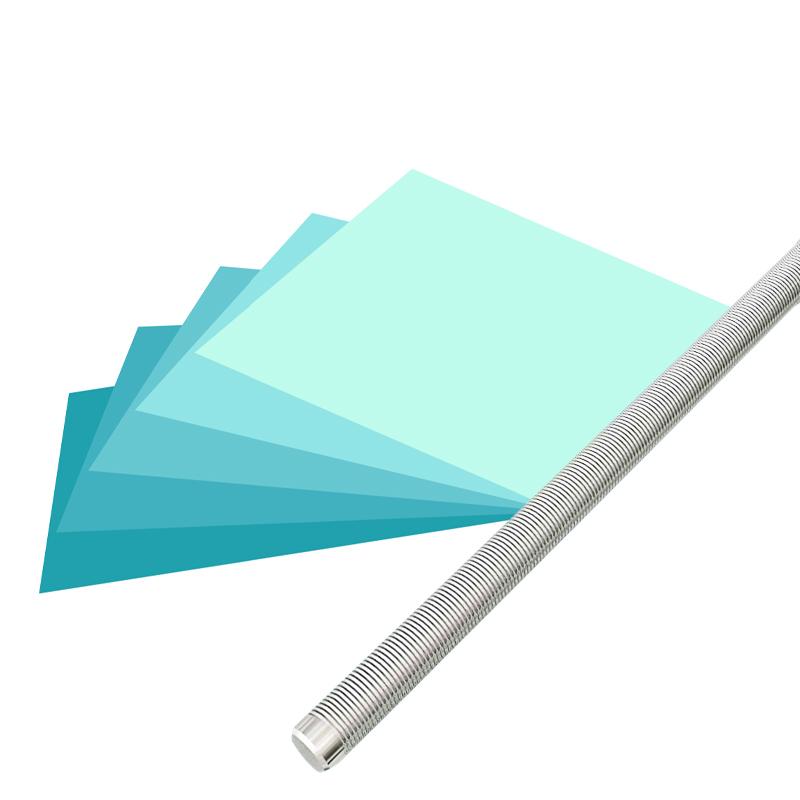

Japan OSP-52 L600/φ 10 wide-wound drawdown Bar Customized Spreader coating bar

OSP-52 L600/Φ10

coating rod

Wet film thickness 52μm, main rod diameter 10mm, effective application width 600mm, clamping length at both ends 0mm, Total length 600mm, material SUS304

OSP series metering rods can be used for printing and coating of paper, film, etc., and the coating amount, length and surface treatment can be customized according to requirements. Widely used in coating ink, paper printing and packaging, tape protective film and other industries. NBCHAO provides system selection guidance and comprehensive customization services.

D-Bar (Standard) Groove Specification Table

D-Bar about groove specification selection

Although it depends on the coating conditions, the transfer amount of the coating liquid is generally related to (D-Bar>wire bar). Therefore, in the case of the same 1mm area , it can be considered that the application of D-Bar is more.

It is only a guide, but when choosing a D-Bar by comparing it to a wire rod, please refer to the excerpt from the groove specification list below, we recommend that you use the smallest specification as a guide, such as A.

*The 1mm area shown in the groove specification table is the measurement data of a test piece with a material diameter of φ10.

*The test piece used for the measured data has no surface treatment.

*1 mm area may vary depending on material diameter, finish type and thickness selected.

*Our 1 mm area does not guarantee the coating amount, and it may differ from the estimated film thickness depending on the coating conditions and physical properties of the coating liquid, so use it as a reference value only.

D-BAR model

Packing list：Wire rod x1, Encasement box x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
