TQC SP1665 cross-cut Tester handle

The Dutch TQC SP1665 cross-cut Tester handle can be used with cutter heads for Coating, Automotive, Platings, Laboratory, inks, Marine, Steel Protection, Wood and other industries.

Price: Please contact customer service

Model：

SP1665

Certificate

TQC sheen

Contact

Details SPEC Con VIDEO

TQC sheen SP1665 Cross-cut Tester handleSPEC

TQC sheen SP1665 Cross-cut Tester handleDetails

TQC sheen SP1665 Cross-cut Tester handlePacking list

SKU: NB036302

SP1665

Cross-cut Tester handle

Introduction

The handle of this TQC 100 grid knife does not contain the cutter head, the cutter head needs to be purchased separately, and the outer packaging box is a white transparent plastic shell, not a set.

TQC SP1665 100 Grid Knife Handle Details Figure 1

TQC SP1665 100 Grid Knife Handle Details Figure 2

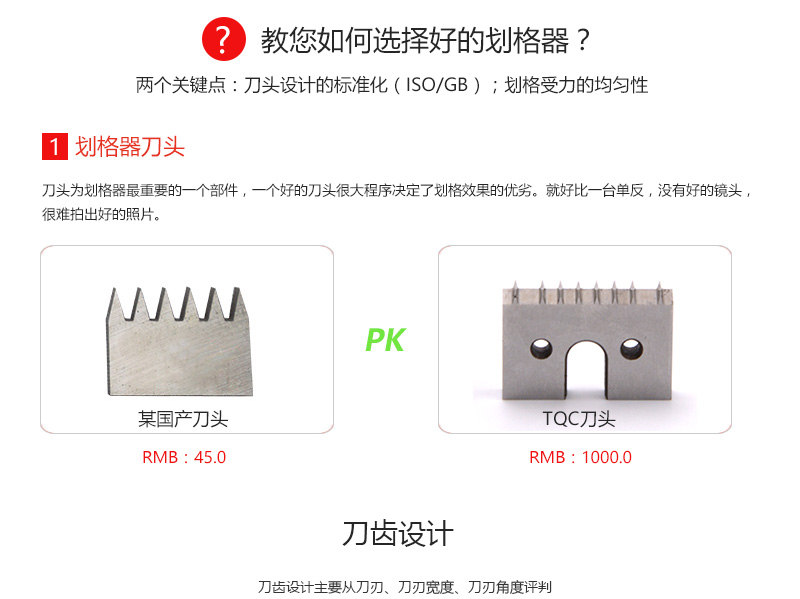

TQC SP1665 100 Grid Knife Handle Details Figure 3

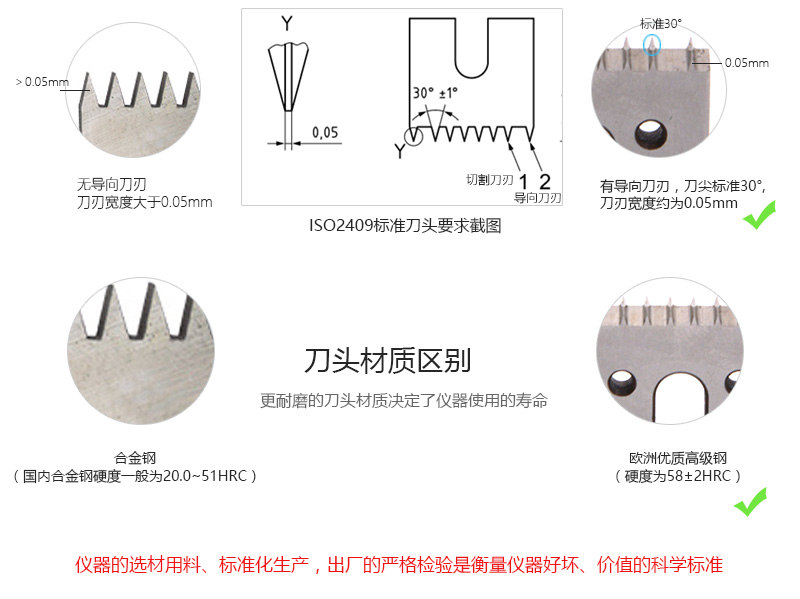

TQC SP1665 100 Grid Knife Handle Details Figure 4

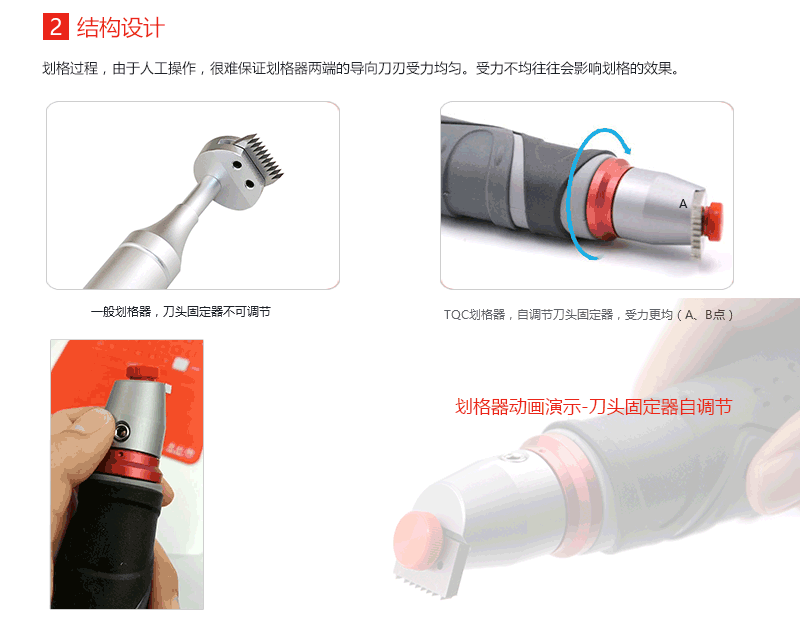

TQC SP1665 100 Grid Knife Handle Details Figure 5

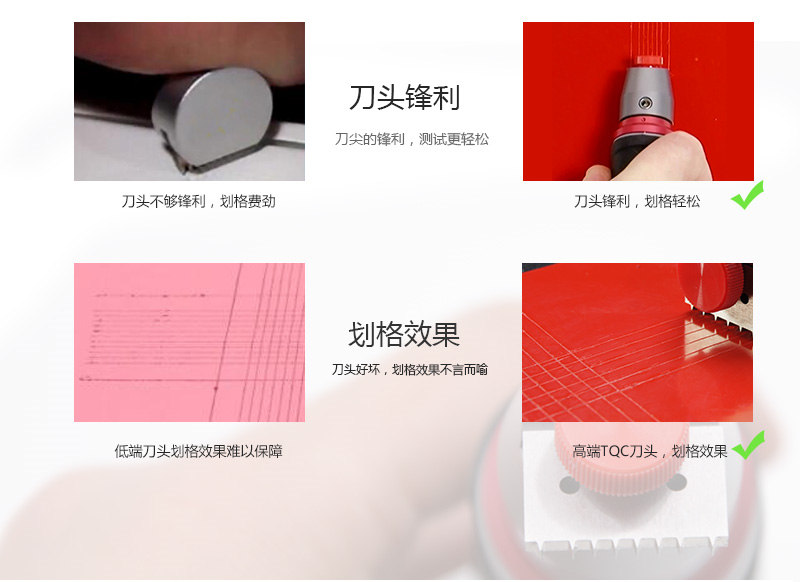

TQC SP1665 100 Grid Knife Handle Details Figure 6

TQC SP1665 100 Grid Knife Handle Details Figure 7

Features

• Automatic adjustment of the blade holder ensures consistency of the pressure exerted by the cutter on the coating

• Ergonomic handle

• The cutter is easy to change and does not require additional tools

• The cutter has a wide range of sizes, which is widely suitable for different coating thicknesses and substrates, and can be selected according to different standards.

Schematic diagram of the correct use of TQC 100 grid knife

TQC SP1665 100 Grid Knife Handle Details Figure 8

Meets standards

ISO/DIN 2409，ASTM D3359

Application

Coatings, Automotive, Coatings, Laboratory, Inks, Marine, Steel Protection, Wood and other industries.

TQC SP1665 100 grid knife handle details Figure 9

Safety Precautions

The cutter head is sharp, and you should pay attention to safety when using it;

Please use the box to store the knife.

Product detail drawing

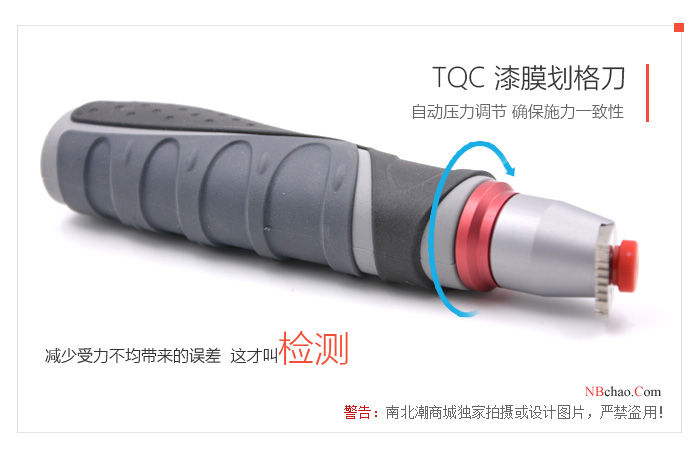

TQC SP1665 100 Grid Knife Handle Details Figure 10

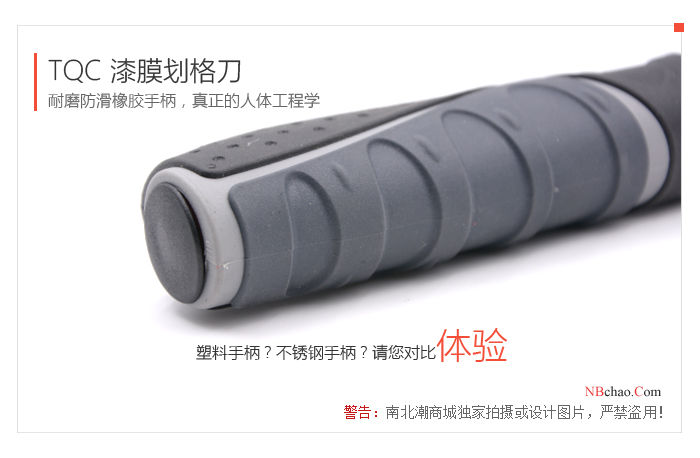

TQC SP1665 100 Grid Knife Handle Details Figure 11

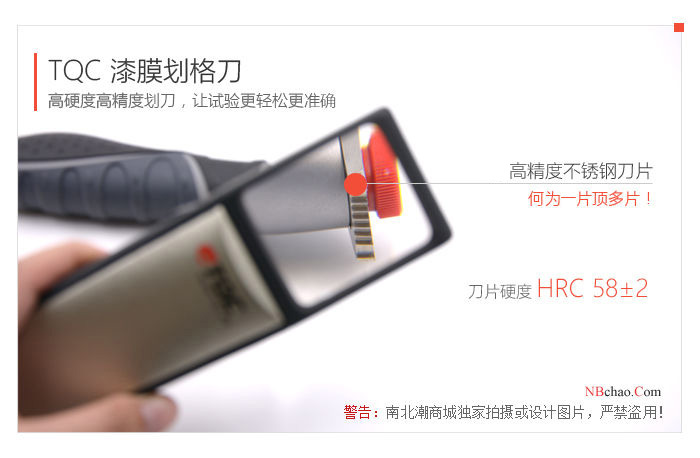

TQC SP1665 100 Grid Knife Handle Details Figure 12

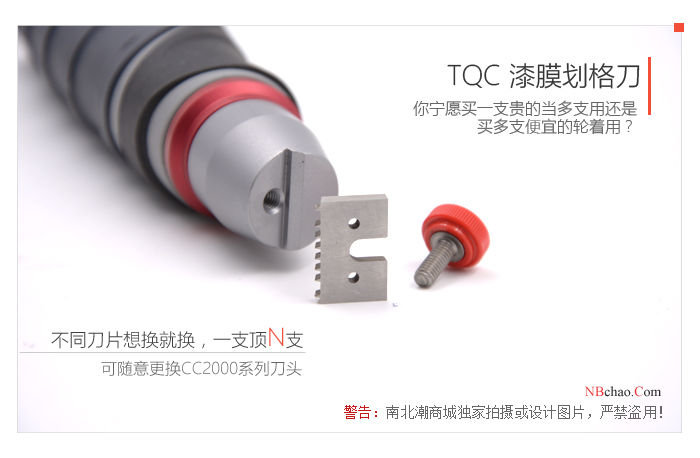

TQC SP1665 100 Grid Knife Handle Details Figure 13

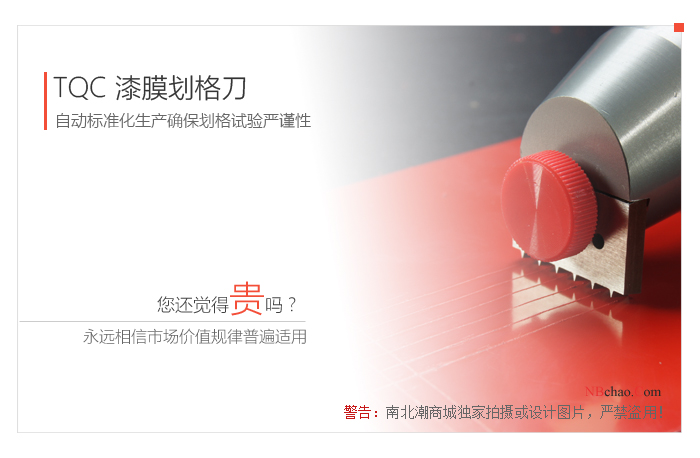

TQC SP1665 100 Grid Knife Handle Details Figure 14

Optional are available for 100 grid knives

SP3007 1 roll of adhesive tape with a strength of 4.3N/cm

SP3010 3 rolls of adhesive tape with a strength of 4.3N/cm

SP3020 1 roll of adhesive tape with a 7.6 N/cm adhesion capacity

SP1710 Nylon brush for cross-grid adhesion testing

SP9700 2.5x illumination magnifier

TQC bits according to DIN-ISO standard (for CC2000, CC3000)

SP1702 cutter teeth spaced 1 mm apart

SP1703 cutter teeth spaced 2 mm apart

SP1704 cutter teeth 3 mm apart

ASTM compliant TQC bits (for CC2000, CC3000)

SP1705 cutter teeth spaced 1 mm apart

SP1706 cutter teeth spaced 1.5 mm apart

100 grid knife use

ISO 2409:

1 mm spacing for robust substrates with coating thicknesses of less than 60 microns

2mm interval, suitable for soft substrates with coating thickness of less than 60 microns

2 mm intervals for all substrates with coating thicknesses between 61 and 120 microns

3mm intervals for all substrates with coating thicknesses between 121 and 250 microns

ASTM D3359:

1mm spacing, suitable for coating thicknesses less than 50 microns

1.5mm spacing, suitable for coating thicknesses between 50-125 microns

Griddling method experimental evaluation

grade	description	Surface detachment in the cross-cut area (6 teeth as an example)
0	The cutting edge is completely smooth and does not fall off.
1	There is a slight peeling of the coating at the intersection of the incisions, but the impact of the cross cutting area cannot be significantly greater than 5%.
2	There is coating peeling at the incision intersection and/or along the incision edge, and the affected cross-cutting area is significantly greater than 5%, but not significantly greater than 15%.
3	Partial or total peeling of the coating along the cutting edge with large fragments and/or partial or total peeling on different parts of the lattice affects a cross-cut area of significantly greater than 15%, but not significantly greater than 35%.
4	Large fragments of the coating peel off along the cutting edge and/or some squares are partially or completely peeled off, and the affected cross-cut area is significantly greater than 35%, but not significantly greater than 65%.
5	The degree of flaking is more than grade 4.

Take you to the Dutch TQC

TQC SP1665 100 Grid Knife Handle Details Figure 21

TQC SP1665 100 Grid Knife Handle Details Figure 22

TQC SP1665 100 grid knife handle details 23
