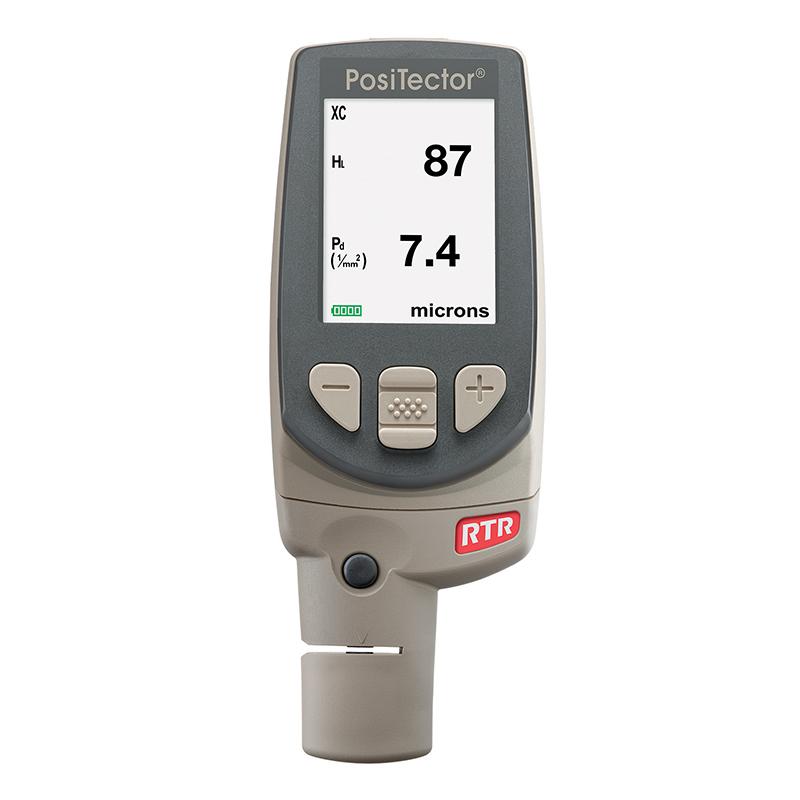

Defelsko digital tape replication gauge PosiTctor RTR P1 measurement peak height and density values

Standard RTRP1-E

Surface profile measuring instrument

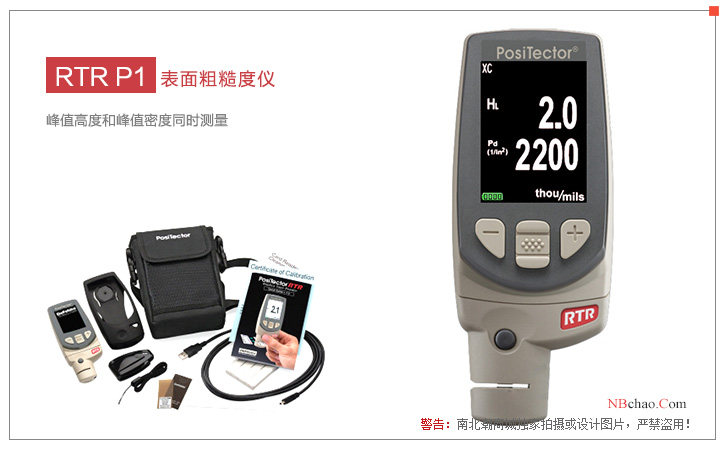

PosiTctor RTR P1 Digital DisplayIntroduction to tape replication gauges

Defelsko PosiTctor RTR P1 Digital DisplayThe tape replica gauge is a gauge with measurable peak heights and peaksA surface roughness measuring instrument with a value density, using Testex™ Press-O-Film™ Replica Tape Replica Tape Replication Measurement to record the height of the peak and valley values of the surface profile, i.e. surface roughness. RTR P1The Tape Replica Gauge is the standard model of the RTR P series and features a monochrome display with a storage capacity of 250 measurement readings.

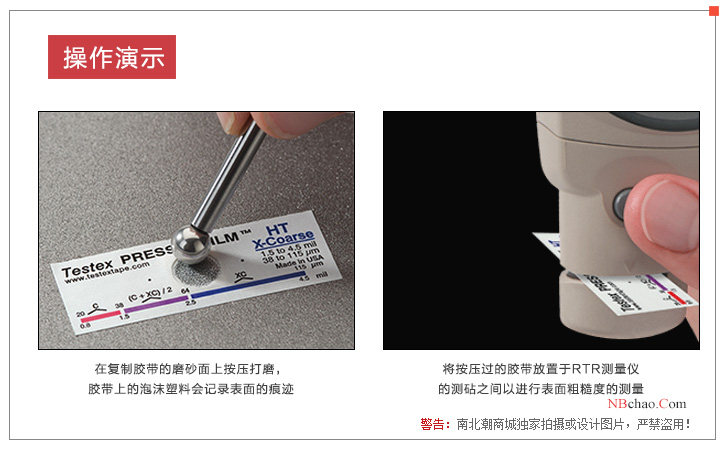

Test schematic

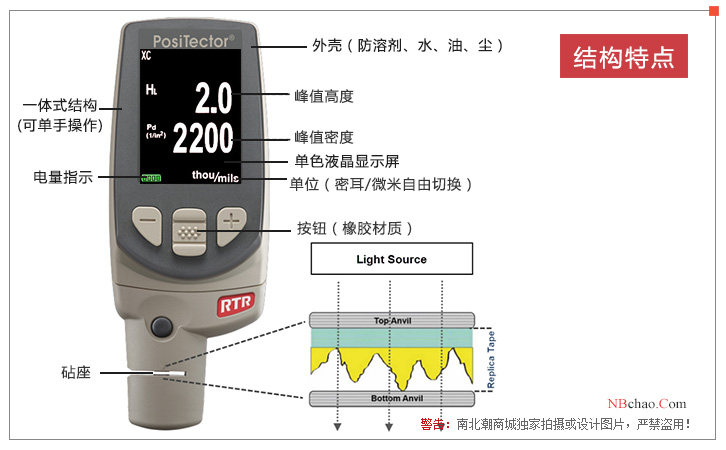

PosiTctor RTR P1 digital displayTape Replication Gauge Features

1. The peak height and peak density can be measured at the same time

2. It has 250 data storage capacity

3. Monochrome LCD screen

4. The shell has the functions of anti-solvent, water, oil, dust, etc., and is equipped with a rubber jacket to be shockproof

5、Automatically subtract all readings from a 50.8 μm (2 mil) substrate

6. The calibration certificate can be traced back to PTB

7. The PosiTector main unit is compatible with other PosiTector series probes, such as RTR, SPG, 6000, 200, DPM, UTG.

8. Inverted display can be set

9. It can be connected to Posi software, and the data management function is powerful

10. Multiple languages are available

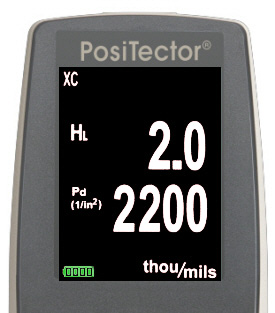

 RTR P1 digital displayTape replica gauge display

Comparison of parameters of PositTector RTR series

Model	PosiTector RTR H1	PosiTector RTR H3	PosiTector RTR P1	PosiTector RTR P3
Host type	Standard	Advanced	Standard	Advanced
Probe type	PRBRTRH		PRBRTRP
Measuring Peak (HL)	●	●	●	●
Measured peak density (Pd)			●	●
Output 2D/3D images				●
Save the SDF surface data file				●
Peak (HL) measurement range	20~115 μm (0.8 to 4.5 mils)
peak(HL) accuracy	±5 μm (±0.2 mils)
peak(HL) resolution	±1 μm (±0.2 mils)
Anvil diameter	Ø6.3 mm (Ø0.25 inch)
Anvil pressure	110g (1.1N)
size	152x61x28mm
weight	140g
standard	ASTM D4417、NACE RP0287、SSPC PA 17、SSPC-SP5、SP6、SP10、SP11-87T、AS 3894.5、ISO 8503-5等

Packing list：Host x1, Glass zero adjusting plate x1, metal gasket x1, protective rubber cover and belt clip x1, wrist strap x1, battery x3, manual x1, nylon bag and shoulder strap x1, mirror protective film x1, calibrate certificate x1, USB cable x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
