Brand：YouKe
Model：YK3051

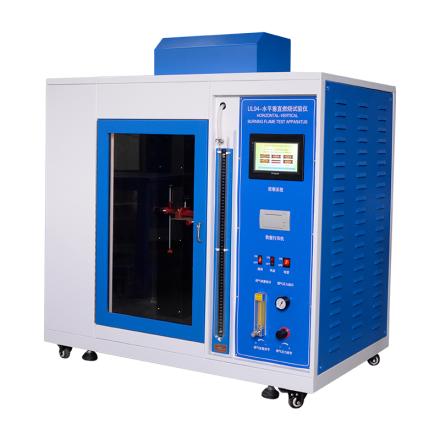

Name：Horizontal and vertical combustion Tester (touch screen)
Specifications
| test space | ≥ 0.5 cubic meters with Glass observation door |
| afterflame time | 0~999.9 seconds can be set |
| afterflame time | 0~999.9 seconds can be set |
| Combustion angle | 20 °, 45 °, 90 ° (ie 0 °) adjustable |
| Combustion dimension parameters | The inner diameter of the nozzle is Ø 9.5mm, the effective length of the nozzle is 100mm, and there are air conditioning holes. |
| flame height | Adjustable from 20mm to 175mm according to standard requirements |
| Sample method | The front and rear of the motor drive are aligned with the spline up and down. |
| Control mode | PLC + touch screen automatic control and manual control + print test results (optional) |
| Safety Devices | The machine is equipped with a gas detection alarm device. When the gas concentration exceeds the normal value, the alarm device emits a sound and light alarm, cuts off the gas supply and starts the exhaust system to discharge the gas in the test chamber until the air Mass in the box returns to the normal value. The exhaust stops, and the Bunsen lamp returns to the origin. |
| Power | AC 220V/50H |
| Control mode | Touch screen control. |
| insulation grade | Class F |
| Protection class | IP20 (suitable for indoor use) |
| Fan noise | Below 45 decibels |
| Exhaust gas emission method | Side wind, top wind |
| Operating Mode | Can work continuously |
| Applicable environment temperature | -10℃～+50℃ |
| Mobile mode | Adopt load-bearing universal casters, 2 at the front and rear |
| Applicable Relative Humidity | ≤95% |
| altitude | ≤ 2500 meters |
Packing list
Host X1, flame height measurement scale X1, absorbentcottonph X1, stainless steel receiving plate X1, power cord X1, water absorber X1, exhaust pipe X1, exhaust pipe buckle X1, gas buckle X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/36464/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
