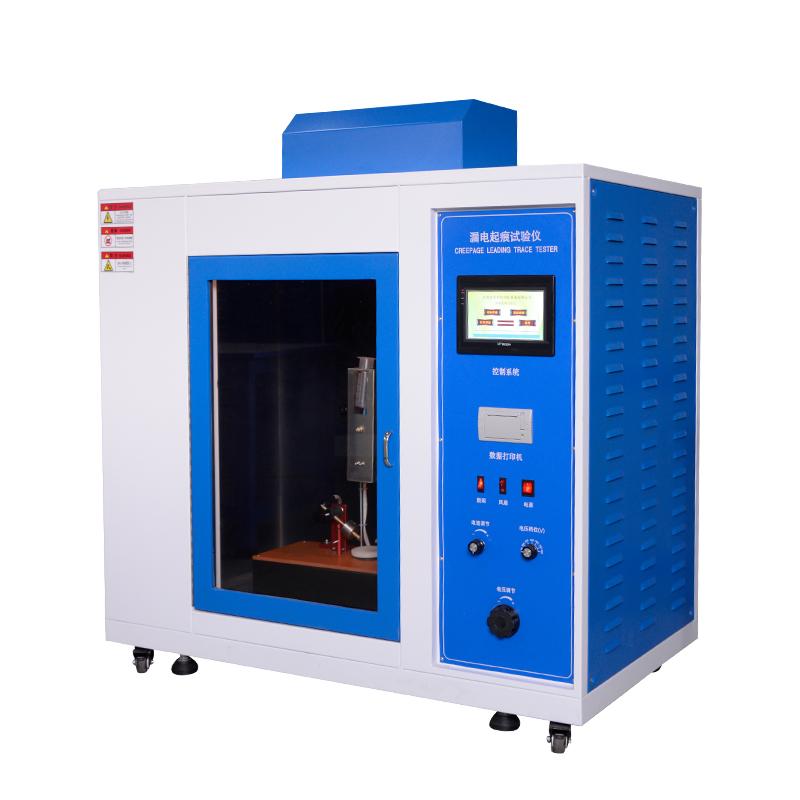

Leakage marking Tester (touch screen) pure platinum electrode purchased separately

SE
Destructiveness test of insulating materials used to test and evaluate the relative resistance of insulators to electric fields and impurity-containing water at specified Voltages. Solid electrical insulation materials and products for electrical and electronic products, household appliances
$1781.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

YouKe YK3058 Leakage marking Tester (touch screen) SPEC

YouKe YK3058 Leakage marking Tester (touch screen) Details

YouKe YK3058 Leakage marking Tester (touch screen) Packing list

SKU
NB036467
In-box Volume
≥ 0.5 cubic meters with Glass observation door
Electrical load
The test Voltage is adjustable between 100 and 600V, and when the short-circuit current is 1A +/- 0.1A, the Voltage drop should not exceed 10%. When the short-circuit leakage current in the test circuit is equal to or greater than 0.5A, the time is maintained for 2 seconds, and the relay operates., cut off the current, indicating that the test product is unqualified.
Bipolar force on the sample
The rectangular platinum plated electrode is used, and the force of the two poles on the sample is 1.0N +/- 0.05N respectively
Dripping device
The drop height is adjustable from 30mm to 40mm, the drop size is 44 to 50 drops/cm3, and the drop time interval is 30 +/- 1 second
PLC + touch screen control
It is used for manual/automatic control, parameter setting and display, and operation monitoring. It is easy to operate and easy to read real-time experimental data, and can print experimental results (optional)
Power
AC 220V，50Hz
YK3058
Leakage marking Tester (touch screen)
Destructiveness test of insulating materials used to test and evaluate the relative resistance of insulators to electric fields and impurity-containing water at specified Voltages. Solid electrical insulation materials and products for electrical and electronic products, household appliances

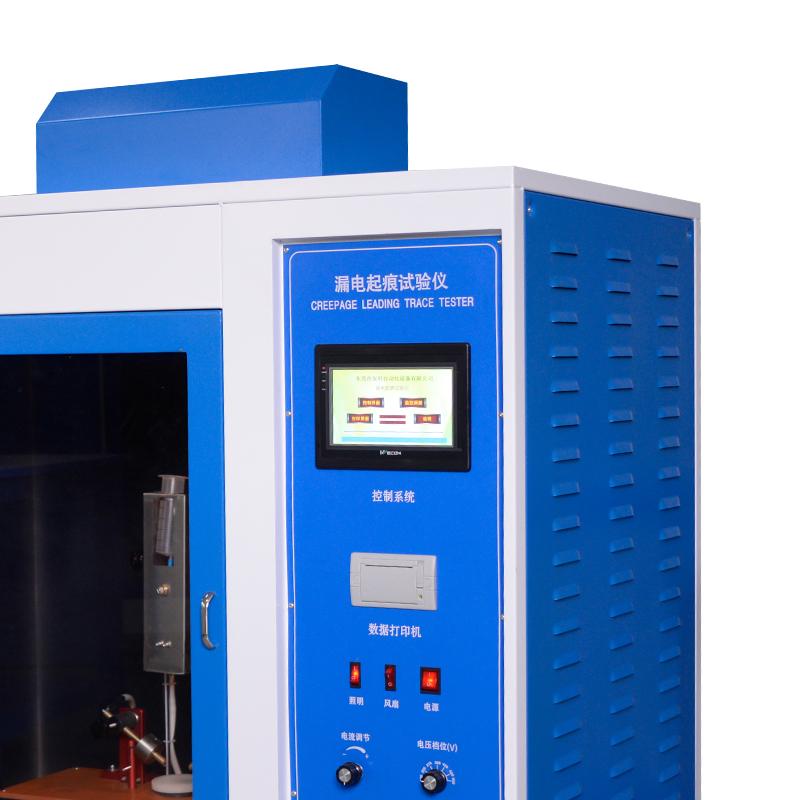

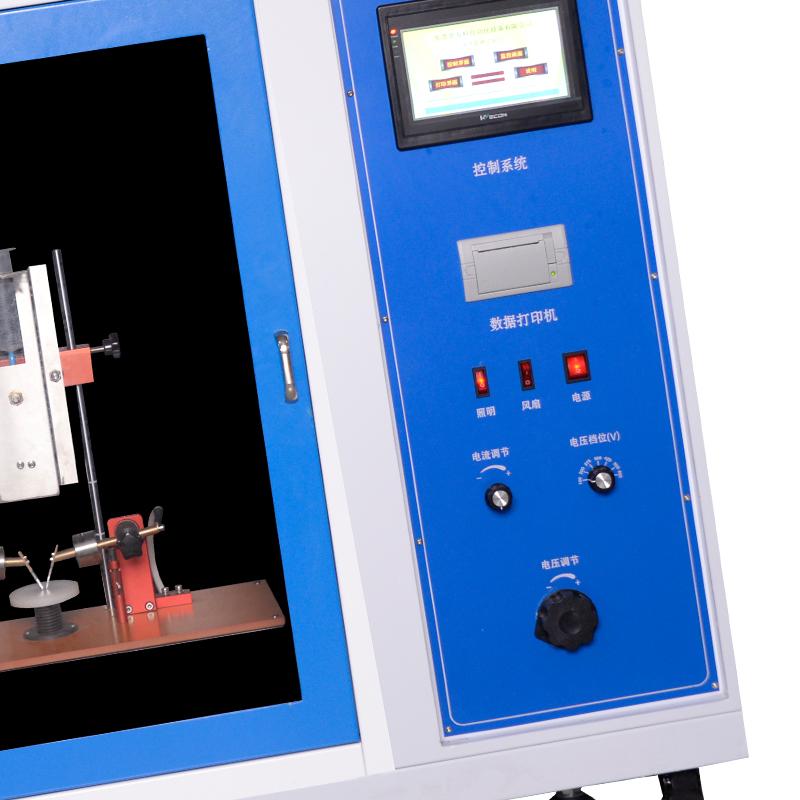

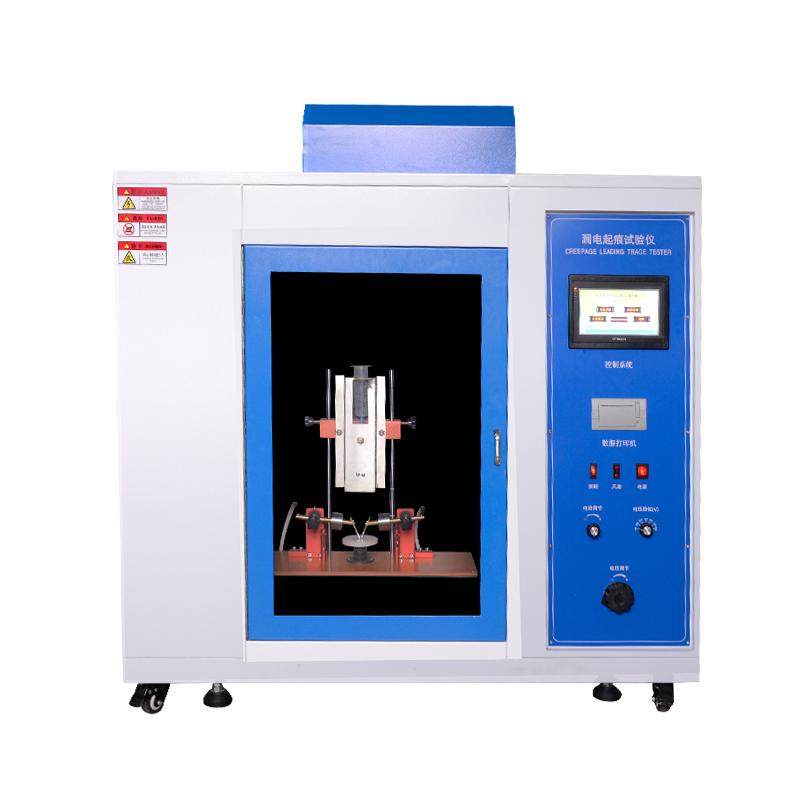

Leakage marking Tester (touch screen) pure platinum electrode purchased separately Picture

Guideline

IEC60335, GB4706.1, IEC60884-1, GB2099.1, GB/T4207-2003, IEC60112.

Technical Description

This product is used in electrical products under the influence of humidity and impurity environment, which may cause insulation leakage between live parts of different polarities or between live parts and grounded metal parts. Discharge can corrode materials and even ignite causing fires. This test instrument is a destructive test for insulating materials that simulates the above situation. It is used to test and evaluate the relative tracking resistance of the insulator under the action of the electric field and impurity water under the specified Voltage. Suitable for electrical and electronic products, solid electrical insulation materials for household appliances and their products, such as: relay sockets, transfer switch covers, contactor bodies, etc.

Features

The structural parts of the test box are made of electrostatic spray paint, the drip count is accurate, and the control system is stable and reliable.

FAQ
QWhich instruments are suitable for testing the performance of electrical insulation materials in humid and impurity environments?
A YK3058 leakage marking tester is specially designed to simulate the leakage marking test of insulating materials in humid and impurity environments. It meets multiple standards such as IEC60335 and GB4706.1. It is suitable for the testing of insulating materials such as electrical and electronic products and household appliances. It can effectively evaluate the material's resistance to leakage marking and prevent arc breakdown or fire risk.
QWhich instruments can achieve the function of adjustable test voltage and automatically cutting off unqualified current?
A The instrument supports the adjustable test voltage of 100-600V, and the voltage drop does not exceed 10% when the short-circuit current is 1A +/- 0.1A; when the leakage current is ≥ 0.5A for 2 seconds, the relay automatically cuts off the current and indicates failure. Combined with the touch screen control, it is convenient for manual/automatic operation and real-time data monitoring, with comprehensive and efficient functions.
