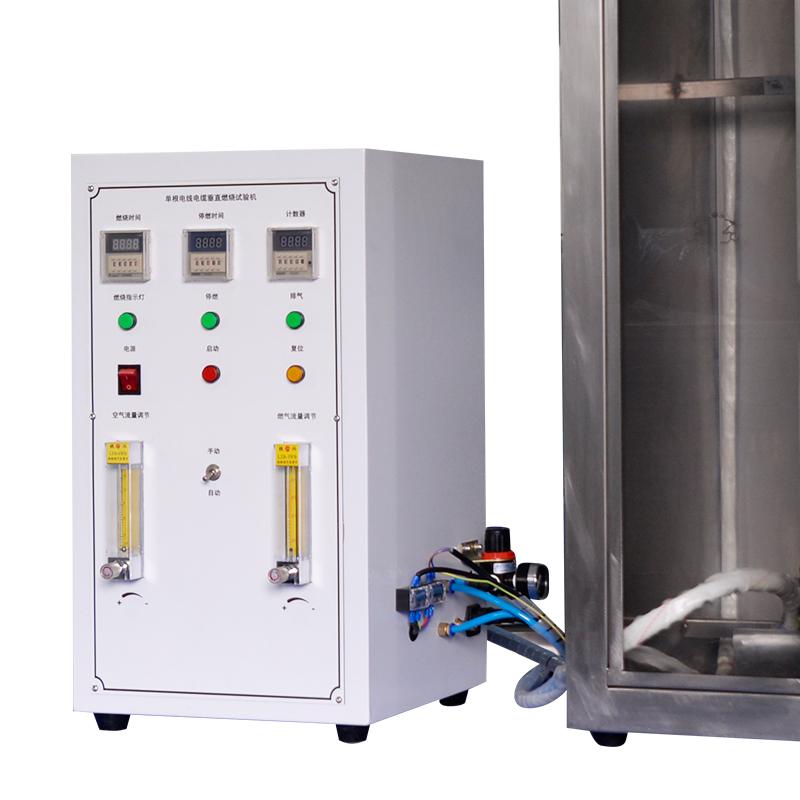

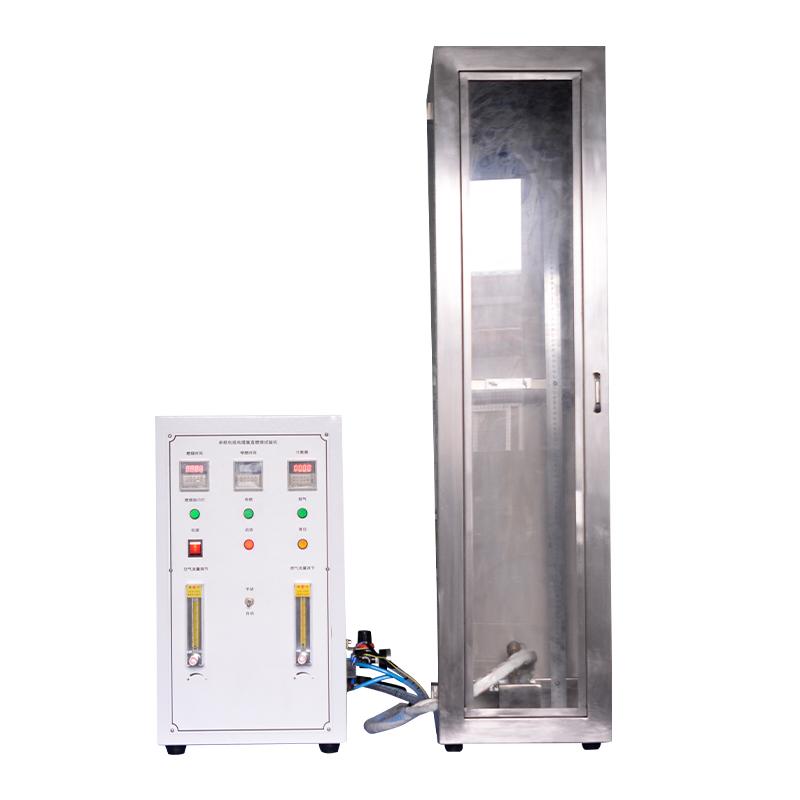

YOUKE YK3260 single line vertical combustion testing machine

YOUKE YK3260 single line vertical combustion testing machine blue flame core height is 50~ 60mm, the total flame height is 170~ 190mm, YK3260 single line vertical combustion testing machine is suitable for measuring single plastic line, control line, crosslinking, elevator, marine, mining cable and other vertical combustion non-spreading performance

$1102.52/set

PromotionLoading...

Coupon

Model：

YK3260

YouKe

Contact

Details SPEC Con

YouKe YK3260 Single line vertical combustion testing machineSPEC

YouKe YK3260 Single line vertical combustion testing machineDetails

YouKe YK3260 Single line vertical combustion testing machinePacking list

SKU: NB036469

combustion box: The box size is 300mm wide x 1200 x 450mm deep;

Combustion blowtorch: 1KW combustion nozzle (made according to GB/T5169.14-2007/IEC60695-11-2:2003 standard), the height of the blue flame center is 50~ 60mm, and the total height of the flame is 170~ 190mm.

combustion gas: Using high-purity 95% technical-grade propane gas (or gas replacement)

Specimen length: 600±25mm；

Specimen holder: The distance between the lower edge of the upper bracket and the upper edge of the lower bracket of the two horizontal brackets is 550mm;

Holding time: 0.1-999.9S continuous setting, the flame can continuously combustion the sample within the set time;

Blowtorch installation location: The blue flame contact point is 475mm away from the lower edge of the horizontal upper bracket, and the angle between the blowtorch and the vertical axis of the sample is 45 degrees

Control mode: Manual or automatic options;

Gas flow range: 100-1000mL/min；

Air flow range: 1-10L/min；

pressure gauge: 0~ 0.75Kpa range adjustment

Ignition method: High voltage automatic ignition

YK3260

Single line vertical combustion testing machine

Guideline

GB/T 18380.11‐2008, IEC60332‐1‐1:2004, GB/T 18380.12‐2008, IEC60332‐1‐2:2004, GB/T 18380.13‐2008, IEC60332‐1‐3:2004, GB/T 18380.21‐ 2008, IEC60332‐2‐1:2004, GB/T 18380.22‐2008, IEC60332‐2‐2:2004, EN50265‐1, EN50265‐2‐1, GB/T5169.14‐2007 and IEC60695‐11‐2:2003 .

Technical Description

Single wire and cable vertical combustion test machine is suitable for testing the vertical combustion non-spread performance of single plastic wire, control wire, cross-linked, elevator, marine, mining cables, etc. It can also be used for vertical burning test of highly self-extinguishing low-smoke, halogen-free, flame-retardant polyolefin insulating material and 105°C low-smoke, halogen-free, flame-retardant olefin irradiated insulating material. This device is a device for carrying out the flame resistance test on a single wire and cable. The device has the advantages of high accuracy, automatic timing, automatic end of the test, and easy operation.
