YOUKE YK3652 Impact Tester 1J/2J/4J/5J

SE
YOUKE YK3652 Simply supported beam Impact Tester pendulum energy 1J, 2J, 4J, 5J, Display mode color touch screen, pendulum pre-elevation angle of 150 °, YK3652 Simply supported beam Impact Tester is mainly used for hard plastics, reinforced nylon, frp, ceramics, cast stone, electrical insulation materials and other Non-metallic materials Impact toughness determination.
$1221.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

YouKe YK3652 Simply Supported Beam Impact TesterSPEC

YouKe YK3652 Simply Supported Beam Impact TesterDetails

YouKe YK3652 Simply Supported Beam Impact TesterPacking list

SKU
NB036471
Pendulum energy
1J、2J、4J、5J
Display
Color touch screen
Pendulum pre-elevation angle
150°
Impact speed
2.9m/s
Pendulum center distance
230mm
Angle Accuracy
0.01°
Energy Accuracy
0.01J
Jaw support spacing
40mm, 60mm, 70mm, 95mm (or customized)
Support blade fillet radius
R=1mm
Impact blade angle
30°
Impact edge fillet radius
R=2mm±0.5mm
Output method
printout
Power
220v 50HZ
YK3652
Simply Supported Beam Impact Tester

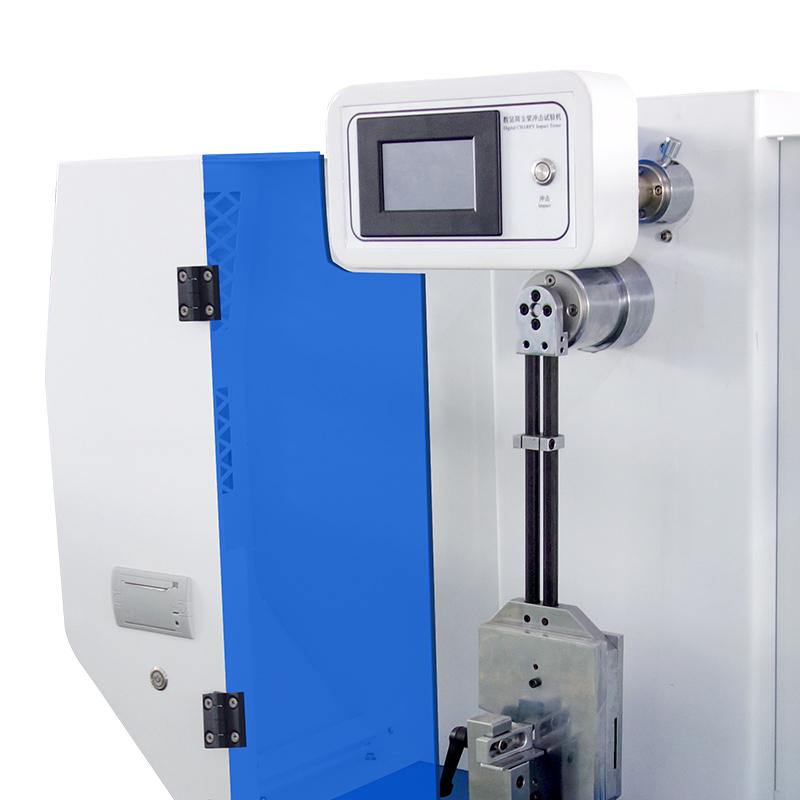

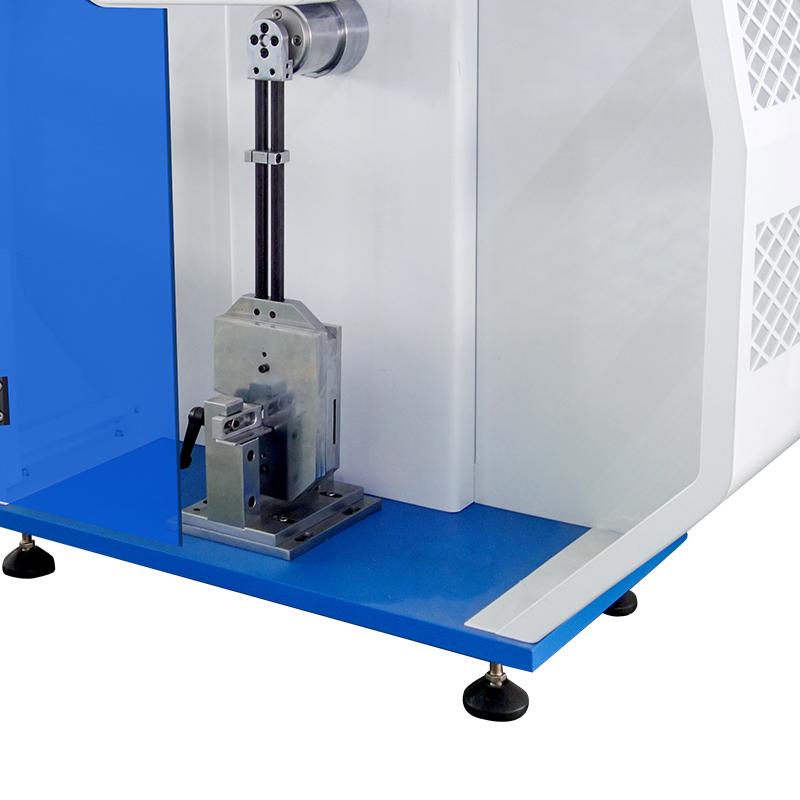

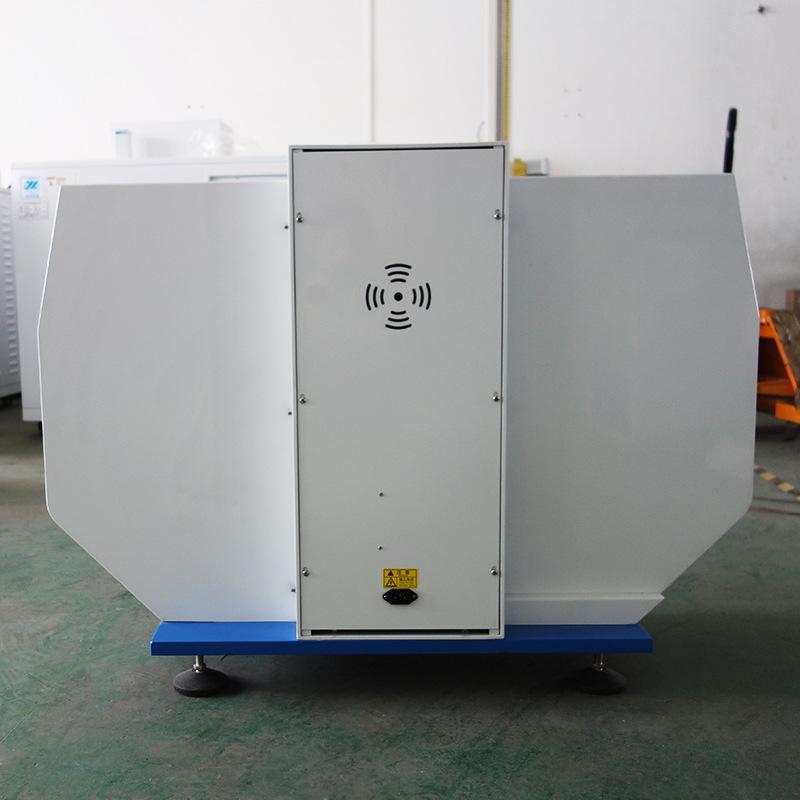

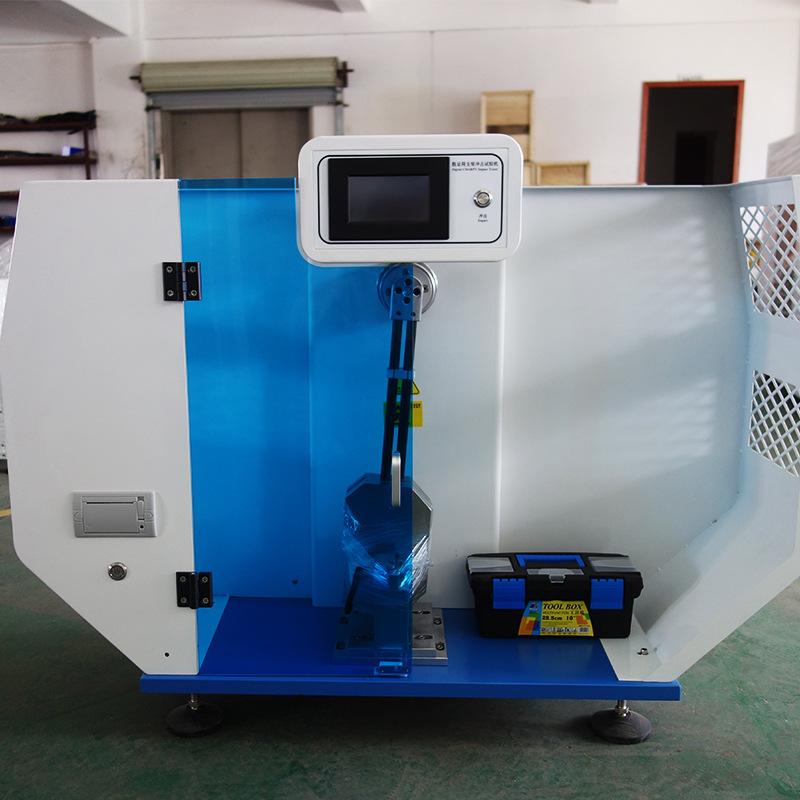

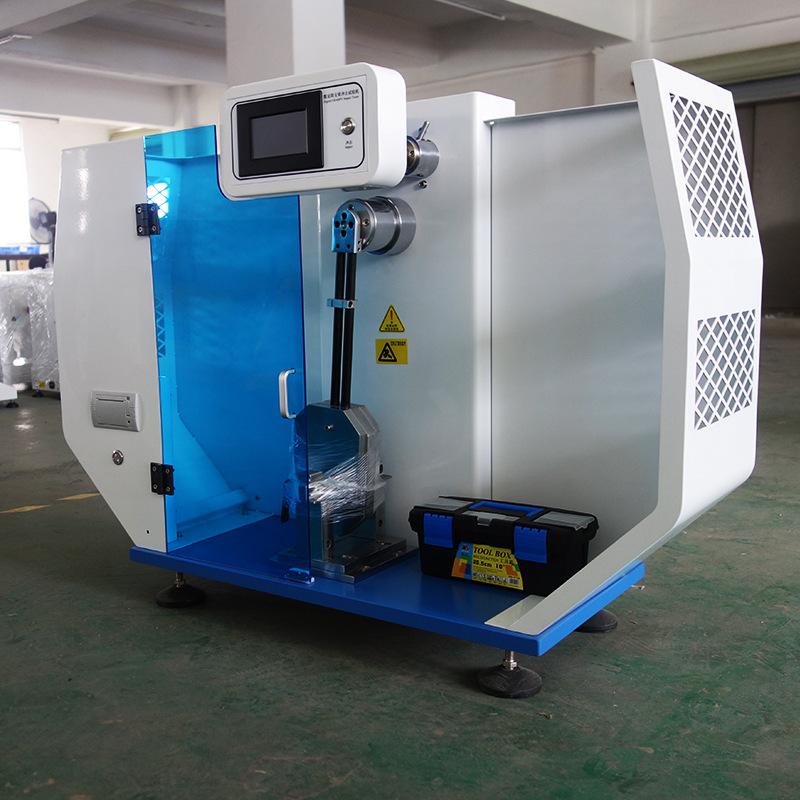

YOUKE YK3652 Impact Tester 1J/2J/4J/5J Picture

product description

The digital display simply supported beam impact testing machine is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stones, and electrical insulating materials. It is a satisfactory test equipment for the chemical industry, scientific research units, colleges and universities, quality inspection and other departments.

Executive standard

ISO179-2000 "Plastics - Determination of Charpy Impact Strength of Hard Materials"

GB/T1043—2008 "Rigid Plastic Charpy Impact Test Method"

JB/T8762—1998 "Plastic Charpy Impact Testing Machine"

GB/T 18743-2002 "Charpy impact test method for thermoplastic pipes for fluid transportation" (applicable to pipe parts)

Features

  • High-precision intelligent controller, equipped with LCD display, can read data intuitively and accurately

  • Chinese use of high-strength carbon fiber pendulum (patent applied for) improves the rigidity of the material in the impact direction, and concentrates the impact mass on the center of mass of the pendulum to achieve a truly shock-free impact test

  • Using imported high-resolution digital encoder, the angle test accuracy is higher and more stable

  • The aerodynamic impact hammer and imported ball bearings greatly reduce the friction loss caused by machinery

  • Automatically calculate the final result, the test data can save 24 sets of data and calculate the average

  • Chinese and English operation interface can be selected, the test result can choose J/m, KJ/㎡, kg-cm/cm, ft-ib/in and other units

  • Built-in micro-printer to print test data


FAQ
QI want to test the impact toughness of hard plastics. What instrument should I choose?
A YK3652 Simply Supported Beam Impact Tester is used for Impact toughness testing of Non-metallic materials such as hard plastics and reinforced nylon, in accordance with ISO179 and GB/T1043 standards.
QDo you have an integrated equipment for cantilever beam and simply supported beam?
A YOUKE model YK-3658, a new multi-functional cantilever beam, simply supported beam integrated Impact Tester. Energy range: 5J & 5.5J, 15J & 5.5J, 50J & 5.5J
