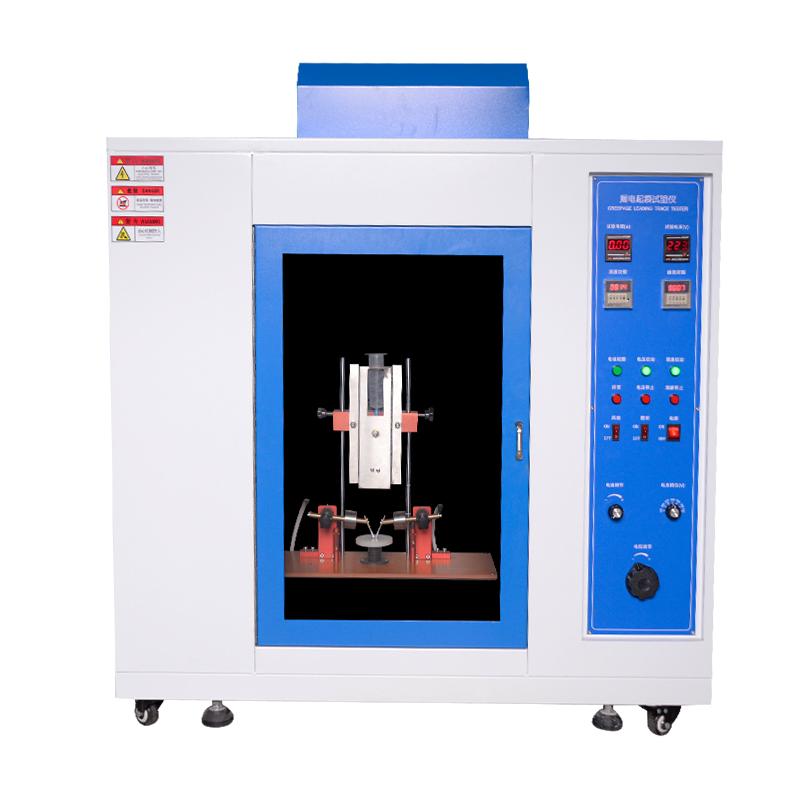

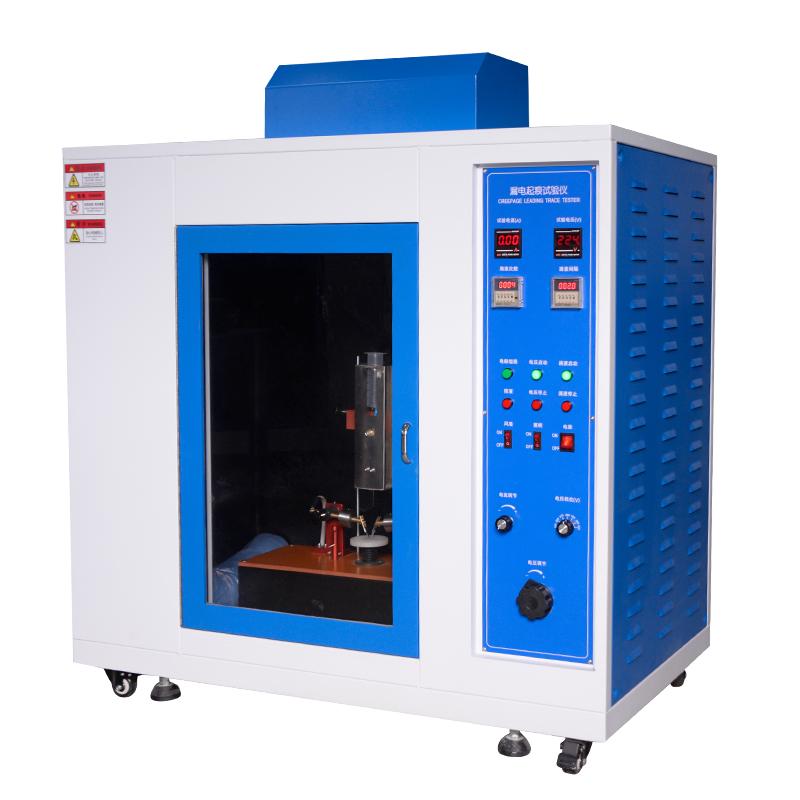

YOUKE YK3057 Leakage marking Tester, leakage resistance marking test
SE
YK3057
YouKe YK3057 Leakage marking TesterSPEC
YouKe YK3057 Leakage marking TesterDetails
YouKe YK3057 Leakage marking TesterPacking list
- SKU
- NB036473
- In-box Volume
- ≥ 0.5 cubic meters with Glass observation door
- Electrical load
- The test Voltage is adjustable between 100 and 600V, and when the short-circuit current is 1A +/- 0.1A, the Voltage drop should not exceed 10%. When the short-circuit leakage current in the test circuit is equal to or greater than 0.5A, the time is maintained for 2 seconds, and the relay operates., cut off the current, indicating that the test product is unqualified.
- Bipolar force on the sample
- Using a rectangular platinum electrode, the force of the two poles on the sample is 1.0N +/- 0.05N respectively
- Dripping device
- The drop height is adjustable from 30mm to 40mm, the drop size is 44 to 50 drops/cm3, and the drop time interval is 30 +/- 1 second
- Product Features

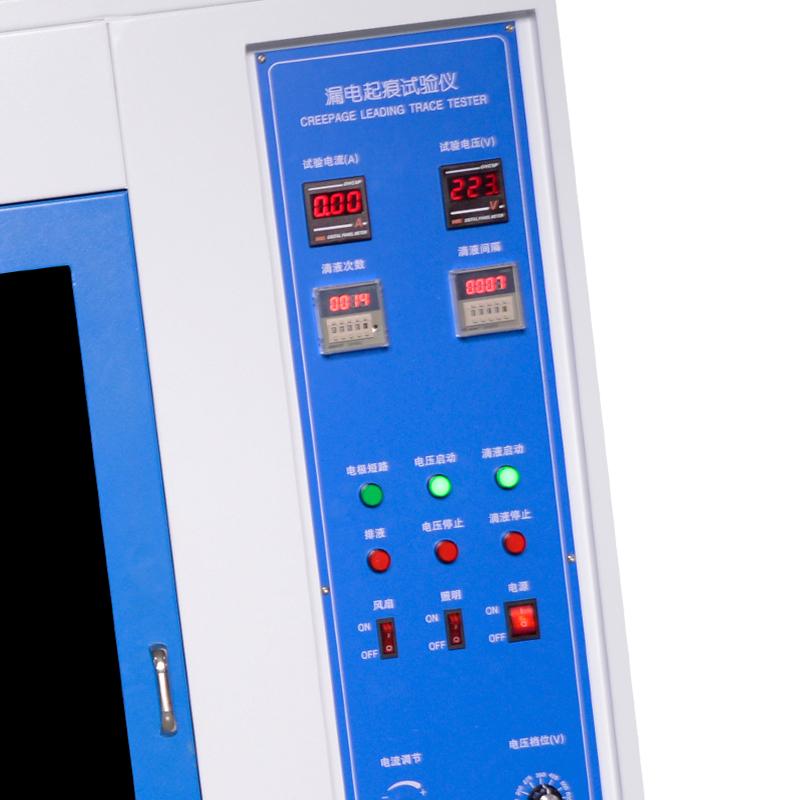

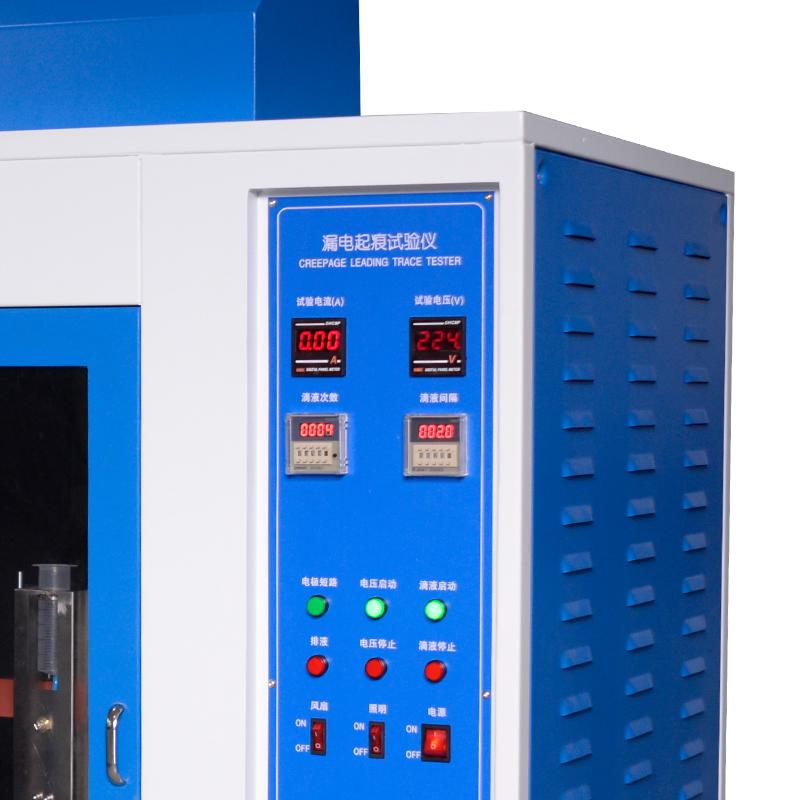

- The test chamber structure is made of stainless steel or brass, the electrode head is platinum metal, high temperature and corrosion resistance, accurate drop count, and stable and reliable Control system.
- Power
- AC 220V，50Hz
Guideline
IEC60335, GB4706.1, IEC60884-1, GB2099.1, GB/T4207-2003, IEC60112.
Technical Description
This product is used in electrical products under the influence of humidity and impurity environment, which may cause insulation leakage between live parts of different polarities or between live parts and grounded metal parts. Discharge can corrode materials and even ignite causing fires. This test instrument is a destructive test for insulating materials that simulates the above situation. It is used to test and evaluate the relative tracking resistance of the insulator under the action of the electric field and impurity water under the specified Voltage. Suitable for electrical and electronic products, solid electrical insulation materials for household appliances and their products, such as: relay sockets, transfer switch covers, contactor bodies, etc.
