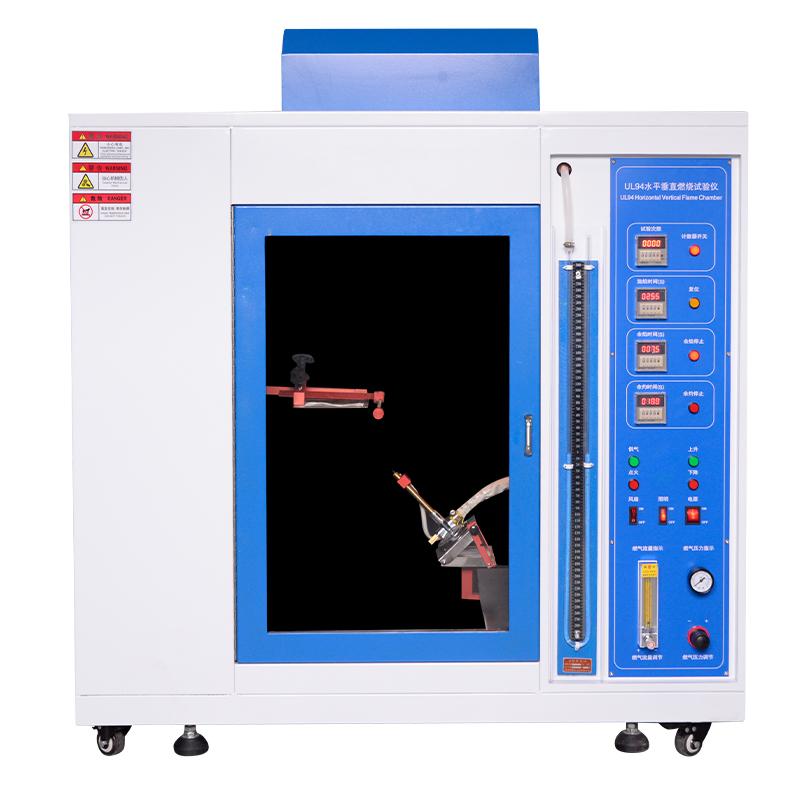

YOUKE YK3050 Horizontal and vertical combustion tester
SE
YK3050
YouKe YK3050 Horizontal and vertical combustion testerSPEC
YouKe YK3050 Horizontal and vertical combustion testerDetails
YouKe YK3050 Horizontal and vertical combustion testerPacking list
- SKU
- NB036478
- test space
- ≥ 0.5 cubic meters with Glass observation door
- Flame time
- 0~ 99 minutes and 99 seconds can be set
- afterflame time
- 0~ 99 minutes and 99 seconds can be set
- afterflame time
- 0~ 99 minutes and 99 seconds can be set
- Combustion angle
- 20 °, 45 °, 90 ° (ie 0 °) adjustable
- Combustion dimension parameters
- The inner diameter of the nozzle is Ø 9.5mm, the effective length of the nozzle is 100mm, and there are air conditioning holes.
- flame height
- Adjustable from 20mm to 175mm according to standard requirements
- Sample method
- The front and rear of the motor drive are aligned with the spline up and down.
- Power
- AC 220V/50H
- Control mode
- Panel button control
- insulation grade
- Class F
- Protection class
- IP20 (suitable for indoor use)
- Fan noise
- 45 decibels
- Exhaust gas emission method
- Side wind, top wind
- way of working
- Can work continuously
- Applicable environment temperature
- -10℃～+50℃
- Mobile mode
- Adopt load-bearing universal casters, 2 at the front and rear
- Applicable relative humidity
- ≤95%
- altitude
- ≤ 2500 meters
Guideline
UL94, GBT2408
Technical Description
This tester is suitable for inspecting and evaluating the combustion characteristics of plastic materials. It is designed and manufactured according to the relevant provisions stipulated in the US UL94 standard and GBT2408 standard "Flammability Test of Plastic Materials for Equipment and Appliance Parts". Carry out horizontal and vertical flammability tests, and is equipped with a gas flow meter to adjust the size of the flame, and the operation is simple and safe. This instrument can evaluate the flammability of materials or foam plastics, such as: V-0, V-1, V-2, HB, 5V, HF-1, HF-2, HBF levels.
Features

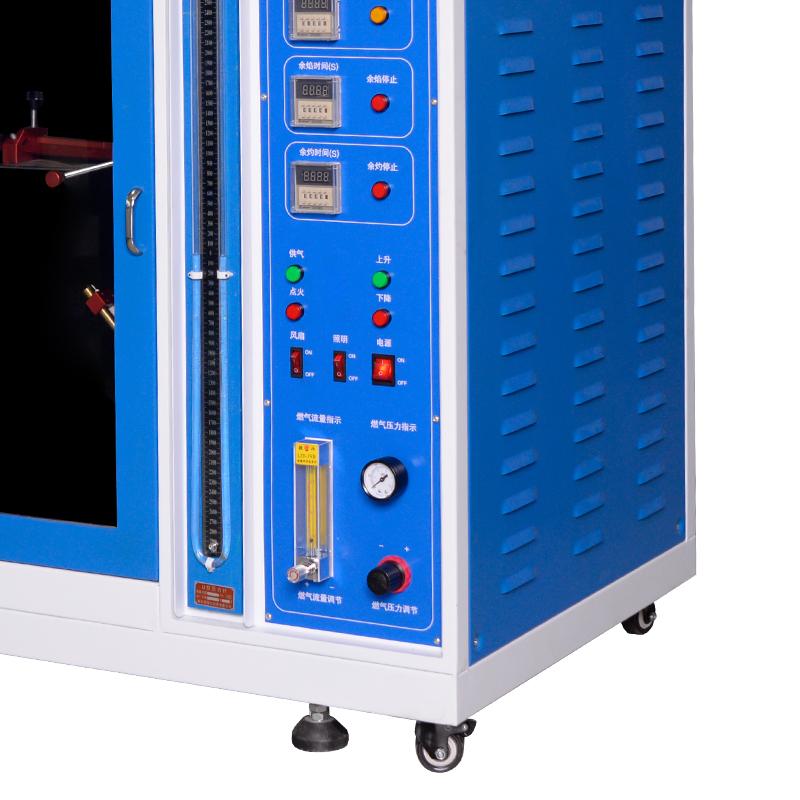

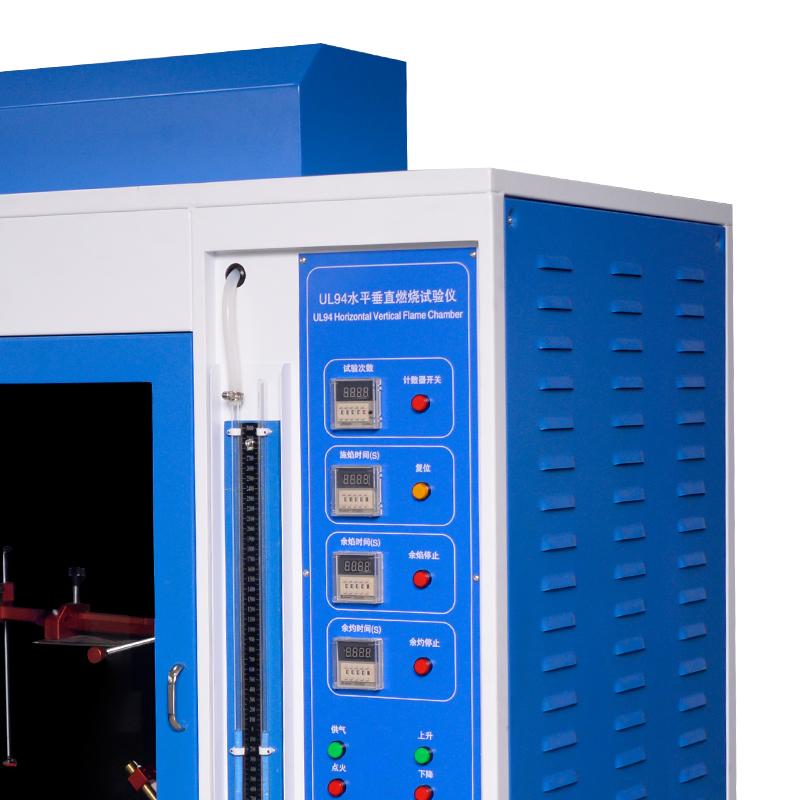

It is also equipped with lighting device, air extraction device, gas flow regulating valve, gas pressure gauge, gas pressure regulating valve, gas flow meter, gas U-shaped pressure gauge and sample fixture
Protective function
Combustible gas concentration detection and alarm: When the combustible gas concentration in the combustion box exceeds the standard, the machine will automatically cut off the gas supply and send out an alarm prompt, and start the exhaust system to start exhausting until the air quality in the combustion box returns to normal
