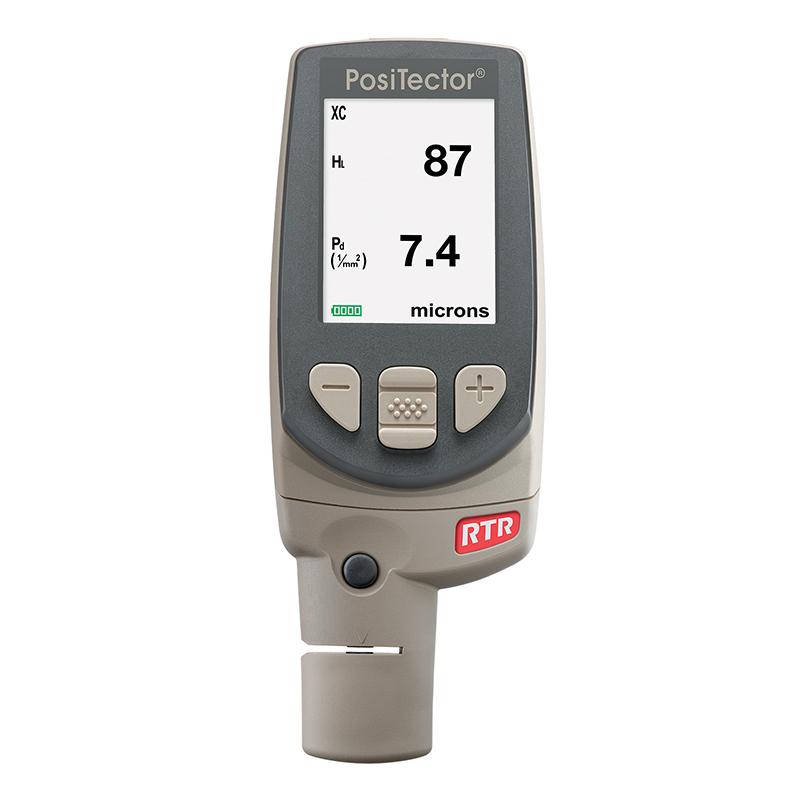

Defelsko digital Surface Roughness Tester PosiTector RTR P3 can output 2D/3D pictures

Advanced RTRP3-E

Surface profile measuring instrument

PosiTector RTR P3Introduction to Digital Surface Roughness Tester

Defelsko The PosiTector RTR P3 is an advanced digital surface roughness meter, a high-end surface profile gauge that measures both peak height and density, and is capable of outputting 2D/3D images as well as high-resolution SDF files for 3D graphical analysis of the surface of the material being measured.PosiTector RTR P3The measured peak height value of the digital surface roughness meter is 20~115μm, and the accuracy is ±5μm.

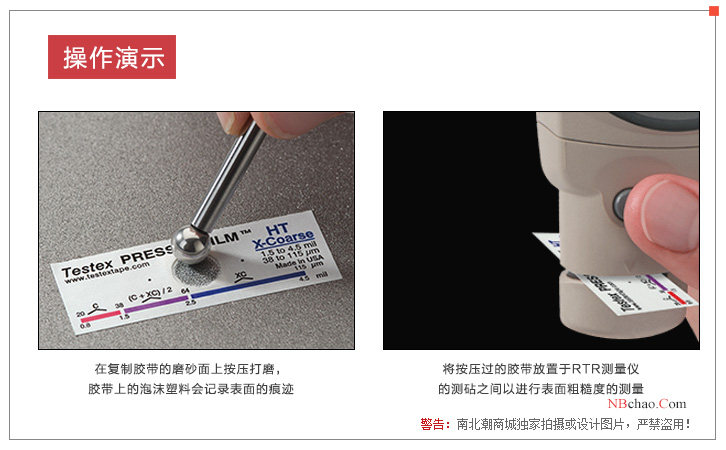

Test schematic

PosiTector RTR P3Advantages of digital surface roughness Tester

RTR P3 Digital Surface Roughness TesterIn addition to the general features of the PosiTector RTR series, the following benefits include:

1. High-resolution color LCD screen

2. Up to 100,000 measurement readings are stored, 1,000 batches

3. The peak height and peak density can be measured at the same time

4. Able to display 2D/3D pictures and output high-resolution SDF files

5. WiFi technology, wireless connection to PosiSoft, download software updates and connect to wireless devices to expand functions

6. Bluetooth wireless technology transmits data to the computer

7. Real-time graphics, picture prompts and batch display

PosiTector RTR P3Applicable standards for digital surface roughness Testers

accord withASTM D4417, NACE RP0287, SSPC PA 17, SSPC-SP5, SP6, SP10, SP11-87T, AS 3894.5, ISO 8503-5 and other international standards.

Comparison of parameters of PositTector RTR series

Model	PosiTector RTR H1	PosiTector RTR H3	PosiTector RTR P1	PosiTector RTR P3
Host type	Standard	Advanced	Standard	Advanced
Probe type	PRBRTRH		PRBRTRP
Measuring Peak (HL)	●	●	●	●
Measured peak density (Pd)			●	●
Output 2D/3D images				●
Save the SDF surface data file				●
Peak (HL) measurement range	20~115 μm (0.8 to 4.5 mils)
peak(HL) accuracy	±5 μm (±0.2 mils)
peak(HL) resolution	±1 μm (±0.2 mils)
Anvil diameter	Ø6.3 mm (Ø0.25 inch)
Anvil pressure	110g (1.1N)
size	152x61x28mm
weight	140g
standard	ASTM D4417、NACE RP0287、SSPC PA 17、SSPC-SP5、SP6、SP10、SP11-87T、AS 3894.5、ISO 8503-5等

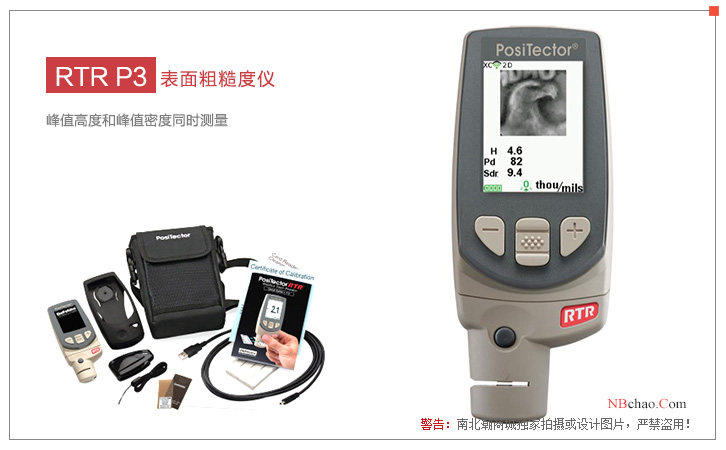

Packing list：Host x1, Glass zero adjusting plate x1, metal gasket x1, protective rubber cover and belt clip x1, wrist strap x1, battery x3, manual x1, nylon bag and shoulder strap x1, mirror protective film x1, calibrate certificate x1, USB cable x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
