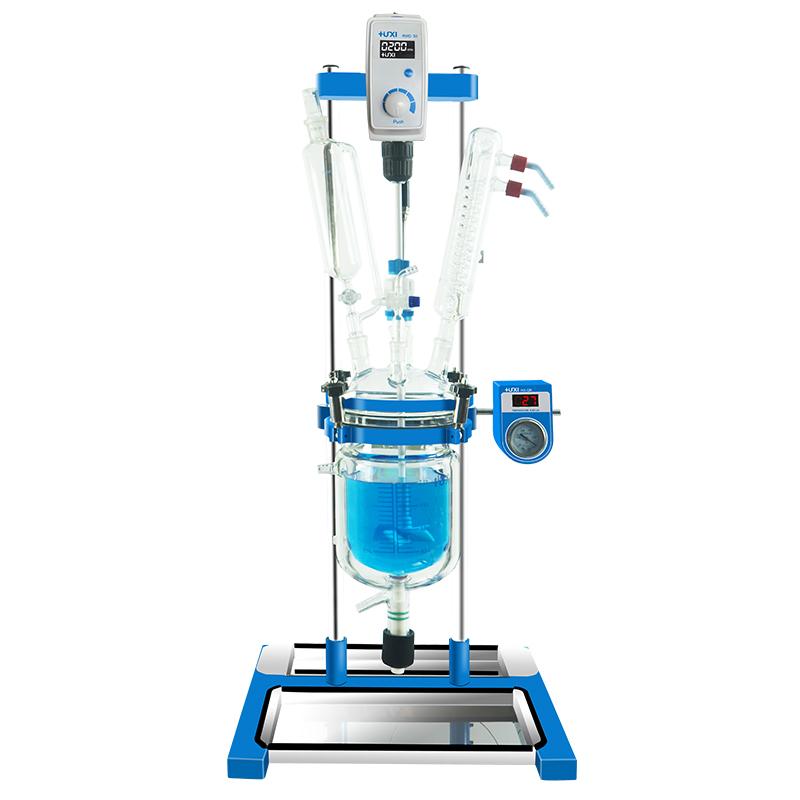

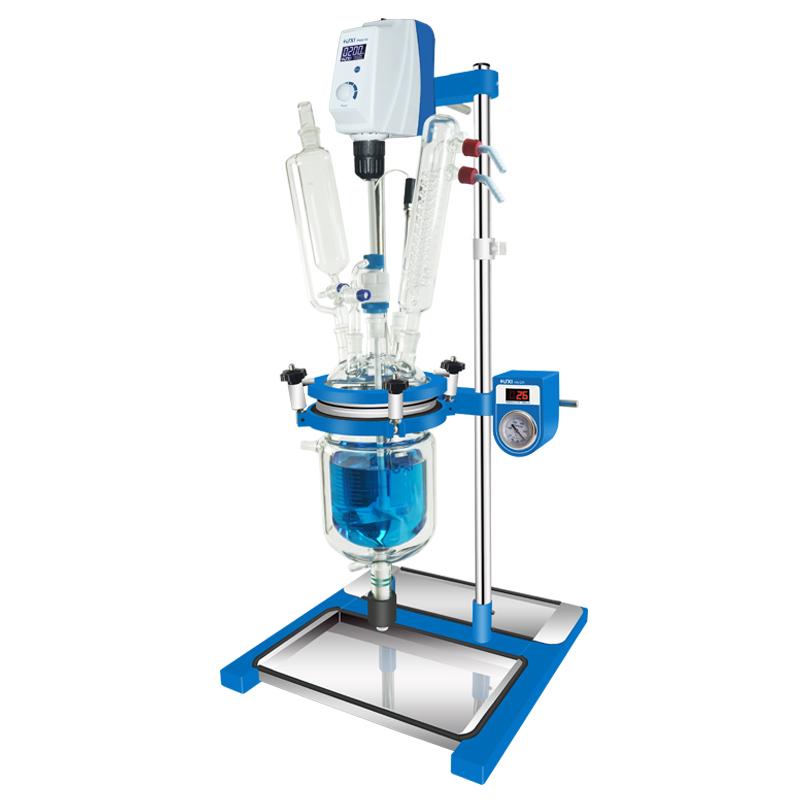

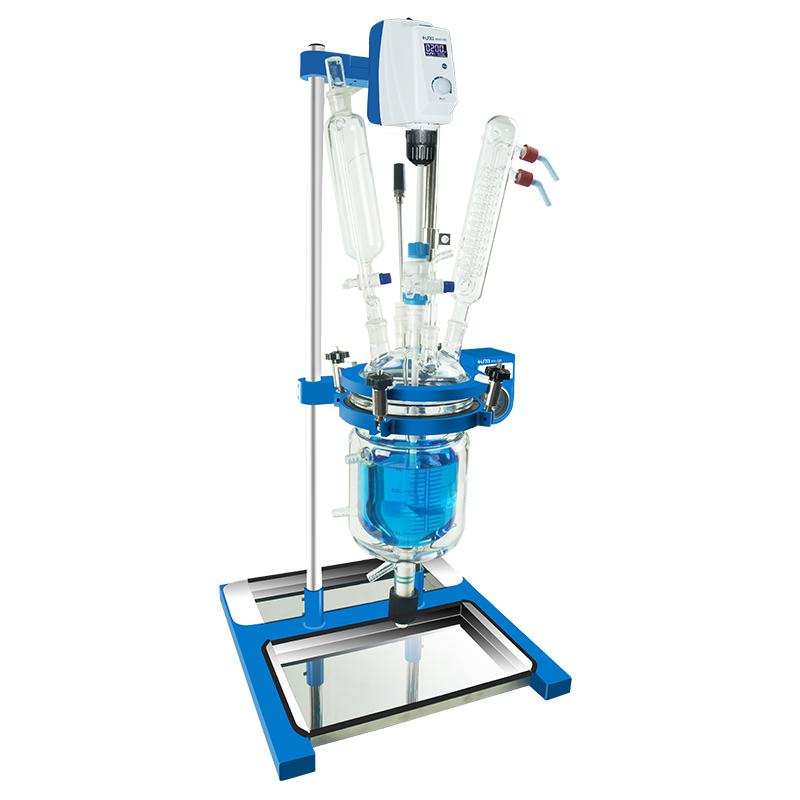

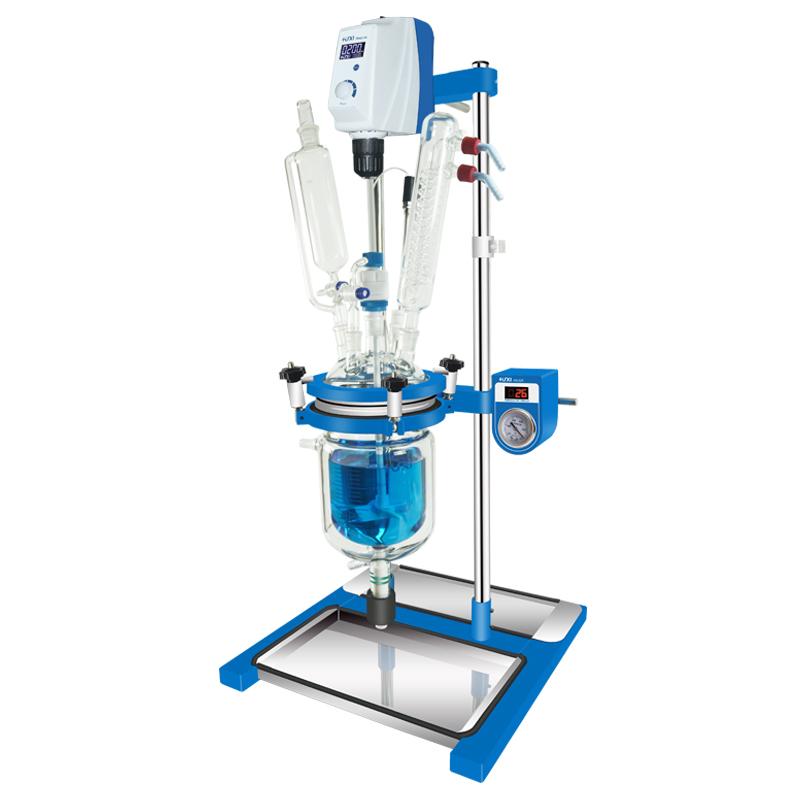

HF-1L frequency conversion speed regulation Glass reaction kettle
SE
HF-1L
HuXi HF-1L Glass reaction kettleSPEC
HuXi HF-1L Glass reaction kettleDetails
HuXi HF-1L Glass reaction kettlePacking list
- SKU
- NB036493
- Effective Volume in kettle
- 1L
- Kettle body jacket Volume
- About 0.3L
- Condenser condensation area
- About 0.025 ㎡
- Constant pressure funnel Volume
- 200ml
- Cover size
- 180MM
- Container size
- 150MM
- Number of kettle cover openings
- 5
- Stirring insertion hole
- 24 #standard grinding mouth
- Insertion hole of temperature transducer
- 24 #standard grinding mouth
- Condenser Connector
- 24 #standard grinding mouth
- Liquid feeding port
- 19 #standard grinding mouth
- Constant Voltage funnel interface
- 24 #standard grinding mouth
- Glass components
- High Borosilicate Glass 3.3
- Kettle Body Operating Temperature
- -80~200℃
- Limit of temperature difference between inside and outside the kettle body
- ≤80℃
- Pressure in kettle
- -0.1~0.0MPa
- Jacket pressure
- ≤+0.03MPa
- Vacuum system boost rate
- ≤ 2kPa / h
- Stirring Configuration
- RWD50 Top Stir
- Speed regulation
- Crude and fine tuning
- Speed range
- 50~500rpm
- Speed display
- LCD
- Timer
- 1~9999min
- Stir time settings
- Yes.
- Speed display resolution
- ±1rpm
- Speed memory
- Yes.
- Torque
- 70N.cm
- Viscosity
- ≤10000mPas
- Impeller fixing method
- Self-locking chuck
- Drill chuck clamping diameter range
- 0.5~10mm
- Overload protection
- Display fault, stop automatically
- Motor protection
- Display fault, stop automatically
- Motor rated power
- 70W
- Impeller
- PTFE four-blade stirringrod diameter 8mm length 650mm
- Temperature transducer type
- Pt100
- Temperature display Accuracy
- ±0.1℃
- Seal material
- PTFE
- Discharge valve installation height
- 100-210mm (adjustable)
- Discharge method
- knob
- Fixed rod material
- stainless steel
- Impeller Connectivity
- self-tightening
- Operating conditions temperature
- 5~35℃
- Environment Relative Humidity
- ≤ 65%
- Environment humidity
- ≤70%
- Shell protection grade
- IP20
- Anti-pollution level
- Level 2
- Condenser chilled down water interface
- 10MM
- Kettle circulating water interface
- 14MM
- Discharge interface
- 20MM
- Vacuum interface
- 10MM
Applications
HF-series variable frequency speed regulating glass reactor is mainly used for the synthesis reaction of materials, by injecting a certain temperature of circulating liquid into the interlayer of the reactor, the materials in the inner layer of the kettle are reacted at the required temperature. The kettle can be pumped to vacuum as needed, so that the material can react under negative pressure. By adjusting the constant pressure funnel on the control valve on the outlet pipe, the uniform dropping of the material can be controlled. The heat exchange function of the condenser can be used to distill and recover the reaction products.
Features
The glass parts are made of high borosilicate glass, which has excellent corrosion resistance, high-low temperature resistance. At the same time, the linear expansion coefficient is low and can withstand large thermal shock;
Detachable, no dead space discharge valve, convenient for the discharge of reactor materials;
Standardized connection method, easy and quick to disassemble;
The temperature vacuum test unit is convenient to accurately grasp the temperature and vacuum degree in the kettle;
In the vacuum state, the negative pressure can reach 0. 095MPa；
Overhead agitator and equipped with imported stirring bearing sleeve;
All parts in contact with the liquid are made of high borosilicate glass or PTFE material, which has excellent corrosion resistance;
