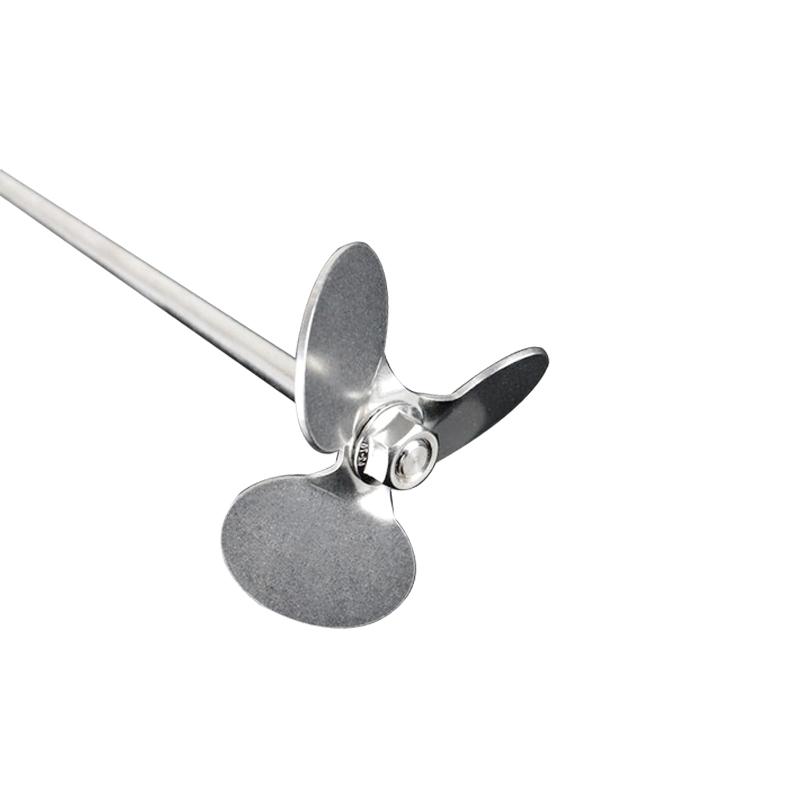

HUXI 20030089 Three-blade Impeller (not sold separately)
SE
20030089
HuXi 20030089 Three Blade ImpellerSPEC
HuXi 20030089 Three Blade ImpellerDetails
HuXi 20030089 Three Blade ImpellerPacking list
- SKU
- NB036519
- Blade width
- 70mm
- Propeller height
- 1.8mm
- Rod diameter
- 6mm
- rod length
- 300mm
Introduction
This four-blade impeller is a medium to high speed stirring element, made of stainless steel, the paddle width is 70mm, the paddle height is 1.8mm, the stem diameter is 6mm, and the rod length is 300mm.
A full range of stainless steel impellers
1. Round three-hole fan-type stirring paddle
Application: Gentle stirring performance, medium and low speed use, used in the medium that needs to be gentle and stirred.
| Catalog number | Slurry diameter mm | Rod diameter mm | Rod length mm |
| 20030041 | 50 | 8 | 300 |
| 20030042 | 50 | 8 | 400 |
| 20030043 | 50 | 8 | 500 |
| 20030040 | 70 | 8 | 300 |
| 20030003 | 70 | 8 | 350 |
| 20030044 | 100 | 10 | 300 |
| 20030045 | 100 | 10 | 400 |
| 20030046 | 100 | 10 | 500 |
2. Dissolving stirring paddle
Application: Medium and high speed use, so that the mixed medium from the top and bottom to produce radial flow, the formation of strong turbulence and high shear force can crush the particles in the liquid, suitable for medium and high viscosity liquids.
| Catalog number | Slurry diameter mm | Rod diameter mm | Rod length mm |
| 20030051 | 30 | 8 | 350 |
| 20030052 | 40 | 8 | 350 |
| 20030007 | 50 | 8 | 350 |
| 20030053 | 60 | 8 | 350 |
| 20030054 | 80 | 8 | 350 |
| 20030055 | 100 | 8 | 350 |
| 20030056 | 120 | 8 | 350 |
| 20030057 | 150 | 8 | 350 |
3. Three-blade stirring paddle
Application: Stainless steel material, so that the mixed medium flows axially from top to bottom, generating local shear force, which can be used at medium and high speeds.
| Catalog number | Paddle width mm | The paddles are high mm | Rod diameter mm | Rod length mm |
| 20030087 | 70 | 1.5 | 6 | 300 |
| 20030086 | 70 | 1.5 | 6 | 350 |
| 20030089 | 70 | 1.8 | 6 | 300 |
| 20030088 | 70 | 1.8 | 6 | 350 |
| 20030085 | 70 | 1.5 | 8 | 300 |
| 20030002 | 70 | 1.5 | 8 | 350 |
| 20030091 | 70 | 1.8 | 8 | 300 |
| 20030090 | 70 | 1.8 | 8 | 350 |
4. Centrifugal stirring paddle
Application: Folding stirring paddle, the two blades expand with the increase of speed, medium and high speed use, suitable for narrow mouth container paddle height 10mm.
| Catalog number | Slurry diameter mm | Rod diameter mm | Rod length mm |
| 20030064 | 90 | 8 | 300 |
| 20030005 | 90 | 8 | 350 |
| 20030065 | 90 | 8 | 400 |
| 20030066 | 90 | 8 | 500 |
| 20030067 | 90 | 10 | 300 |
| 20030068 | 90 | 10 | 400 |
| 20030073 | 90 | 10 | 500 |
| 20030074 | 90 | 10 | 650 |
5. Four-blade stirring paddle
Application: Standard stirring paddle, stainless steel, medium and high speed use, suitable for medium and low viscosity.
| Catalog number | Slurry diameter mm | Rod diameter mm | Rod length mm |
| 20030035 | 50 | 8 | 300 |
| 20030001 | 50 | 8 | 400 |
| 20030094 | 50 | 8 | 350 |
| 20030037 | 50 | 8 | 500 |
| 20030038 | 100 | 10 | 300 |
| 20030036 | 100 | 10 | 400 |
| 20030039 | 100 | 10 | 500 |
6. Screw stirring paddle
Application: Slow stirring paddle, often operated in the laminar flow zone, the liquid rises or falls along the spiral surface to form an axial up and down circulation, suitable for the mixing and heat transfer of medium and high viscosity liquids.
| Catalog number | Slurry diameter mm | Rod diameter mm | Rod length mm |
| 20030075 | 50 | 8 | 350 |
| 20030076 | 60 | 8 | 350 |
| 20030077 | 70 | 8 | 350 |
| 20030078 | 80 | 8 | 350 |
| 20030079 | 90 | 8 | 350 |
| 20030080 | 100 | 8 | 350 |
7. Round six-hole fan-type stirring paddle
Application: Tangential flow is produced during stirring, small turbulence, good heat exchange performance, mild stirring performance, medium and low speed use.
| Catalog number | Slurry diameter mm | Rod diameter mm | Rod length mm |
| 20030058 | 50 | 8 | 300 |
| 20030059 | 50 | 8 | 400 |
| 20030096 | 50 | 8 | 350 |
| 20030060 | 50 | 8 | 500 |
| 20030062 | 100 | 10 | 300 |
| 20030095 | 100 | 10 | 350 |
| 20030063 | 100 | 10 | 400 |
| 20030061 | 100 | 10 | 500 |
8. Slotted stirring paddle
Application: Stainless steel, medium to high speed use, suitable for medium and low viscosity mixing.
| Catalog number | Slurry diameter mm | Rod diameter mm | Rod length mm |
| 20030033 | 50 | 8 | 300 |
| 20030032 | 50 | 8 | 400 |
| 20030034 | 50 | 8 | 500 |
| 20030031 | 60 | 8 | 300 |
| 20030004 | 60 | 8 | 350 |
9、Round anchor impeller
Application: Tangential flow is generated during stirring, and a high shear rate is formed at the edge, so that the mixed medium is not easy to deposit on the vessel wall, and is suitable for low speeds.
| Catalog number | Paddle width mm | The paddles are high mm | Rod diameter mm | Rod length mm |
| 20030092 | 100 | 60 | 8 | 300 |
| 20030093 | 100 | 60 | 8 | 350 |
10. Square anchor stirring paddle
Application: Low speed use, tangential flow, high shear rate formed at the edge, so that the mixed medium is not easy to be deposited on the container wall, suitable for polymer reaction and dispersion of minerals in liquid, is a satisfactory stirring element for medium and high viscosity fluids.
| Catalog number | Paddle width mm | Rod diameter mm | Rod length mm |
| 20030047 | 70 | 8 | 300 |
| 20030006 | 70 | 8 | 350 |
| 20030048 | 70 | 8 | 500 |
| 20030049 | 90 | 10 | 650 |
| 20030050 | 140 | 10 | 800 |
11. Quadrangular fan-type stirring paddle
Application: Stainless steel, medium and low speed use
| Catalog number | Paddle width mm | Rod diameter mm | Rod length mm |
| 20030081 | 50 | 8 | 350 |
| 20030082 | 60 | 8 | 350 |
| 20030083 | 60 | 8 | 350 |
| 20030084 | 70 | 8 | 350 |
