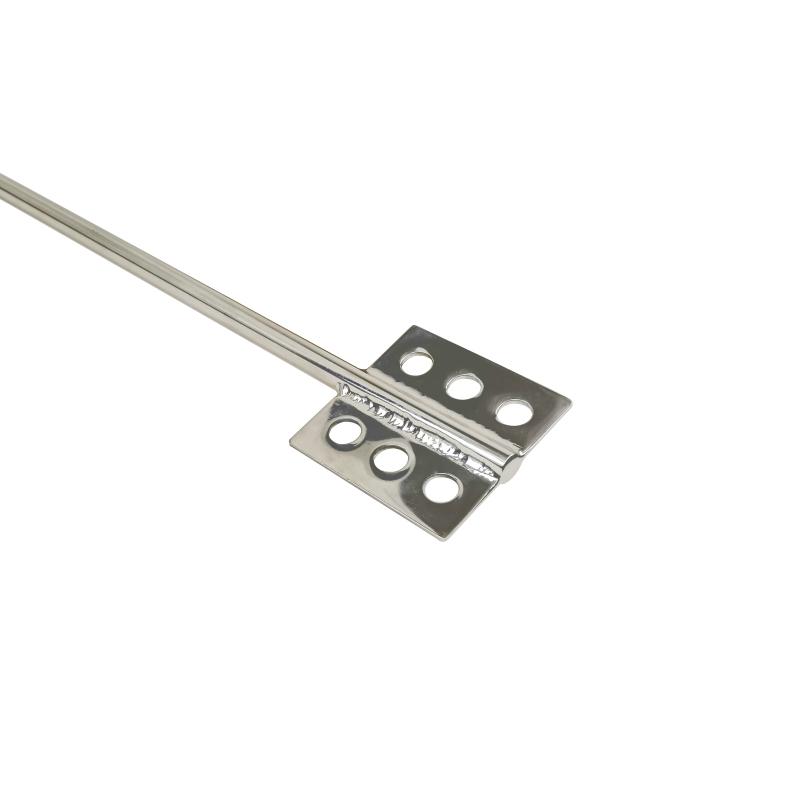

HUXI 20030062 Round Six Hole Fan Impeller (not sold separately)
SE
20030062
HuXi 20030062 Round Six Hole Fan ImpellerSPEC
HuXi 20030062 Round Six Hole Fan ImpellerDetails
HuXi 20030062 Round Six Hole Fan ImpellerPacking list
- SKU
- NB036551
- Slurry diameter
- 100mm
- Rod diameter
- 10mm
- rod length
- 300mm
Introduction
This round six-hole fan-type impeller is a kind of impeller with mild stirring performance and suitable for medium and low speeds. It is made of stainless steel, with a blade diameter of 100mm, a rod diameter of 10mm, and a rod length of 300mm.
A full range of stainless steel stirring paddles
1. Round three-hole fan-type stirring impeller
Application: Stirring performance is mild, used at medium and low speeds, and used in mediums that need to be soft and stirred.
| Item No. | Paddle diameter mm | Rod diameter mm | Rod length mm |
| 20030041 | 50 | 8 | 300 |
| 20030042 | 50 | 8 | 400 |
| 20030043 | 50 | 8 | 500 |
| 20030040 | 70 | 8 | 300 |
| 20030003 | 70 | 8 | 350 |
| 20030044 | 100 | 10 | 300 |
| 20030045 | 100 | 10 | 400 |
| 20030046 | 100 | 10 | 500 |
2. Dissolving stirring paddle
Application: Used at medium and high speeds to make the mixed medium flow radially from top to bottom, forming strong turbulent flow and high shear force to crush particles in the liquid, suitable for medium and high viscosity liquids.
| Item No. | Paddle diameter mm | Rod diameter mm | Rod length mm |
| 20030051 | 30 | 8 | 350 |
| 20030052 | 40 | 8 | 350 |
| 20030007 | 50 | 8 | 350 |
| 20030053 | 60 | 8 | 350 |
| 20030054 | 80 | 8 | 350 |
| 20030055 | 100 | 8 | 350 |
| 20030056 | 120 | 8 | 350 |
| 20030057 | 150 | 8 | 350 |
3. Three-blade stirring paddle
Application: Made of stainless steel, the mixed medium flows axially from top to bottom to generate local shear force, and can be used at medium and high speeds.
| Item No. | Paddle width mm | Paddle height mm | Rod diameter mm | Rod length mm |
| 20030087 | 70 | 1.5 | 6 | 300 |
| 20030086 | 70 | 1.5 | 6 | 350 |
| 20030089 | 70 | 1.8 | 6 | 300 |
| 20030088 | 70 | 1.8 | 6 | 350 |
| 20030085 | 70 | 1.5 | 8 | 300 |
| 20030002 | 70 | 1.5 | 8 | 350 |
| 20030091 | 70 | 1.8 | 8 | 300 |
| 20030090 | 70 | 1.8 | 8 | 350 |
4. Centrifugal stirring paddle
Application: Foldable stirring paddle, the two blades expand with the increase of speed, used at medium and high speeds, suitable for narrow-mouth containers with a paddle height of 10mm.
| Item No. | Paddle diameter mm | Rod diameter mm | Rod length mm |
| 20030064 | 90 | 8 | 300 |
| 20030005 | 90 | 8 | 350 |
| 20030065 | 90 | 8 | 400 |
| 20030066 | 90 | 8 | 500 |
| 20030067 | 90 | 10 | 300 |
| 20030068 | 90 | 10 | 400 |
| 20030073 | 90 | 10 | 500 |
| 20030074 | 90 | 10 | 650 |
5. Four-blade stirring paddle
Application: standard stirring impeller, made of stainless steel, used in medium and high speed, suitable for medium and low viscosity.
| Item No. | Paddle diameter mm | Rod diameter mm | Rod length mm |
| 20030035 | 50 | 8 | 300 |
| 20030001 | 50 | 8 | 400 |
| 20030094 | 50 | 8 | 350 |
| 20030037 | 50 | 8 | 500 |
| 20030038 | 100 | 10 | 300 |
| 20030036 | 100 | 10 | 400 |
| 20030039 | 100 | 10 | 500 |
6. Screw type stirring paddle
Application: Slow-speed stirring impeller, often operated in the laminar flow area, the liquid rises or falls along the helical surface to form an axial up and down circulation, suitable for mixing and heat transfer of medium and high viscosity liquids.
| Item No. | Paddle diameter mm | Rod diameter mm | Rod length mm |
| 20030075 | 50 | 8 | 350 |
| 20030076 | 60 | 8 | 350 |
| 20030077 | 70 | 8 | 350 |
| 20030078 | 80 | 8 | 350 |
| 20030079 | 90 | 8 | 350 |
| 20030080 | 100 | 8 | 350 |
7. Round six-hole fan-type stirring impeller
Application: Tangential flow is generated when stirring, small turbulent flow, good heat exchange performance, mild stirring performance, and medium and low speed use.
| Item No. | Paddle diameter mm | Rod diameter mm | Rod length mm |
| 20030058 | 50 | 8 | 300 |
| 20030059 | 50 | 8 | 400 |
| 20030096 | 50 | 8 | 350 |
| 20030060 | 50 | 8 | 500 |
| 20030062 | 100 | 10 | 300 |
| 20030095 | 100 | 10 | 350 |
| 20030063 | 100 | 10 | 400 |
| 20030061 | 100 | 10 | 500 |
8. One-word stirring paddle
Application: Stainless steel material, medium and high speed use, suitable for medium and low viscosity mixing.
| Item No. | Paddle diameter mm | Rod diameter mm | Rod length mm |
| 20030033 | 50 | 8 | 300 |
| 20030032 | 50 | 8 | 400 |
| 20030034 | 50 | 8 | 500 |
| 20030031 | 60 | 8 | 300 |
| 20030004 | 60 | 8 | 350 |
9. Round anchor stirring paddle
Application: Tangential flow is generated when stirring, and high shear rate is formed at the edge, so that the mixed medium is not easy to deposit on the container wall, and it is suitable for low speed.
| Item No. | Paddle width mm | Paddle height mm | Rod diameter mm | Rod length mm |
| 20030092 | 100 | 60 | 8 | 300 |
| 20030093 | 100 | 60 | 8 | 350 |
10. Square anchor stirring paddle
Application: Use at low speed, generate tangential flow, and form high shear rate at the edge, so that the mixed medium is not easy to deposit on the container wall. It is suitable for polymer reaction and dispersion of minerals in liquid. It is a satisfactory stirring element for medium and high viscosity fluids.
| Item No. | Paddle width mm | Rod diameter mm | Rod length mm |
| 20030047 | 70 | 8 | 300 |
| 20030006 | 70 | 8 | 350 |
| 20030048 | 70 | 8 | 500 |
| 20030049 | 90 | 10 | 650 |
| 20030050 | 140 | 10 | 800 |
11. Square hole fan type stirring impeller
Application: Stainless steel material, used at medium and low speeds
| Item No. | Paddle width mm | Rod diameter mm | Rod length mm |
| 20030081 | 50 | 8 | 350 |
| 20030082 | 60 | 8 | 350 |
| 20030083 | 60 | 8 | 350 |
| 200300 84 | 70 | 8 | 350 |
