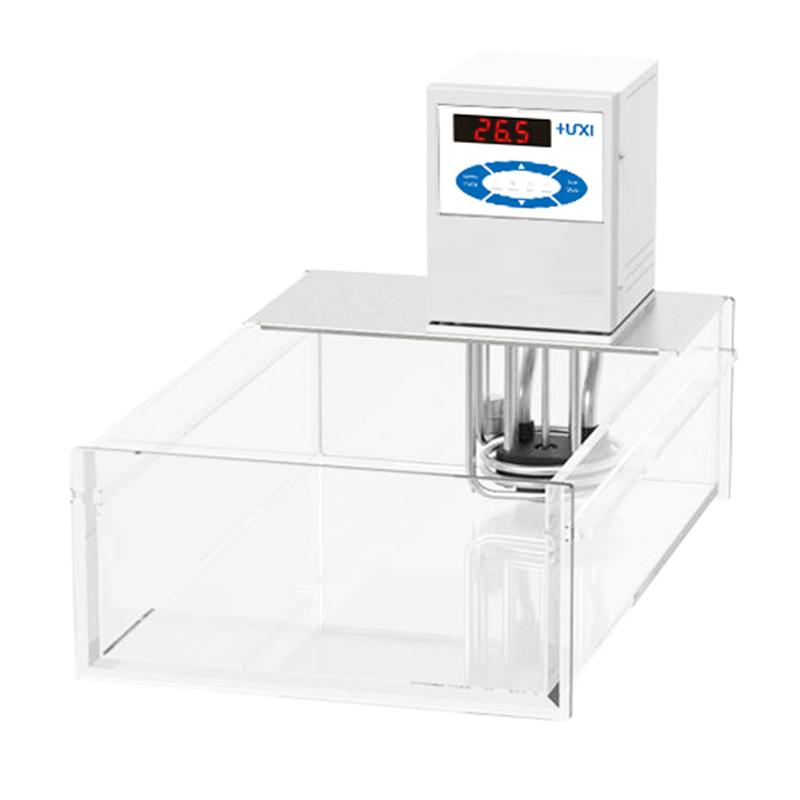

HLC-120AR Open Thermostat

HLC-120AR

Open Thermostat

Water tank volume 20L, Temperature range RT + 10 ℃~ 100 ℃, Accuracy ± 0.05~ 0.1, Heating power 2000W, LED display, Low level protection, High temperature protection, Internal and external circulation flow 22L/min, 10mm pagoda connector

Applications

The open high-temperature constant temperature tank has transparent windows on four sides, and the change process of the fluid or experimental reaction in the tank can be observed from various angles. The instrument is equipped with a heating system, and the temperature range is from RT+10 to 100 ℃. Using PID temperature control technology, the temperature fluctuation value can reach ±0.05~0.1℃. It is suitable for constant temperature experiments such as capillary viscometer and density meter.

Features

• The four sides of the constant temperature tank are transparent, and the color, flow and chemical reaction of the liquid medium to be controlled can be observed;

• The transparent material is made of polycarbonate, which has high strength and modulus of elasticity, high impact strength, wide temperature range, good transparency, weather resistance, abrasion resistance, corrosion resistance to various chemicals, good stability, and better High temperature performance;

• Pressure suction pump: large flow, stable water flow, no splash, can withstand the temperature of -80~350 ℃ for a long time;

• Centrifugal mixing technology: pressure suction pump has jet jet mixing internal circulation technology, better temperature uniformity;

• Imported temperature sensor: high-precision four-wire imported PT100 temperature sensor, which can be used for temperature calibration;

• Low liquid level protection: light and sound can be reminded at the same time when alarming.

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
