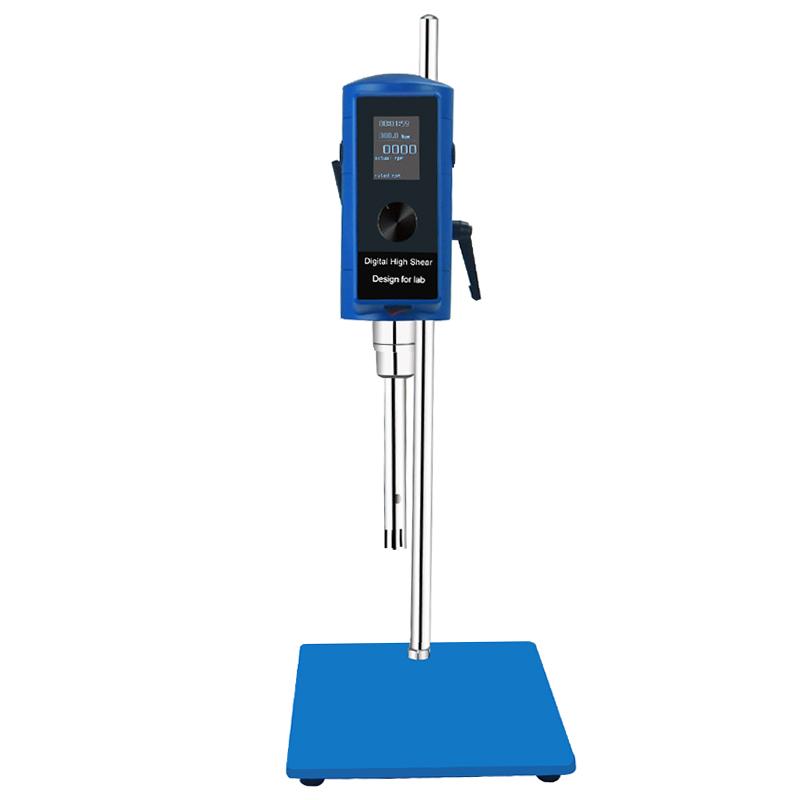

HUXI HR-500DG/12G High shear homogeneous Mulser 30~ 800ml/1000cp
SE
HR-500DG/12G
HuXi HR-500DG/12G High shear homogeneous MulserSPEC
HuXi HR-500DG/12G High shear homogeneous MulserDetails
HuXi HR-500DG/12G High shear homogeneous MulserPacking list
- SKU
- NB036630
- Speed range
- 2000~23000rpm
- Work head specification
- 12G
- Rated Frequency
- 50/60HZ
- Input Power
- 850W
- output power
- 500W
- Rated torque
- 17.1N.cm
- Duty Cycle
- S1 (continuous)
- Control mode
- Combined control knob
- Rated Voltage
- AC220V
- Speed regulation mode
- stepless speed regulation
- Rotation speed display
- LED
- Timer Range
- 99h59min59s
- Work head Max Torque
- 17N.cm
- Work head material
- SS 304 stainless steel
- Environmental temperature
- Not more than 40 ° C
- Allowable Relative Humidity
- ≤80%
- Dimension
- 215*310*720mm
- Machine Weight
- 8.7kg
- Processing Capacity
- 30~800ml
- Max. Processing Viscosity
- 1000mpa·s
- Rotor maximum linear speed
- 11m/s
- Intrusive liquid height
- 25/85mm
- stator diameter
- Φ12mm
- Working head length
- 150mm
- operating temperature
- 120℃
- Work head material
- SS304
- Working head bearing material
- PTEE
- material
- stainless steel
- principle
- Through the high-speed swirling/spinning of the working head, strong shear force, Impact force and centrifugal force are generated, so that the material can achieve emulsification, homogenization and dispersion in a short time.
- function
- Material emulsification, homogenization, dispersion and refinement.
Applications
The high-shear homogeneous emulsifier combines dexterity and convenience. It can be operated by hand. Choose a good motor, more stable operation, less noise. It can run for a long time, and a variety of working heads are available for selection, which can realize vacuum operation and easily meet a variety of high-demand dispersion, emulsification, and homogeneous experimental requirements.
Features
Select good motor, stable operation, less noise, safe and reliable design;
The parts of the working head in contact with the material are all made of high-quality stainless steel, which has good corrosion resistance;
The working head is connected with the driving motor by a coupling, which is easy and flexible to disassemble and assemble;
The speed regulating base adopts stepless speed governor, which is convenient for speed regulation and stable in operation.
