Specifications
| Display | LCD liquid crystal with blue backlight |
| Measuring range | 10~100000mPa·s |
| Rotor Specifications | 1#、2#、3#、4# |
| Rotor speed | 6/12/30/60rpm |
| Reproducibility | ±0.5%F.S |
| Measurement Accuracy | ±1% |
| Power | AC100-240V，50Hz/60Hz，DC17V1.2A |
| Data Interface | RS232 |
| Temperature transducer | RTD temperature probe |
| Weight | 9.6kg |
| Collection method | continuous acquisition |
| Encasement material | Five-layer cardboard |
| Capacity | 300~400ml |
| Capacity | 400Ml (self-prepared) |
| Lifting system | PE lifting system |
| Bearing system | ruby |
| Torque material | beryllium bronze |
| Control system | microcomputer |
| Encasement | aluminum alloy |
Packing list

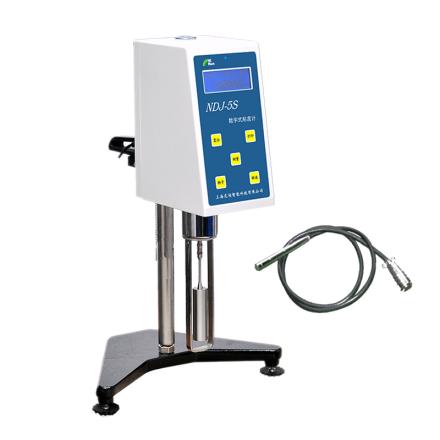

Host x1, one rotor each for 1 #, 2 #, 3 #, and 4 #, RTD temperature probe X1, manual x1, warranty card x1.
After-sales instructions
Warranty days: 730 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/36710/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
