RDS #9 wire-wound Mayer Rods 1/2 "Film thickness 20.6μm

SE
No. 9 Mayer Rods, 1/2 " (12.7mm) diameter, can be coated with wet-film of 20.6 μm, effective Spreader width of 30cm, made of wear-resistant stainless steel.
$179.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 9# 1/2" Applicator rod 1/2 "SPEC

RDS 9# 1/2" Applicator rod 1/2 "Details

RDS 9# 1/2" Applicator rod 1/2 "Packing list

SKU
NB003679
Production process
Wire-wound
WFT
20.6µm
diameter
12.7mm
Total length
400mm
Application width
300mm
Grip width
50+50mm
material
stainless steel
Wire diameter
0.23mm
9# 1/2"
Applicator rod 1/2 "
No. 9 Mayer Rods, 1/2 " (12.7mm) diameter, can be coated with wet-film of 20.6 μm, effective Spreader width of 30cm, made of wear-resistant stainless steel.

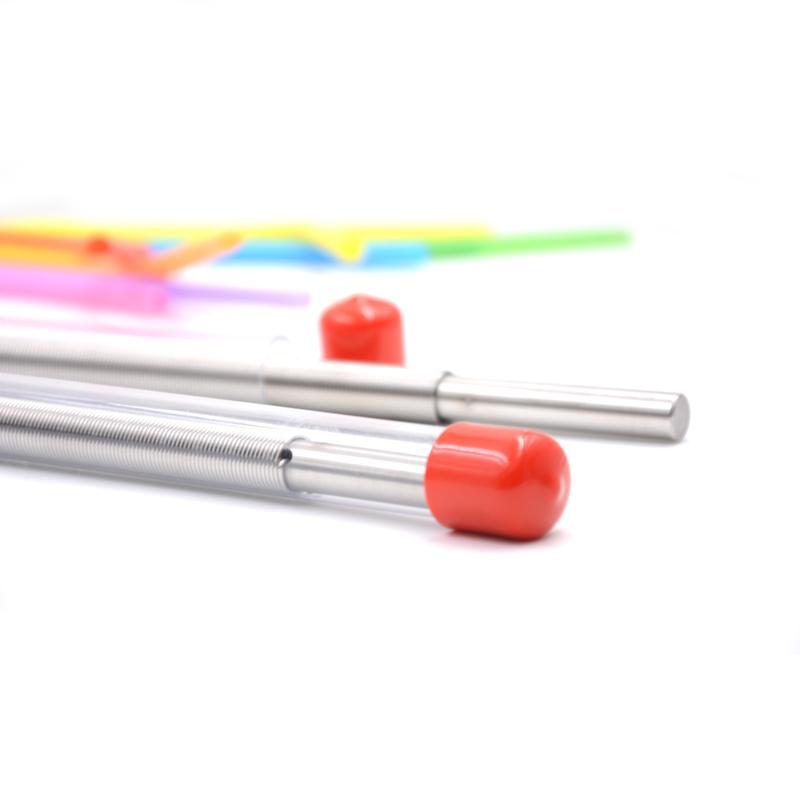

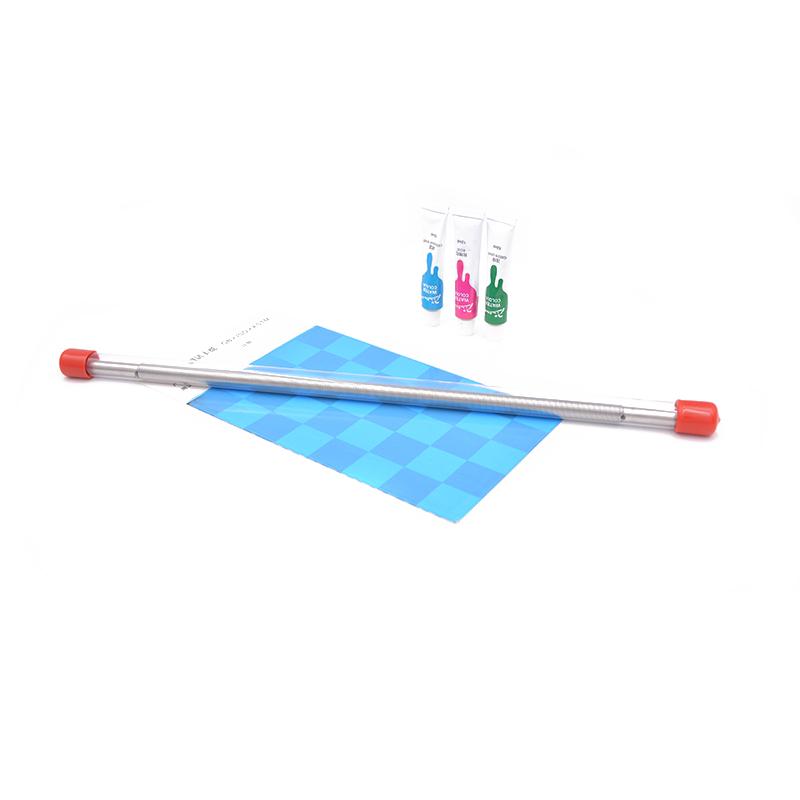

RDS #9 wire-wound Mayer Rods 1/2 "Film thickness 20.6μm Picture

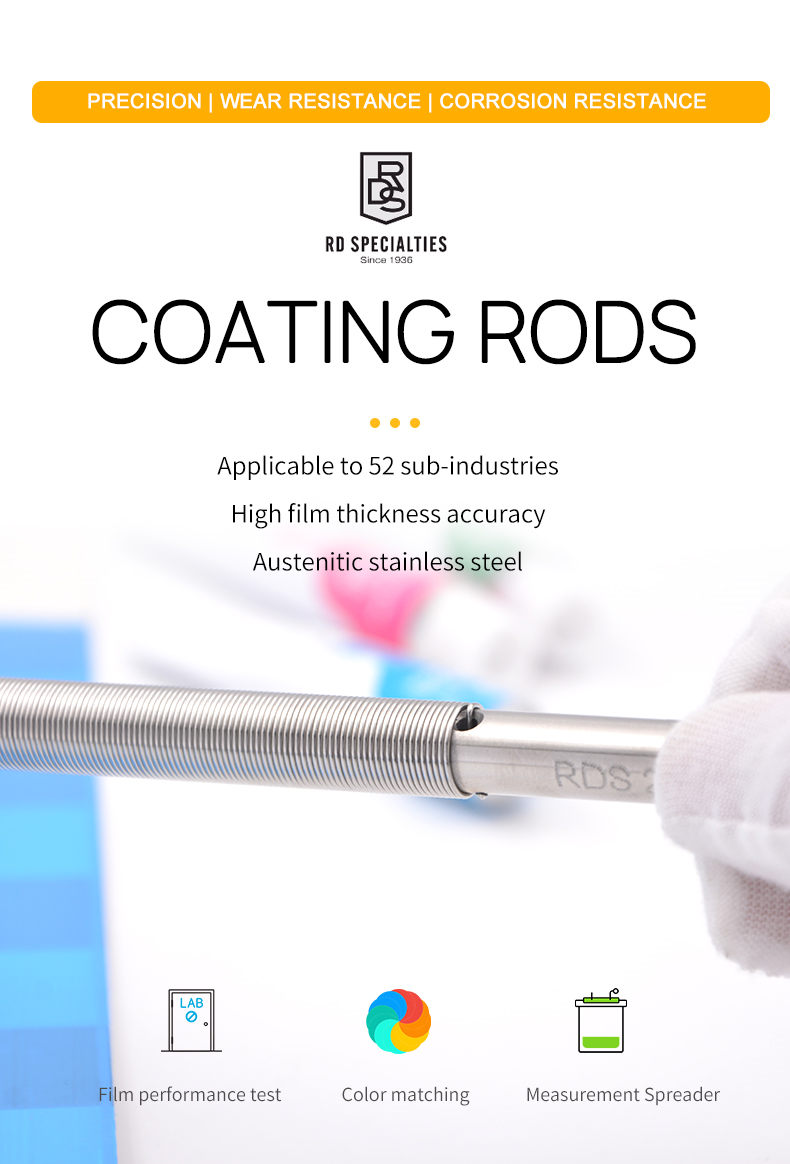

RDS #9 wire-wound Mayer Rods 1/2 "Film thickness 20.6μm Figure 1

RDS #9 wire-wound Mayer Rods 1/2 "Film thickness 20.6μm Figure 2

RDS #9 wire-wound Mayer Rods 1/2 "Film thickness 20.6μm Figure 3

RDS #9 wire-wound Mayer Rods 1/2 "Film thickness 20.6μm Figure 4

RDS #9 wire-wound Mayer Rods 1/2 "Film thickness 20.6μm Figure 5

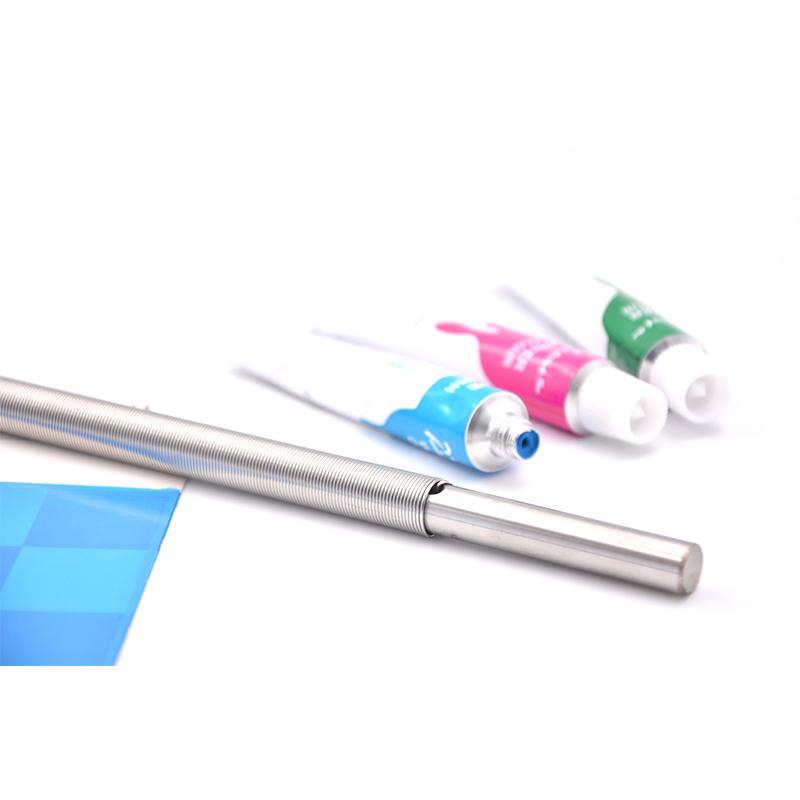

RDS #9 wire-wound Mayer Rods 1/2 "Film thickness 20.6μm Figure 6

RDS #9 wire-wound Mayer Rods 1/2 "Film thickness 20.6μm Figure 7

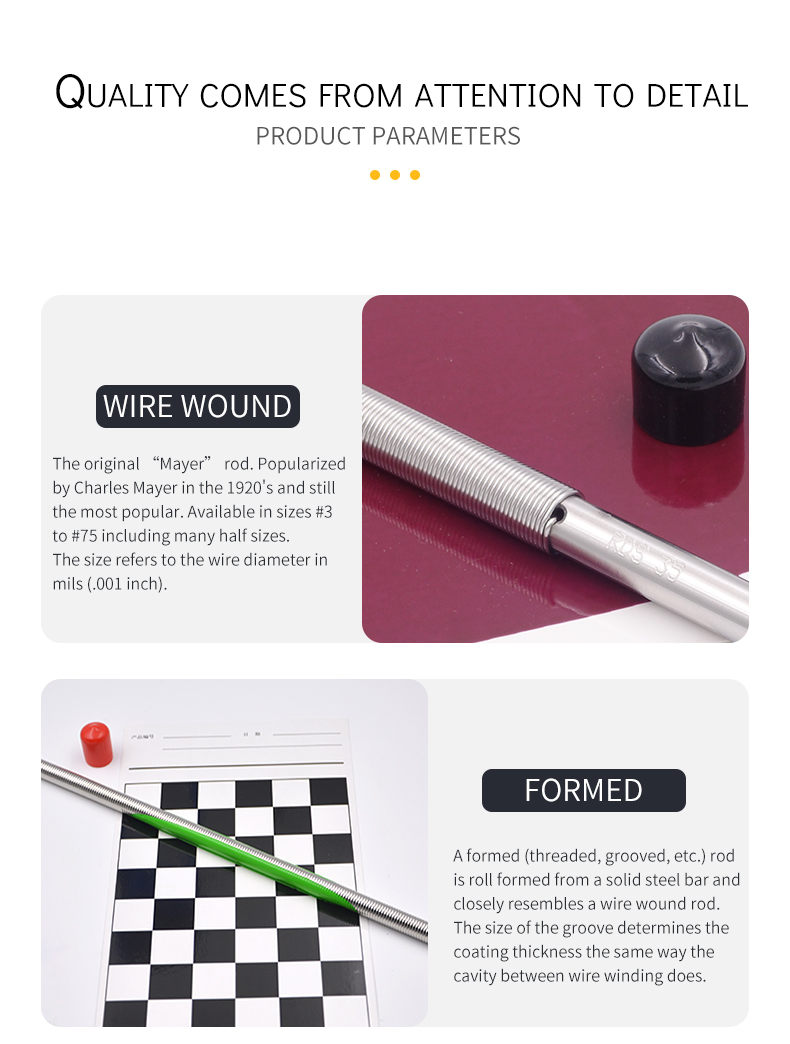

RDS #9 wire-wound Mayer Rods 1/2 "Film thickness 20.6μm Figure 8

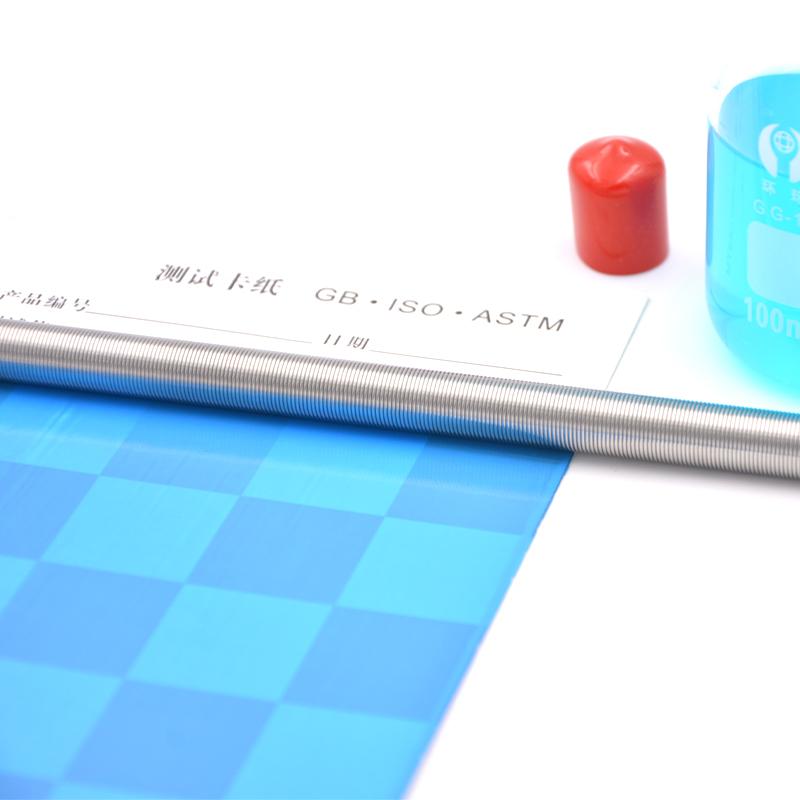

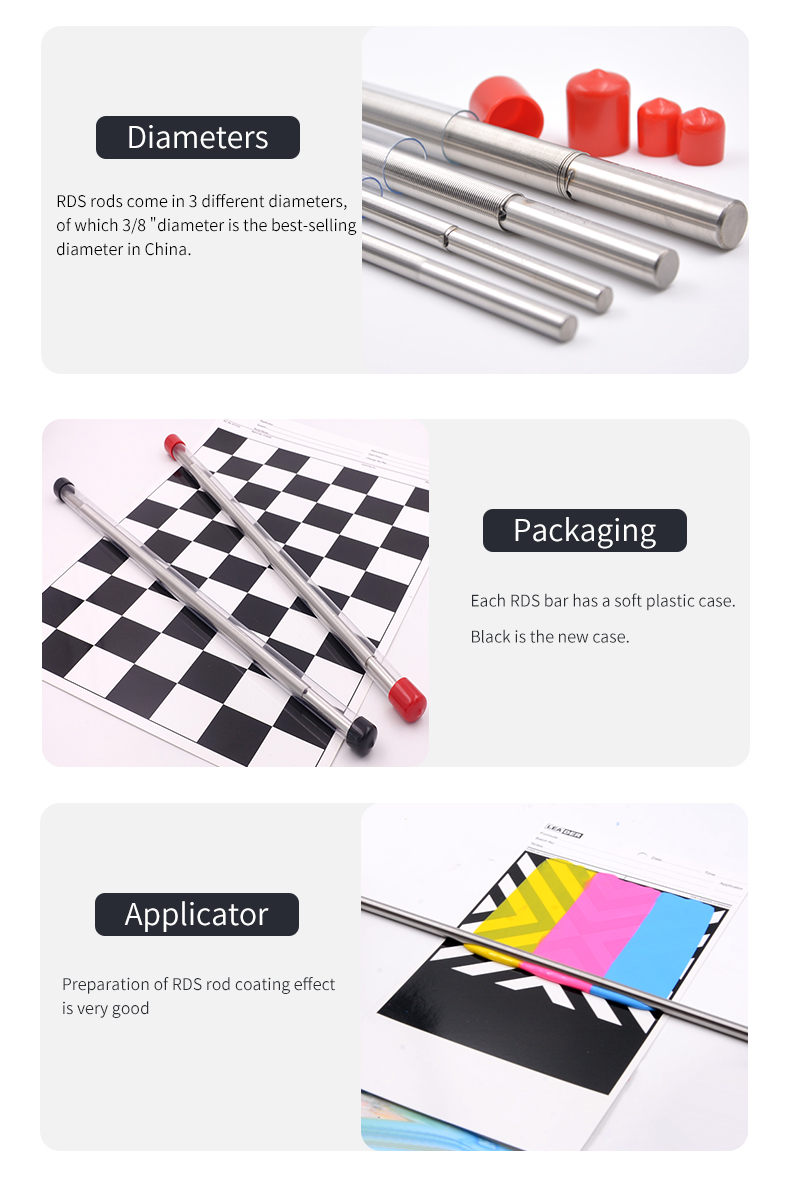

RDS #9 wire-wound Mayer Rods 1/2 "Film thickness 20.6μm Figure 9

RDS #9 wire-wound Mayer Rods 1/2 "Film thickness 20.6μm Figure 10


FAQ
QCan this be coated with glue and latex?
A OK
QHow long is the shaving stick? No. 9 silk, do you have the 450MM long one?
A 450Mm needs to be customized.
QGlue solid content between 50-70%, film Film thickness needs to be controlled at 20-40um How to choose a wire rod spiral
A Theoretically dry film = wet film * solid content The selection of the wire rod is generally based on the wet film thickness of the film
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QHelp me find an Applicator rod that meets the GB/T13217.1 standard
A This 9 #1/2 "Applicator rod is fine!
QCan silicone coatings be applied to quartz Glass substrates?
A Yes, choose quartz Glass as the substrate, with Mayer Rods Coating prepared above coated on the surface of the treated quartz Glass substrate, at room temperature to evaporate the solvent into the oven, at a certain temperature curing film formation.
QOur company is a solar backplane, the laboratory needs to use a scraper, want to consult, want to achieve the film thickness in our mind, how to choose the rod number, no thickness of dry film can not refer to ah, before using the rds6 scraper, coated with a thickness of dry film is 4 microns, if I want to reach 6 to 8 microns, can you suggest?
A It can be roughly calculated according to dry film = wet film × solid parts. The wet film of RDS No. 6 rod is 13.7 μm, and the solid content is about 29% by calculation. If you want to make 6 μm and 8 μm dry films, you need to scrape the wet film 20.5 microns and 27.4 microns, which corresponds to RDS rod, which can be close to RDS 9 #and RDS 12. Thank you for your consultation.
