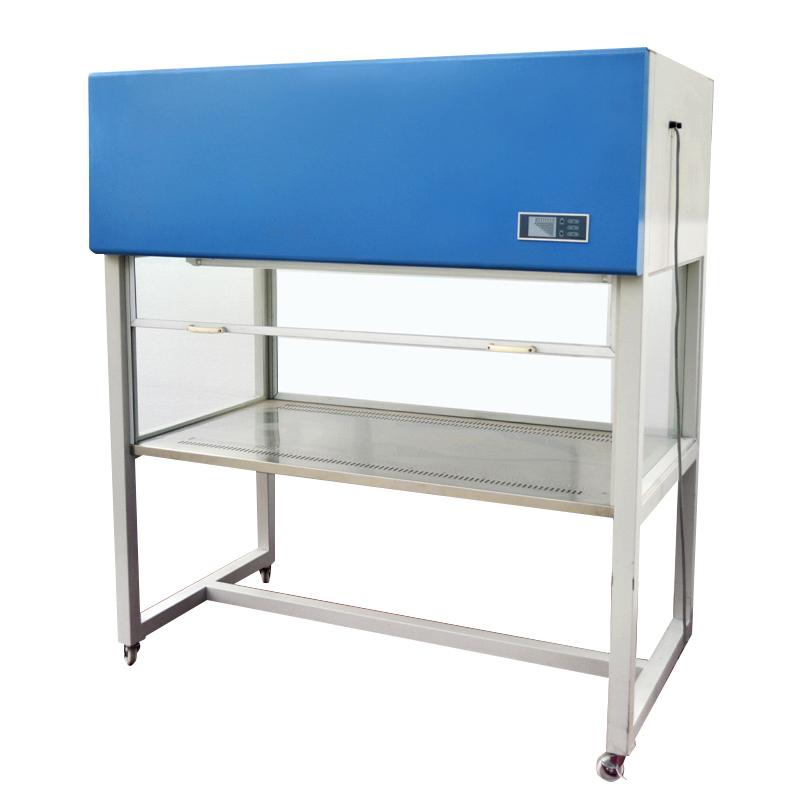

HONGKE JH-DS single and double horizontal Laminar Flow Cabinet

Equipped with centrifugal fan and medium efficiency Filter to ensure a clean environment of class 100. Adjustable air speed design, corrosion resistant stainless steel worktop and vertical quasi-closed worktop provide a silent, low vibration and easy to clean workspace

Model：

JH-DS single and double level

HongKe

Contact

Details SPEC CAT

HongKe JH-DS single and double level Laminar Flow CabinetSPEC

HongKe JH-DS single and double level Laminar Flow CabinetDetails

HongKe JH-DS single and double level Laminar Flow CabinetPacking list

SKU: NB036887

Cleanliness class: Class 100 @0.5μm (LIANBANG 209E)

Average colony count: ≤ 0.5 pieces/dish · hour

Average wind speed: 0.3~0.6m/s

Noise: ≤62dB(A)

Vibration Half-Amplitude: ≤ 4 μm

Illumrination degree: ≥300LX

Power: AC single phase 220V/50HZ

Maximum power: 0.4KW

Weight: 110kg

Workspace width: 820mm

Deep workspace: 450mm

Workspace high: 600mm

Dimensions: 900*700*1470mm

Filter size: 820*600*50*①

UV Lamps: 20W*①

type: Single-Sided, Single Workstation

Fluorescent lamp: 20W*①

Air flow: Horizontal

JH-DS single and double level

Laminar Flow Cabinet

Application

JH/type series purification benches are widely used in medical and health, pharmaceuticals, chemical experiments, electronics, national defense, precision instruments, instruments and other industries to operate air purification equipment.

Features

This product is an air purification system composed of a centrifugal fan and effective and medium-efficiency filters, with high cleanliness.

The adjustable fan unit is adopted, and the light touch switch can adjust the wind speed in the working area.

The stainless steel work surface is anti-corrosion and easy to clean.

The vertical quasi-closed countertop effectively prevents the external airflow from being induced and the odor from the operating area from stimulating the human body.

The vertical type adopts the counterweight mobile operation door, and the user can position it arbitrarily according to the needs.

Model comparison

model	Maximum power	work area	Remark
JH-DS	0.4KW	820450600	single level
JH-DS-(A, B)	0.4KW	870700520	single vertical
JH-SS	0.65KW	1680450600	double level
JH-SC-(A, B)	0.8KW	1360700520	2-person vertical
Other parameters
Cleanliness level	Class 100@0.5μm (US Federal 209E)
Colony count	≤0.5pcs/dish·hour
average wind speed	0.3~0.6m/s (adjustable)
noise	≤62dB(A)
Vibration/single peak	≤4μm
Illumination	≥300LX
power supply	AC single phase 220V/50HZ
