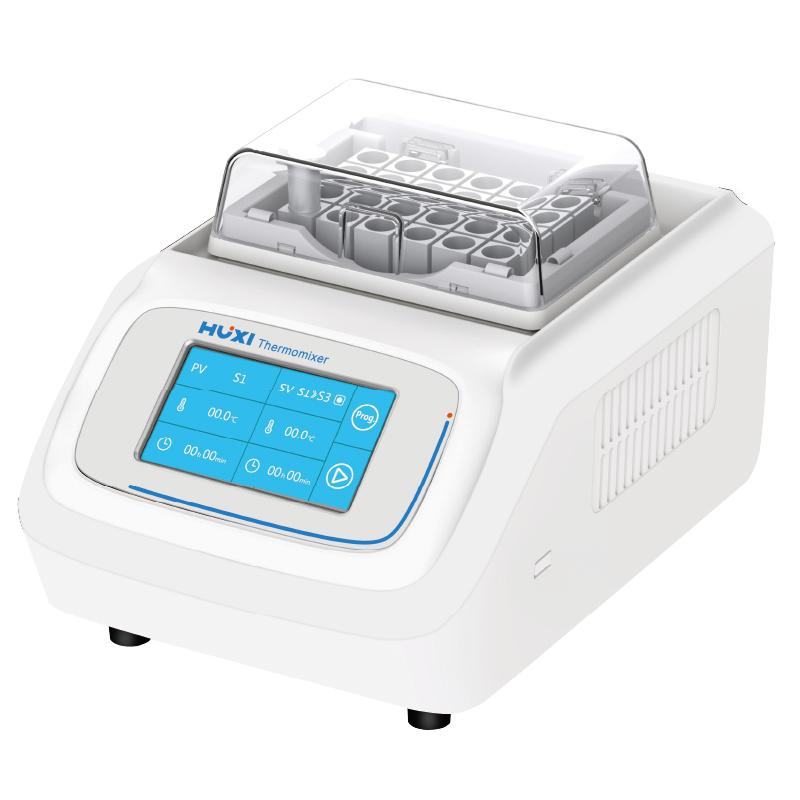

HUXI HX-20TLS heating type constant temperature mixing bath, heating and cooling type
SE
HX-20TLS
HuXi HX-20TLS Heating type constant temperature mixing bathSPEC
HuXi HX-20TLS Heating type constant temperature mixing bathDetails
HuXi HX-20TLS Heating type constant temperature mixing bathPacking list
- SKU
- NB036914
- Temperature range
- -10~100℃
- Temperature control range
- 0~100 ℃ (room temperature 16 ℃, no load can actually reach room temperature -16 ℃)
- Display
- 4.3 inch high-definition capacitive screen
- Control method
- Full screen TFT touch
- End or fault alarm prompt function
- Yes.
- Temperature calibrating function
- Yes.
- Temperature or time dynamic display function
- Yes.
- Motor oscillation jog function
- Yes.
- Computer or host computer control
- Optional USB interface
- Power
- 100-240V/50-60HZ~1.0A
- Time setting
- 1 min~ 99h59min or continuous operation
- Motor oscillation speed
- 200-1800rpm
- oscillation amplitude
- 3mm
- Oscillation method
- horizontal rotation
- temperature control Accuracy
- ≤ ± 0.5 ℃
- heating time
- ≤ 15 minutes (20 ℃ to 100 ℃)
- Cooling function
- ≤ 15 minutes (100 ℃ to 20 ℃)
- Multipoint combinatorial programming function
- Yes (up to 5 groups can be selected)
- Standard centrifuge tube module
- 35*2.0ml
- Optional centrifuge tube module
- A,B,C,D,E,F,G,H,J,K,L,M,N
The instrument adopts DC brushless motor and microcomputer control technology, and combines the two functions of PI heating and constant temperature technology and oscillation well, which greatly shortens the time of experimental operation and improves the efficiency of the staff Automated tools for reaction processes such as mixing, mixing and storage.
Features
●The operation is simple and convenient, the large display screen makes the data clear at a glance, and the time and setting parameters are displayed;
●All icons are dynamically displayed, more humane;
●Powerful programmable function to implement multi-segment temperature point control, up to 5 temperature point temperature and constant temperature automatic fault detection and buzzer alarm function;
●Temperature deviation calibration function and short oscillation jogging function;
●The transparent insulation cover is made of high-temperature-resistant PC environmental protection material, integrated design to prevent loss, multiple safety protection functions, in line with CE safety standards, safe and reliable;
●The built-in over-temperature protection device has power-off recovery function, and the instrument can automatically resume operation according to the original ;
●Microprocessor control, good temperature control linearity, accurate oscillation speed and small fluctuation;
●It is equipped with a timing function, and the cultivation time can be set arbitrarily within the range of 0~99h59min, or the continuous running , and the communication function of USB or upper computer can also be selected.
Models
replaceable modules | |
| HX-A | 96*0.2ml standard plate 100℃ |
| HX-B | 54*0.5ml centrifuge tube 100℃ |
| HX-C | 35*1.5ml centrifuge tube 100℃ |
| HX-D | 35*2.0ml centrifuge tube 100℃ |
| HX-E | 20*0.5ml+15*1.5ml centrifuge tube 100℃ |
| HX-F | 24* diameter ≤Φ12mm test tube 100℃ |
| HX-G | 32*0.2ml+25*1.5ml centrifuge tube 100℃ |
| HX-H | 32*0.2ml+10*0.5ml+15*1.5ml centrifuge tube 100℃ |
| HX-J | 96*0.2ml microplate (enzyme plate) 100℃ |
| HX-K | 24*5ml centrifuge tube 100℃ |
| HX-L | 12*15ml (Maximum speed 600rpm) 100℃ |
| HX-M | 6*50ml (Maximum speed 600rpm) 100℃ |
| HX-N | 15*10ml (Maximum speed 600rpm) 100℃ |
