TQC VF1856 Cross Hatch Cutter without tip

SE
The TQC VF1856 Cross Hatch Cutter is a CC1000 series multi-blade Cross Hatch Cutter with the characteristics of an adjustable blade holder. It does not include a cutter head. The cutter head needs to be purchased separately.
Model：
Certificate
Contact
Details SPEC

TQC sheen VF1856 Cross Hatch CutterSPEC

TQC sheen VF1856 Cross Hatch CutterDetails

TQC sheen VF1856 Cross Hatch CutterPacking list

SKU
NB036918
Instrument material
Vacuum hardened stainless steel, aluminum, rubber
Application standard
ISO2409、ASTM D3359
Applicable film thickness environment
0~60μm (solid substrate), 0~50μm (solid substrate)
Appearance size
32*210*42mm
VF1856
Cross Hatch Cutter
TQC VF1856 Cross Hatch Cutter without tip Picture

Operating Principle

TQC CC1000 series multi-type grid device uses the working principle of the grid method,The grid method is a test method for measuring the adhesion of a dry coating on a surface, using a row of 6/11 blades between two outer wires to draw 25/100 squares, and the evaluation grade is determined by comparing the grids. The adhesion of dry-coated paint to the substrate is measured by a series of cuts. Cut out two parallel lines that cross vertically to get 25 or 100 squares. Parallel line intersection areas are evaluated on a tabletop and then treated with a stiff bristle brush for a short period of time or taped on a hard substrate.

Comparison table of the full range of models of adhesion Testers

TQCKnife teethCC1000CC2000CC3000Suitable for film thickness environments
Scratch lattice adhesion instrument-The blade holder is automatically adjusted, and the round cutter has 8 cutsThe blade holder is automatically adjusted, the cutter can be easily changed, and the swivel handle is included, eliminating the need for additional toolsThe blade holder maintains a fixed distance between the varnish surface and the two auxiliary wheels, and the cutting depth can be precisely adjusted to ensure repeatability-
ISO2409/ASTM D33591VF1839SP1690SP1680

ISO2409: 0~60μm (sturdy substrate)；

ASTM D3359: 0~50μm (Robust Substrate)

ISO2409/ASTM D33592 VF1842 SP1691SP1681

ISO2409： 0~60μm (soft substrate), 61-120μm(Sturdy substrate.))；

ASTM D3359：50~125μm (Solid Substrate)

ISO/DIN24093VF1844SP1692SP1682121-250μm(Sturdy substrate.))
ASTM 3359＜20091VF1846 SP1699SP16830~50μm(Sturdy substrate.))
ASTM 3359 is less than 20091.5VF1847SP1700SP168450~125μm(Sturdy substrate.))

Take you to the Dutch TQC

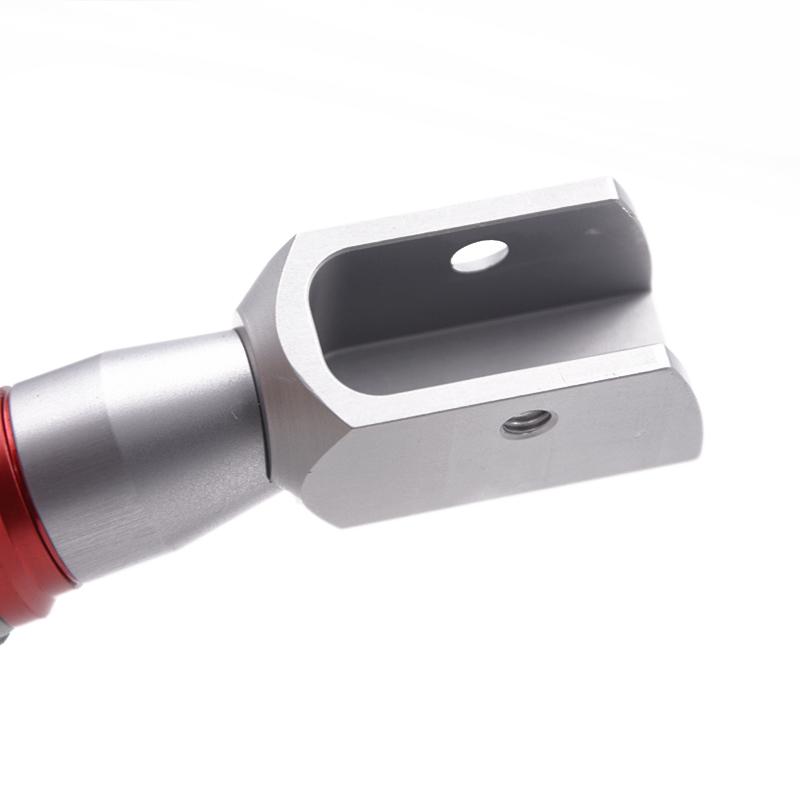

TQC VF1856 Scratcher Details Figure 1

TQC VF1856 Scratcher Detail Figure 2

TQC VF1856 Scriber Details Figure 3

FAQ
QHello, is VF1839 in stock?
A This is split into VF1856 + VF2355
QDo you still have this model VF1839?
A There is no VF1839 anymore, now it has become these two VF1856 + VF2355.
