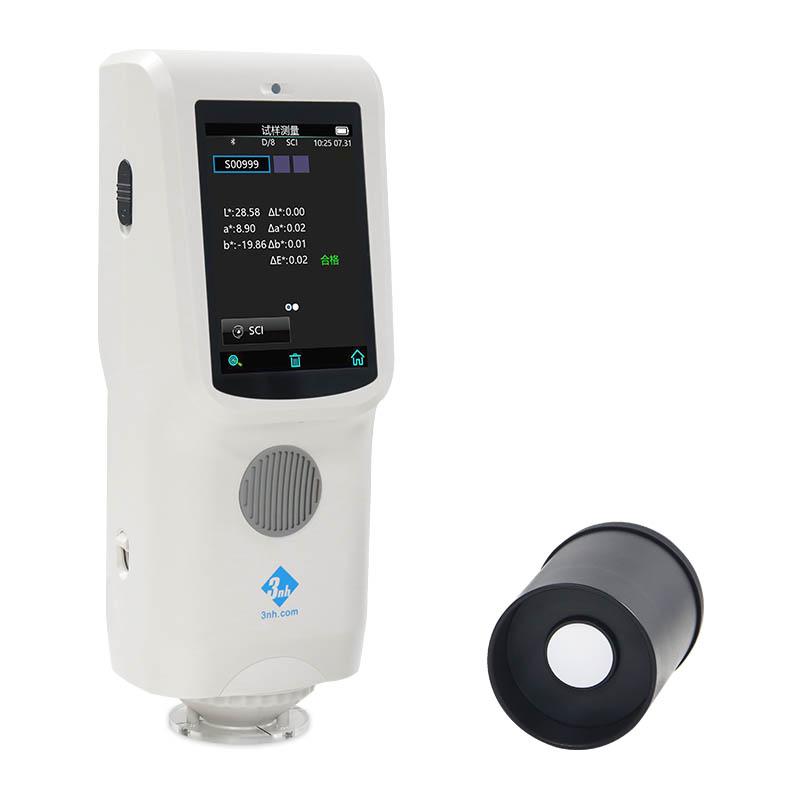

3NH color difference treasure CR7 + (basic enhanced version) dual diameter 8mm/12mm
Equipped with Ø 12mm and Ø 8mm measurement diameters, built-in silicon photodiode array (dual row 24 groups) sensors, imported whiteboards, Repeatability Delta E * ab can be easily controlled within 0.05.
Model：
CR7+
3NH CR7+ Spectroscopic color difference treasureSPEC
3NH CR7+ Spectroscopic color difference treasureDetails
3NH CR7+ Spectroscopic color difference treasurePacking list
- SKU
- NB036934
- Lighting method
- D/8 (diffuse illumination, 8 ° direction reception) SCI/SCE measurement conforms to CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
- Integrating sphere size
- Φ40mm
- Lighting source
- Light spectrum LED Light source
- spectroscopy
- Plane grating spectroscopy
- Sensor
- Silicon photodiode array (dual row 24 groups)
- Wavelength Range
- 400~700nm
- wavelength interval
- 10nm
- Bandwidth
- 10nm
- Measurement range
- L: 0~120 reflectance: 0~200%
- Measurement caliber
- Dual diameter: Should 12mm, Should 8mm
- Focus method
- electron focusing
- Light-containing method
- Simultaneous testing of SCI/SCE
- Color Space
- CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy,Munsell(C/2)
- Color difference formula
- ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99
- Other chroma metrics
- WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Isochromatic Index Mt, colouring fastness, discoloration fastness, force, coverage, Formula Guide
- Viewing Angle
- CIE 2°/10°
- Available Light Sources
- D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)
- display mode
- Light spectrum graphs/data, sample chromatic values, color difference values/graphs, pass/fail results, Color simulation, Color bias
- Display Accuracy
- 0.01
- Measurement time
- Approximately 1.5 seconds (approximately 3.2 seconds for simultaneous SCI/SCE testing)
- Repeatability
- Chromatic value: MAV/SCI, Delta E * ab within 0.05 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s)
- Inter-instrument Agreement
- ΔE*ab<0.4(MAV/SCI)
- Measurement mode
- Single measurement, average measurement (2~ 99 times)
- positioning method
- Stabilizer positioning
- size
- 81*71*214mm
- Weight
- Approx. 460g
- Battery life
- Lithium battery, 6000 cycles in 8 hours
- Lighting source life
- More than 3 million measurements in 5 years
- Display
- TFT true color 3.5inch, capacitive touch screen
- Interface
- USB
- store data
- 1000 master standards, 20,000 samples (one data can include SCI/SCE at the same time)
- Operating language
- Simplified Chinese, English, Traditional Chinese
- Operating environment
- 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
- Storage environment
- -20~50 ℃, 0~85% RH (no condensation)
- Optional Accessories
- USB micro printer, powder test box, placement base
CR7+
Spectroscopic color difference treasure
Equipped with Ø 12mm and Ø 8mm measurement diameters, built-in silicon photodiode array (dual row 24 groups) sensors, imported whiteboards, Repeatability Delta E * ab can be easily controlled within 0.05.
