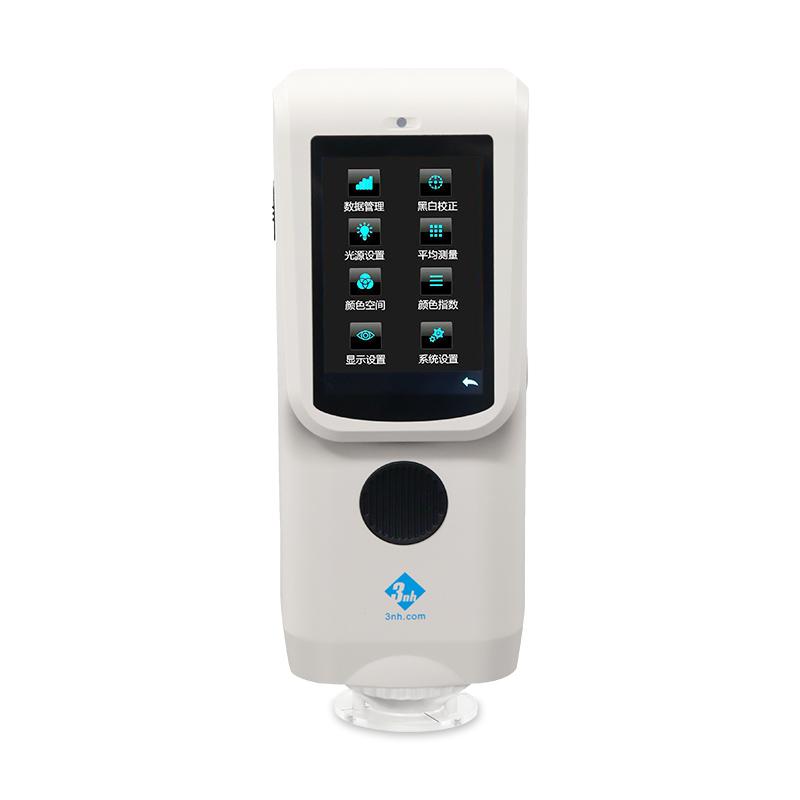

3NH color difference treasure CR8 + (professional enhanced version) 3 caliber random measurement
3 kinds of caliber 012mm + 08mm + 04mm, using full-band balanced LED Light source, silicon photodiode array, camera framing and positioning, portable massive Formula Guide database, portable massive Formula Guide database, a variety of Color measurement space, using D/8 SCI/SCE synthesis technology
Model：
CR8+
3NH CR8+ Spectroscopic color difference treasureSPEC
3NH CR8+ Spectroscopic color difference treasureDetails
3NH CR8+ Spectroscopic color difference treasurePacking list
- SKU
- NB036936
- Lighting method
- D/8 (diffuse illumination, 8 ° direction reception) SCI/SCE measurement conforms to CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
- Integrating sphere size
- Φ40mm
- Lighting source
- Light spectrum LED Light source
- spectroscopy
- Plane grating spectroscopy
- Sensor
- Silicon photodiode array (dual row 32 groups)
- Wavelength Range
- 400~700nm
- wavelength interval
- 10nm
- Bandwidth
- 10nm
- Measurement range
- L: 0~120 reflectance: 0~200%
- Focus method
- Optical inspection focus + electronic focus
- Light-containing method
- Simultaneous testing of SCI/SCE
- Color Space
- CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy,Munsell(C/2)
- Color difference formula
- ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99
- Other chroma metrics
- WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Isochromatic Index Mt, colouring fastness, discoloration fastness, force, coverage, Formula Guide
- Viewing Angle
- CIE 2°/10°
- Available Light Sources
- D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)
- display mode
- Light spectrum graphs/data, sample chromatic values, color difference values/graphs, pass/fail results, Color simulation, Color bias
- Display Accuracy
- 0.01
- Measurement time
- Approximately 1.5 seconds (approximately 3.2 seconds for simultaneous SCI/SCE testing)
- Repeatability
- Chromatic value: MAV/SCI, Delta E * ab within 0.04 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s)
- Inter-instrument Agreement
- ΔE*ab<0.35(MAV/SCI)
- Measurement mode
- Single measurement, average measurement (2~ 99 times)
- positioning method
- Camera positioning, stabilizer positioning
- size
- 81*71*214mm
- Weight
- Approx. 460g
- Battery life
- Lithium battery, 6000 cycles in 8 hours
- Lighting source life
- More than 3 million measurements in 5 years
- Display
- TFT true color 3.5inch, capacitive touch screen
- Interface
- USB, Bluetooth ® 5.0
- store data
- 1000 master standards, 20,000 samples (one data can include SCI/SCE at the same time), APP Mass storage
- Operating language
- Simplified Chinese, English, Traditional Chinese
- Operating environment
- 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
- Storage environment
- -20~50 ℃, 0~85% RH (no condensation)
- Optional Accessories
- USB micro printer, powder test box, Bluetooth micro printer, placement base
CR8+
Spectroscopic color difference treasure
3 kinds of caliber 012mm + 08mm + 04mm, using full-band balanced LED Light source, silicon photodiode array, camera framing and positioning, portable massive Formula Guide database, portable massive Formula Guide database, a variety of Color measurement space, using D/8 SCI/SCE synthesis technology
Spectroscopic Chromatic Difference CR8+ (Professional Enhanced Version) is a portable Colorimeter developed by 3nh using independent spectroscopy core technology, using built-in silicon photodiode array (dual row 32 groups) sensor, imported whiteboard, and the repeatability ΔE*ab is easily controlled within 0.04. CR8+'s powerful performance configuration and good instrument difference make color measurement more professional and ensure the consistency of measurement data from multiple devices. Chroma Spectroscopy CR8+ takes into account both the measurement speed and the convenience of operation, and can control the color through the PC software, and can also be seamlessly connected with mobile phone devices through Bluetooth, which greatly expands the application space of the Colorimeter and makes the traditional Colorimeter glow with a different application charm.
