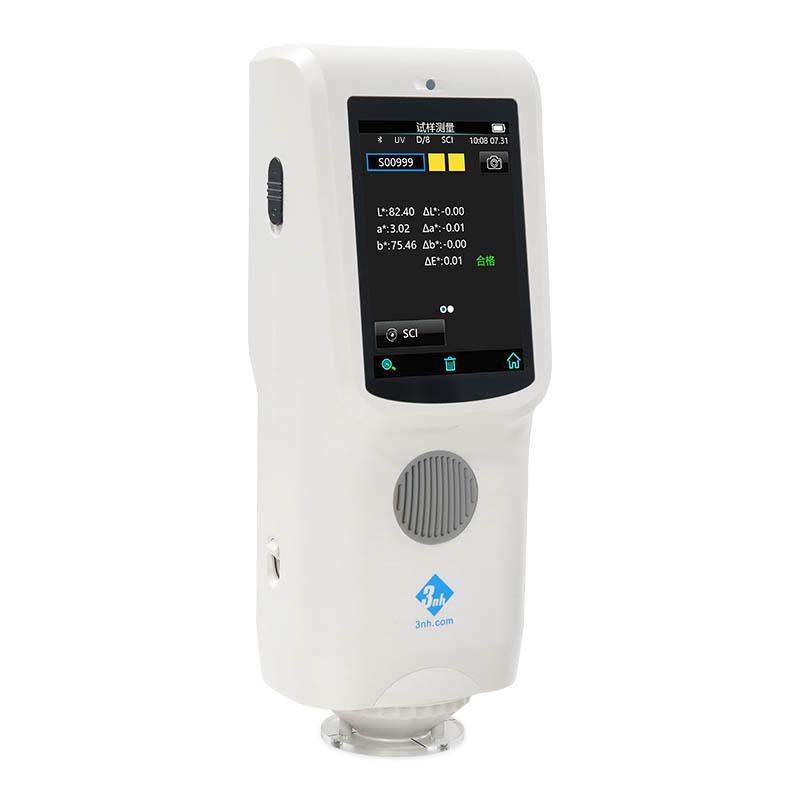

3NH color difference treasure CR9 (advanced version) 4/8mm Optical inspection focus

CR9

Spectroscopic color difference treasure

Using built-in silicon photodiode array (dual row 32 groups) sensor, imported whiteboard, Repeatability Delta E * ab can be easily controlled within 0.03. Equipped with 4/8mm dual measurement aperture to meet different sample measurement needs, excellent inter-stage difference and Repeatability.

CR9 realizes the two-in-one of Spectrophotometer and Spectrophotometer , saving worry, effort and money, and is a representative work integrating high precision, high performance and high cost performance.

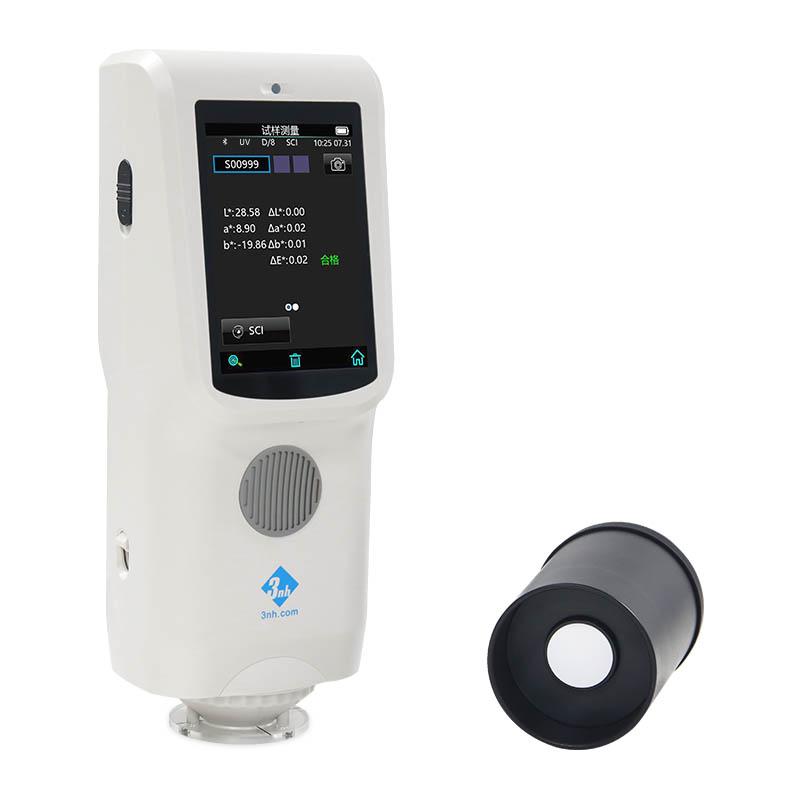

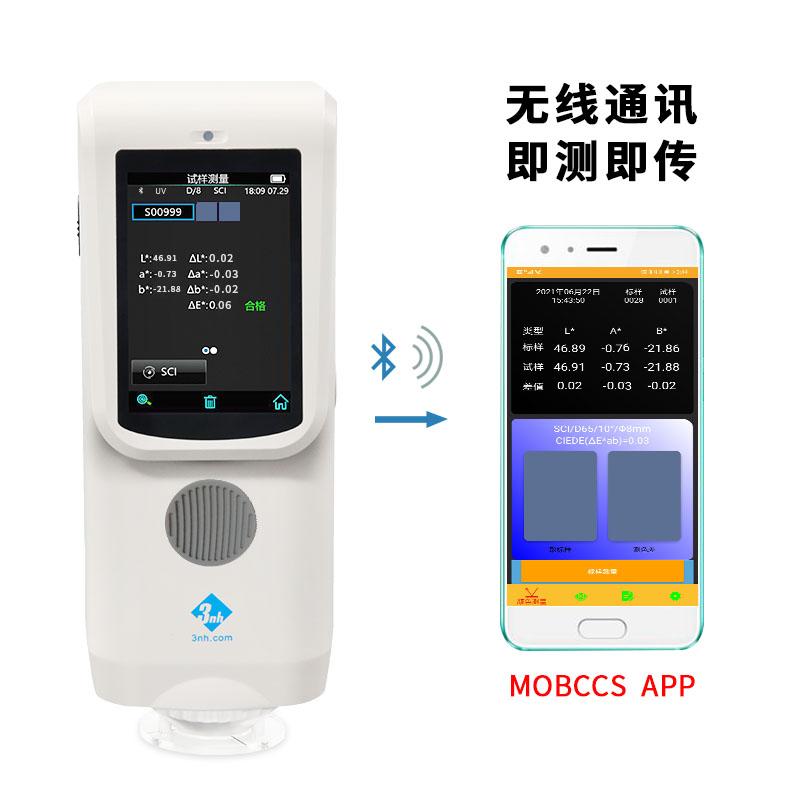

Spectroscopic Chromatic Difference CR9 is a portable Colorimeter developed by 3nh using independent spectroscopic core technology, using built-in silicon photodiode array (double row 32 groups) sensor, imported whiteboard, and the repeatability ΔE*ab is easily controlled within 0.03. CR9's powerful performance configuration and good instrument difference make color measurement more professional and ensure the consistency of measurement data from multiple devices. At the same time, the CR9 takes into account the measurement speed and the convenience of operation, and can control the color through the PC software, and can also be seamlessly connected with mobile phone devices through Bluetooth, which greatly expands the application space of the Colorimeter and makes the traditional Colorimeter glow with a different application charm.

Features

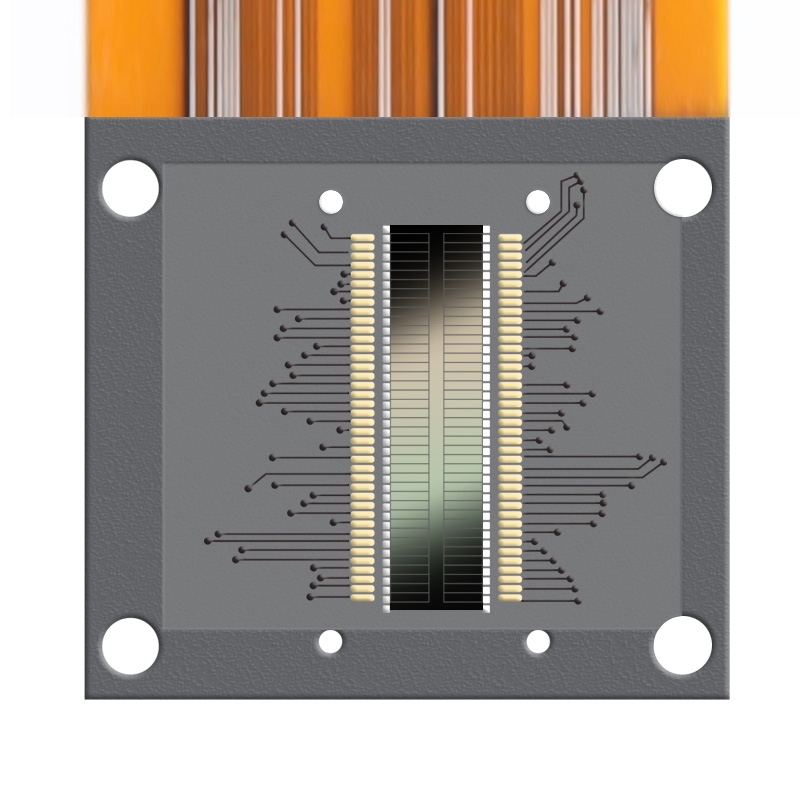

1. Silicon photodiode array (dual 32 array) sensor

The larger area of the double 32 array sensor, the strong light will not be saturated, the weak light sensitivity is higher and the wide spectral response range ensures the measurement speed, accuracy, stability and consistency of the instrument, masters the core technology, and the same platform with international standards to achieve complete compatibility.

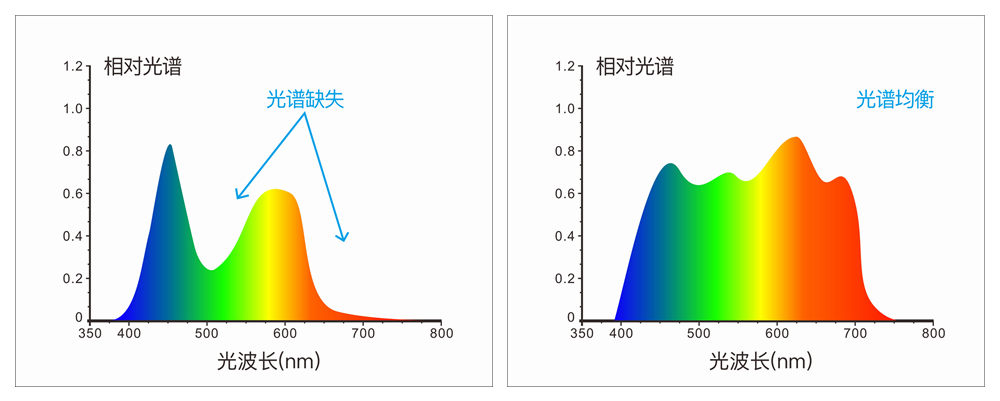

2. Adopt full-band balanced LED light source

The all-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LEDs in a specific wavelength band, and ensures the measurement speed of the instrument and the accuracy of the measurement results.


3. Grating spectroscopy technology

Razzle splitting technology for higher resolution and more accurate color measurement.

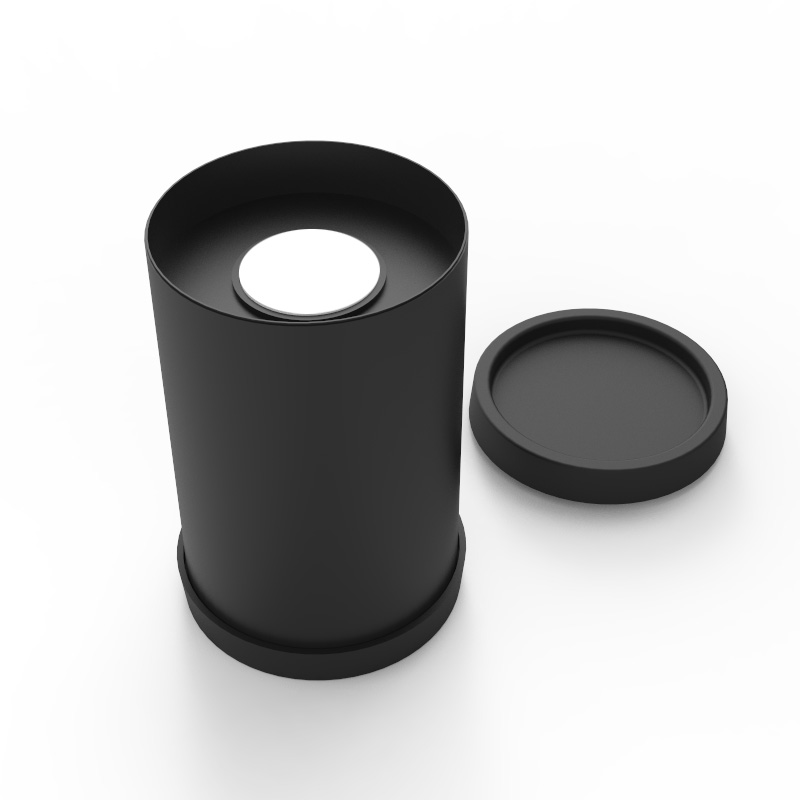

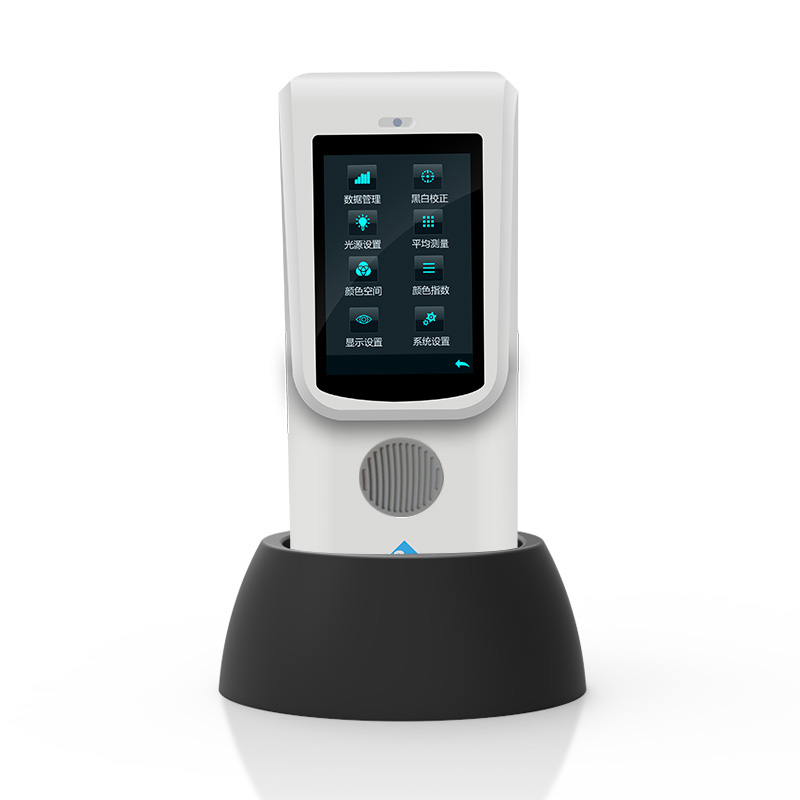

4. Place the base with peace of mind to ensure that the whiteboard is not dirty

5. Professional-grade whiteboard, a promise that it will not change color for a lifetime

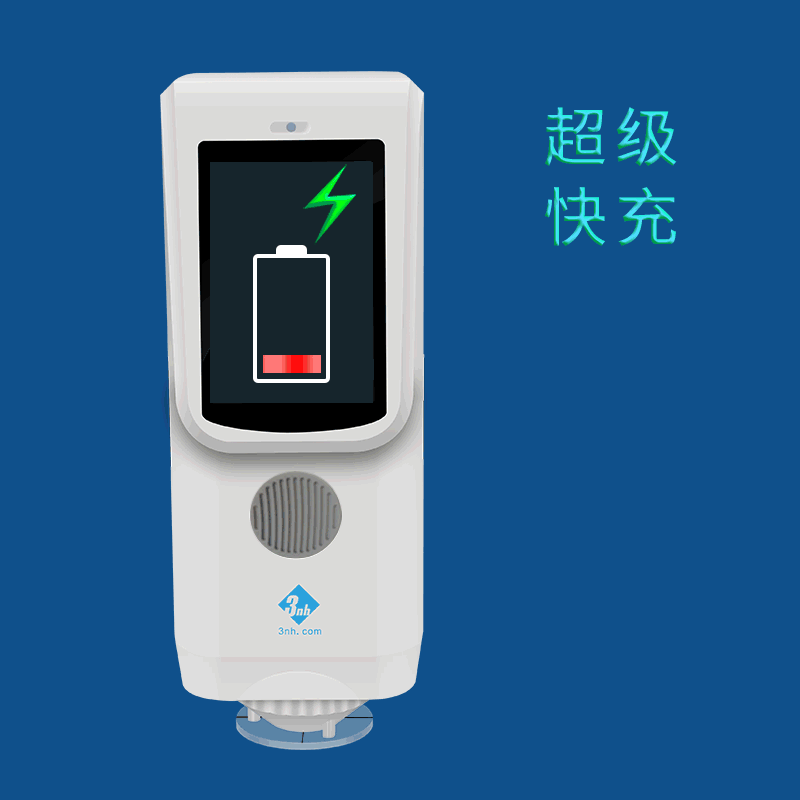

6. Fast charging

The special fast charging method, low-Voltage reminder charging or charging during off-duty hours, ensures the capacity and life of the battery (note: frequent and repeated charging of the battery is more harmful).

7. Novel and fashionable appearance design based on ergonomics

The grip and the position of the measuring button are carefully designed to meet different grip habits, and the smooth and fine surface is derived from the art of high-precision appearance treatment.

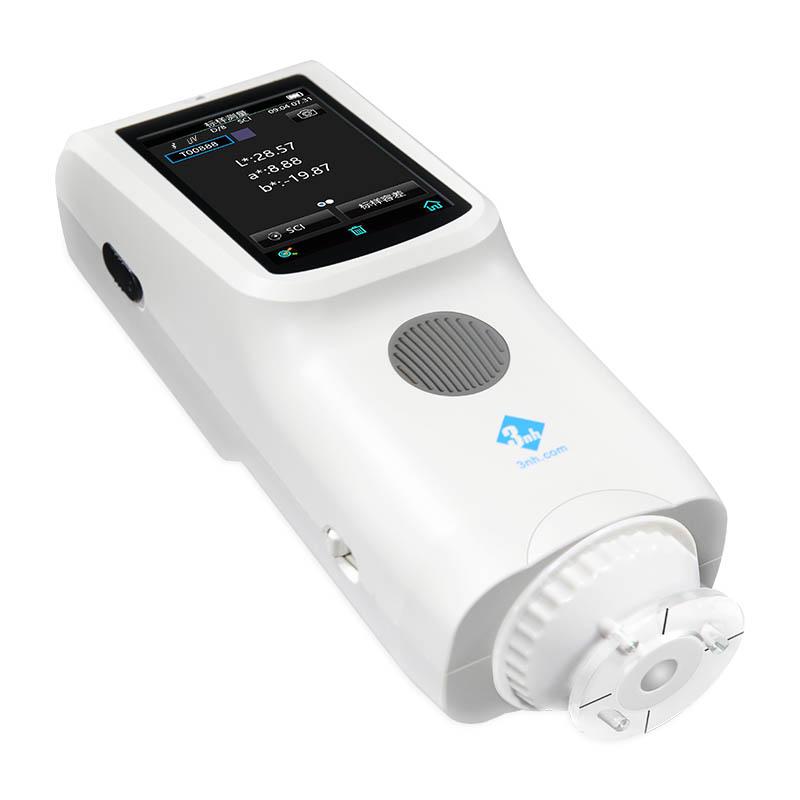

8. Equipped with 4/8mm double measuring aperture to meet the measurement needs of different samples

Chroma CR9 (Advanced Version) is equipped with two platform measuring apertures of Ø8mm and Ø4mm as standard, which meets the measurement needs of most special samples.

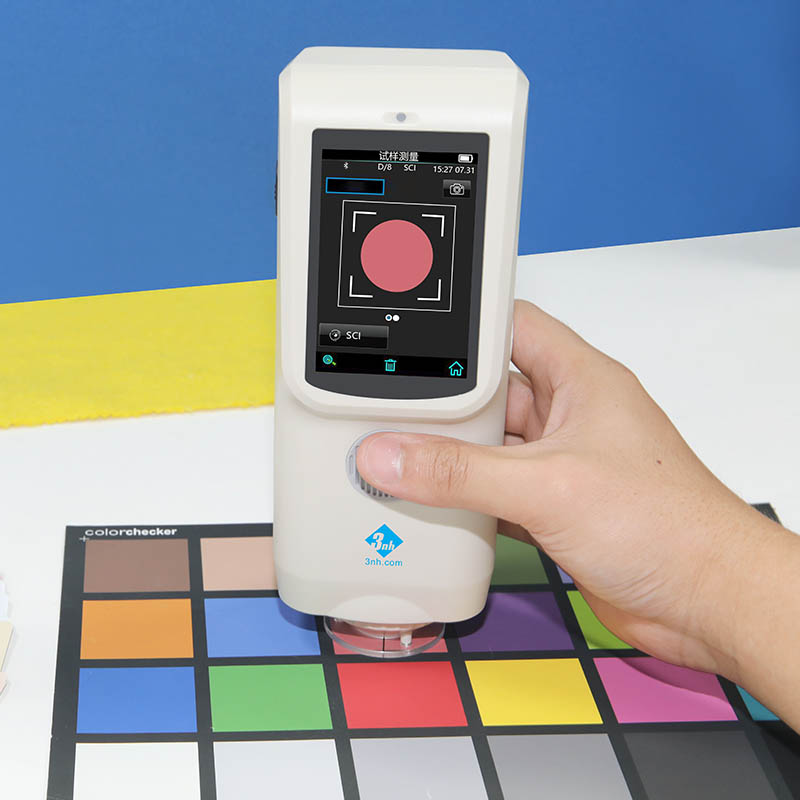

9. The camera is positioned by framing and positioning, and the measured area can be clearly observed

CR9 (Advanced Version) has a built-in camera framing positioning, which can accurately determine whether the measured part of the object is the center of the target through the real-time framing of the camera, which improves the measurement efficiency and accuracy.

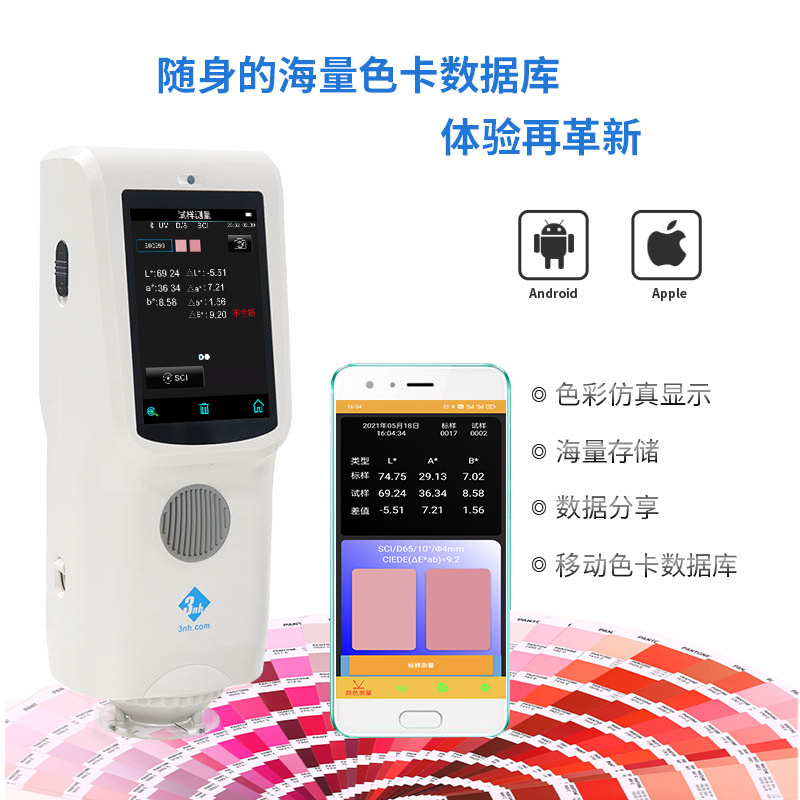

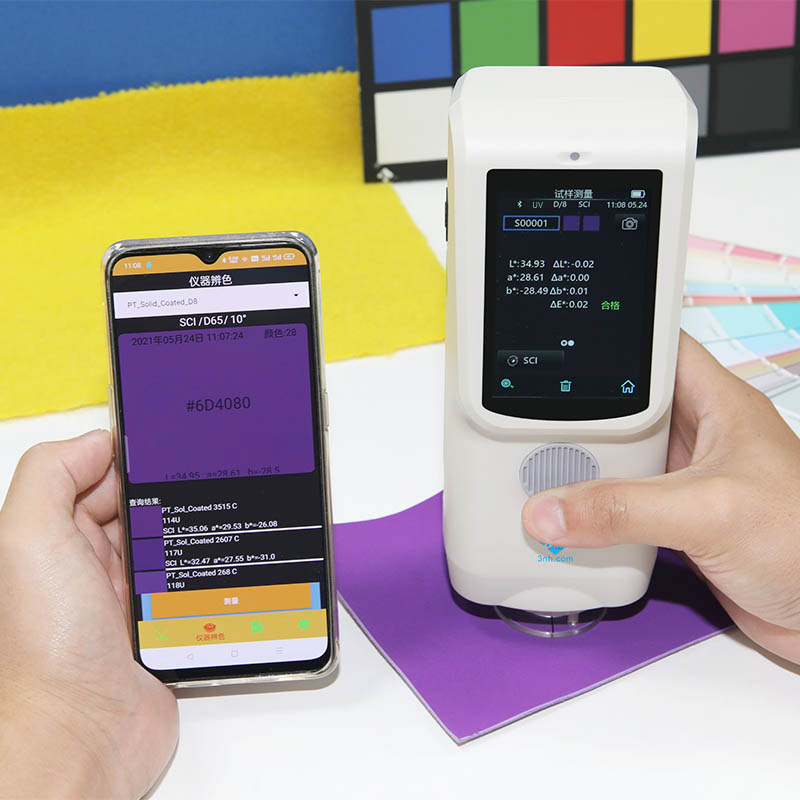

10. Carry a massive Color Chart database

The instrument data storage is 1,000 standard samples, 30,000 samples, and the APP synchronizes massive storage, which can quickly search, analyze and compare color data.

Use the App to build your private color database in the cloud, you don't need to carry a heavy Color Chart, you can use CR9 Colora Treasure to find the most similar color in multiple Color Charts anytime and anywhere.

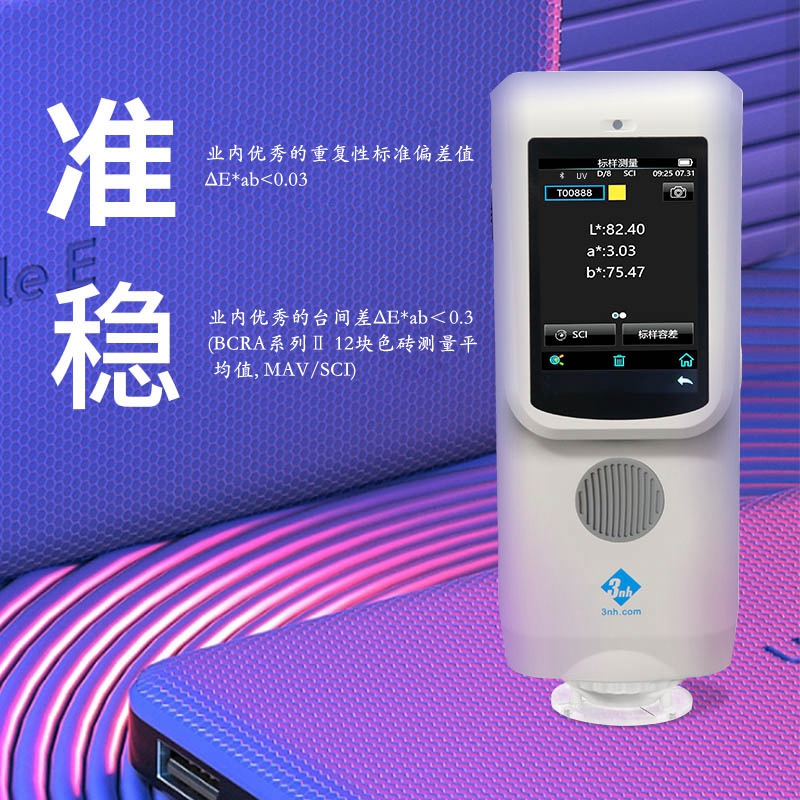

11. Good inter-station difference and repeatability to ensure the consistency of measurement data of multiple equipment

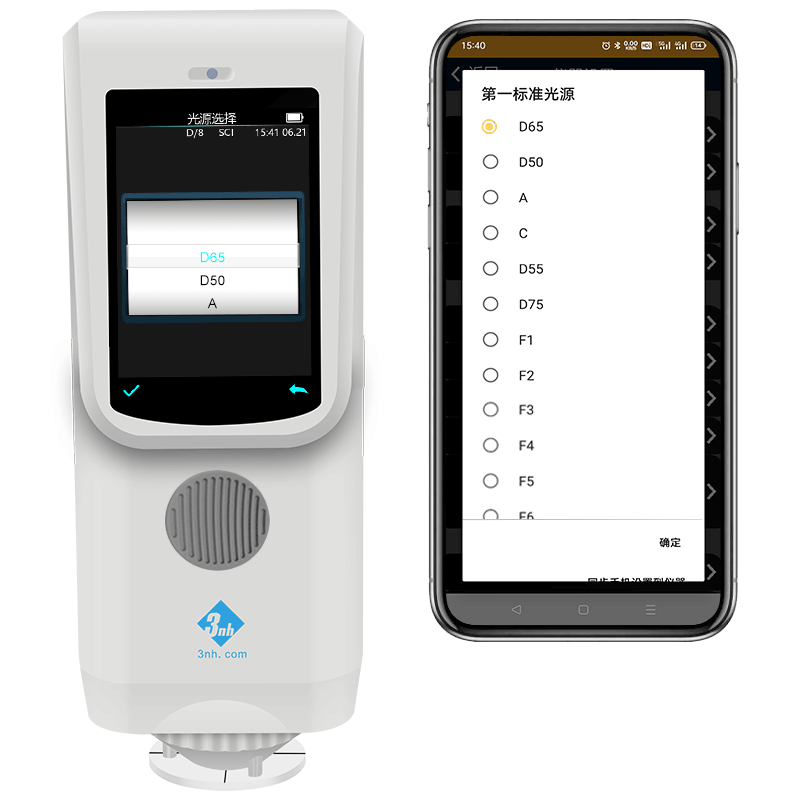

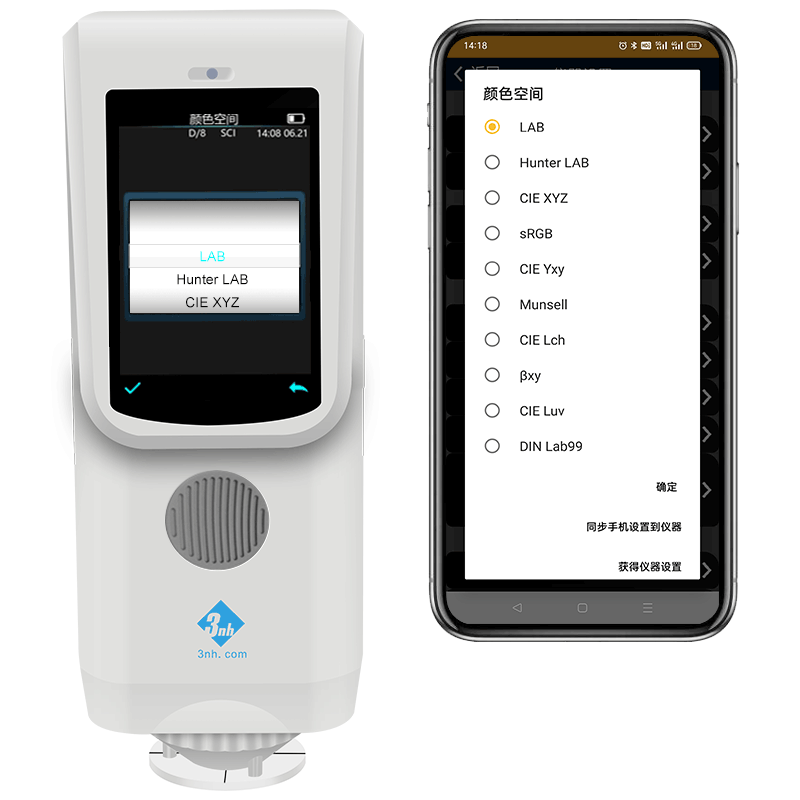

12. A variety of color measurement space, a variety of observation light sources

Available in CIE LAB, XYZ, Yxy, LCh, CIE LUV, S-RGB, ΒXY, DIN Lab9, DIN Lab99 Munsell (C/2) color spaces, and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) A variety of observation light sources can meet the special measurement needs under different measurement conditions.

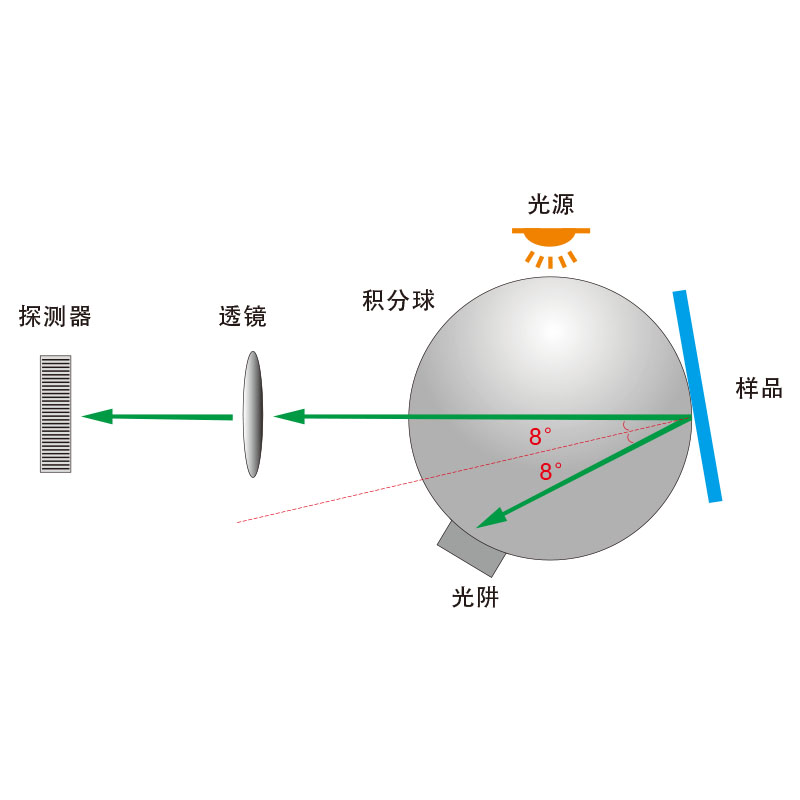

13. Adopt the internationally accepted D/8 SCI/SCE synthesis technology

The D/8 (SCI/SCE) measurement structure is used to reflect the color itself more objectively, reduce the influence of the surface texture of the object on the test results, and comply with the standards CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7

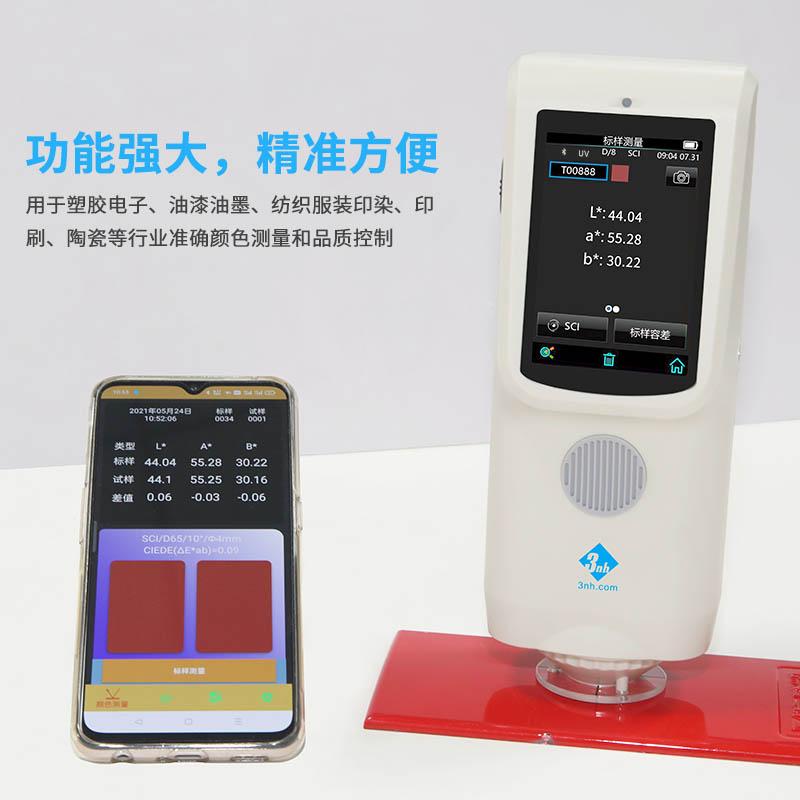

14. The data shows that the mode is diversified

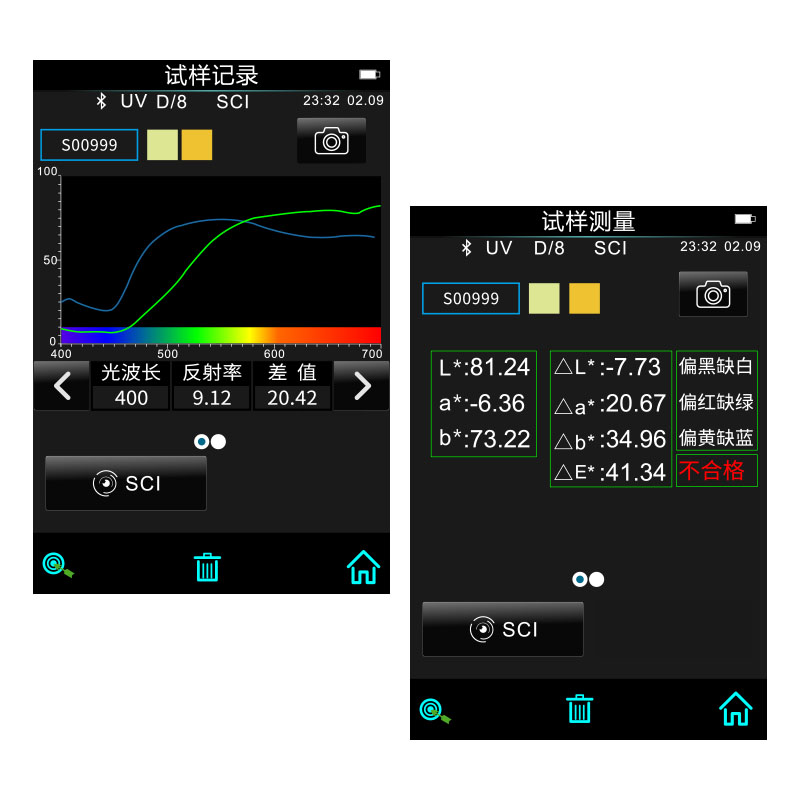

CR9 (Advanced Edition) can intuitively display spectrogram/data, sample chromaticity value, chromatic difference/graph, pass/fail results, color simulation, color bias and other data, which is convenient to view and greatly improves the user's work efficiency.

15. Use it as you like

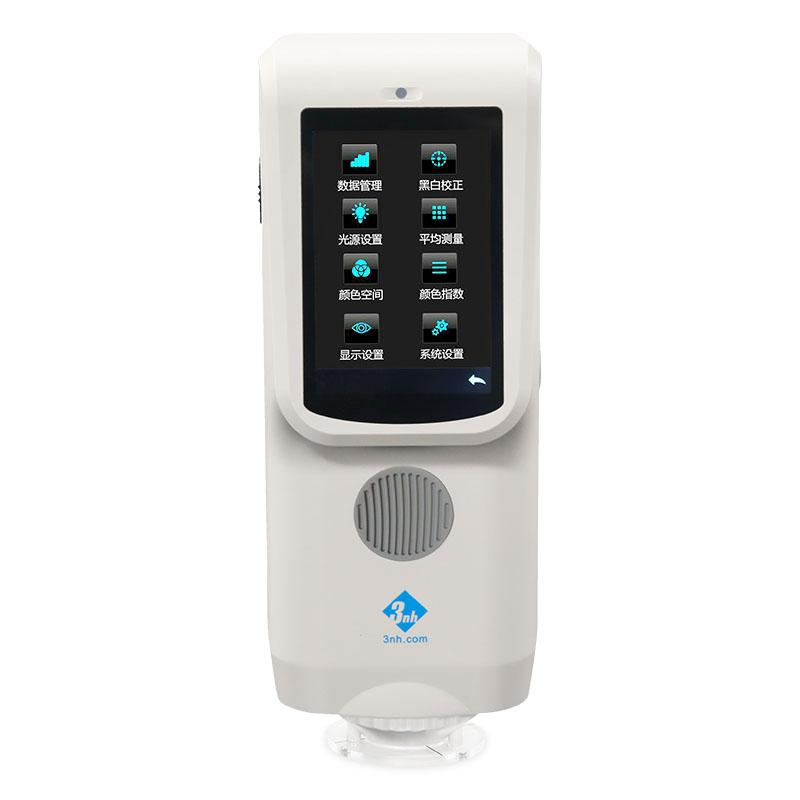

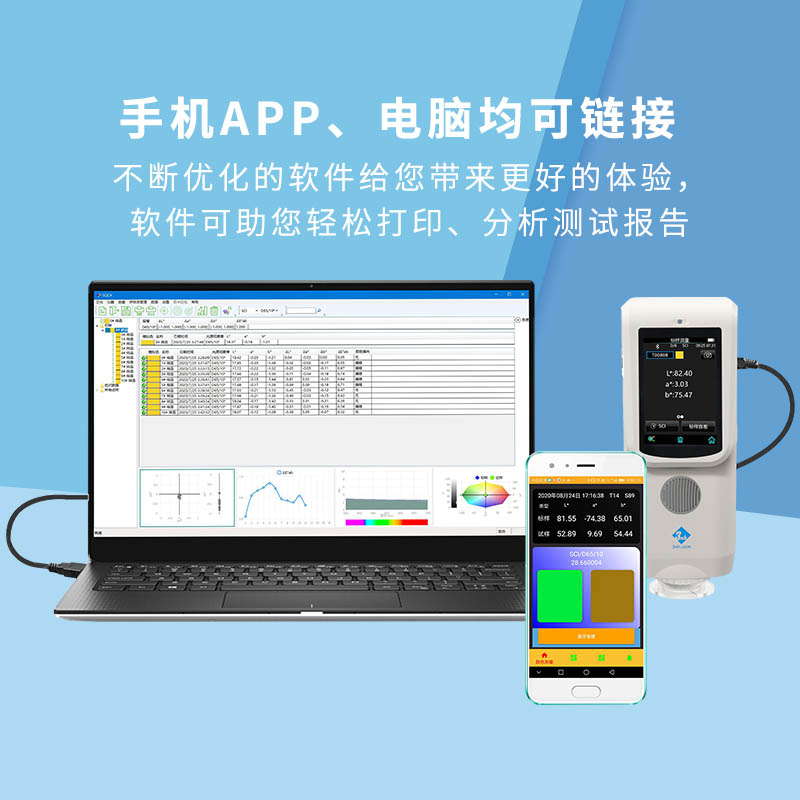

Stand-alone available, 3.5inch true color screen can check data at any time, with SQCX quality management software to facilitate quality monitoring and color data management, with APP to synchronize data at any time, more application scenarios are waiting for you to explore.


Packing list：Host X1, power adapter X1, data cable X1, manual X1, SQCX quality management software (official website download) X1, black and white correction box X1, protective cover X1, wristband X1, 08mm platform diameter X1, 04mm platform diameter X1, APP (official website download) X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
