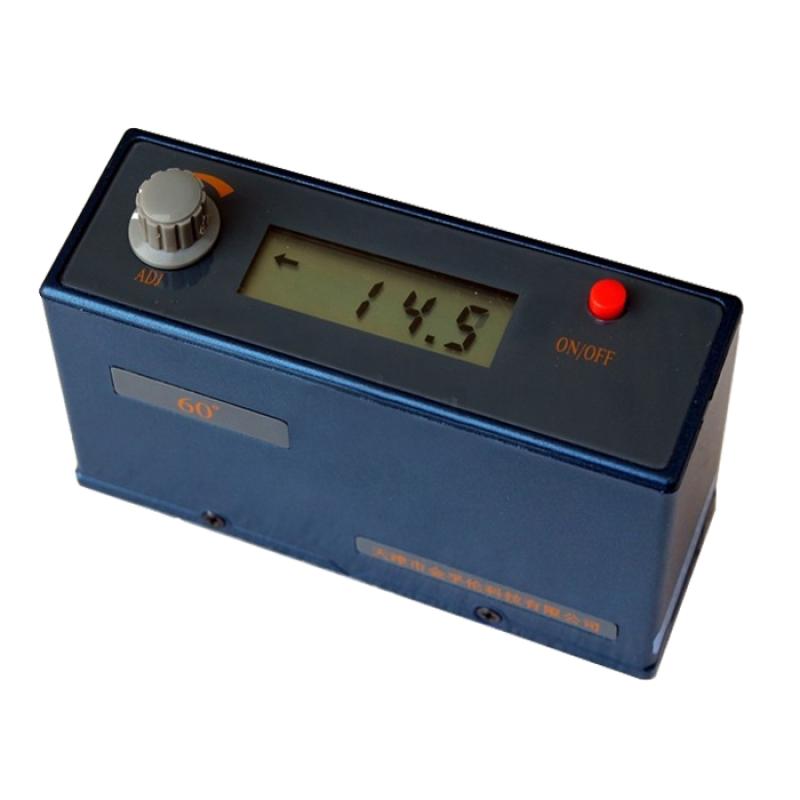

Curved small hole Glossmeter JFL-B60S (curved small hole 1.5 * 3mm ordinary type)

JFL-B60S (curved small hole 1.5 * 3mm ordinary type)

Glossmeter

Introduction

Jinfulan JFL-B60S Surface Small Hole Gloss Meter is divided into two diameters of 1.5*3mm and 3*6mm, both of which are ordinary curved surface gloss meters, and the measured diameter is the small hole type. JFL-B60S Curved Small Hole Gloss Meter is suitable for the measurement of surface gloss values such as medium gloss coatings. It is mainly used to measure some curved surfaces or surfaces with replica shapes. It can measure the tested samples in a small area and obtain more accurate surface gloss. value. The measurement projection angle of the JFL-B60S surface pinhole gloss meter is 60°.

Application

JFL-B60S Curved Small Hole Gloss Meter is suitable for the gloss value of curved surfaces of pens, ballpoint pens, etc., as well as surfaces with complex shapes such as automotive coating surfaces, plastics, decorations, and test samples.

Standards

JFL-B60S curved surface small hole gloss meter complies with ISO-2813, ASTMD2457 and other foreign standards and GB9754, GB9966, GB8807 and other domestic (CN) standards.

Product operation steps

1. Press the switch of the JFL-B60S surface small hole gloss meter , put the JFL-B45 single-angle gloss meter on the black glass standard plate, and turn the adjustment knob to make the displayed value the same as the nominal value of the standard plate.

2. Put the JFL-B60S surface small hole gloss meter on the white ceramic standard plate, and the error between the displayed value and the nominal value of the white ceramic standard plate should not be greater than ±1.2 gloss units, otherwise, you should consider whether the standard plate is dirty or not. .

3. When the gear error is out of tolerance, it needs to be recalibrated.

4. After calibration, the sample can be measured. When the measured value exceeds 199.9 gloss units, an overflow "1" will be displayed.

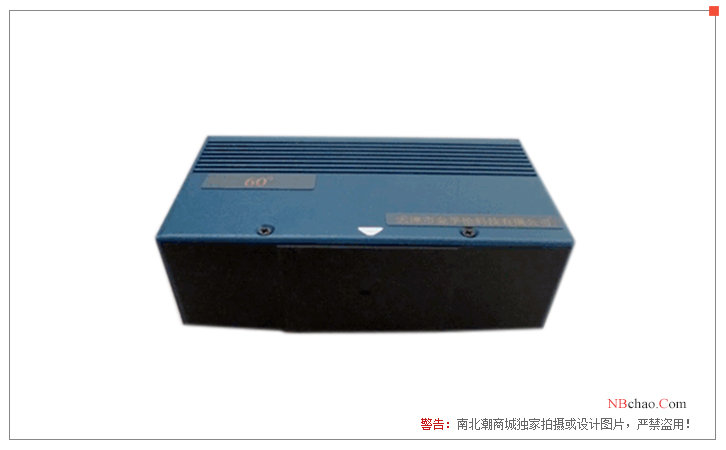

Pictures

Packing list：host (including battery) x1, standard board (including blackboard, whiteboard) x1, manual x1, product certificate x1, instrument case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
