Japan OSP-04/400 printing coating bar WFT 4μm length 400mm

SE
Formed OSP color bar, wet film thickness of 4μm, bar diameter of 400mm, application width of 300mm, suitable for Machinery, Plastic Pipe Fittings, Draft apparatus, R & D institutions, paper, Universities & colleges and other fields.
$172.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

OSP OSP-4/400 coating rodSPEC

OSP OSP-4/400 coating rodDetails

OSP OSP-4/400 coating rodPacking list

SKU
NB003703
Production process
Formed
WFT
4μm
diameter
10mm
Total length
400mm
Application width
300mm
Grip width
50+50mm
material
304 stainless steel
OSP-4/400
coating rod
Formed OSP color bar, wet film thickness of 4μm, bar diameter of 400mm, application width of 300mm, suitable for Machinery, Plastic Pipe Fittings, Draft apparatus, R & D institutions, paper, Universities & colleges and other fields.

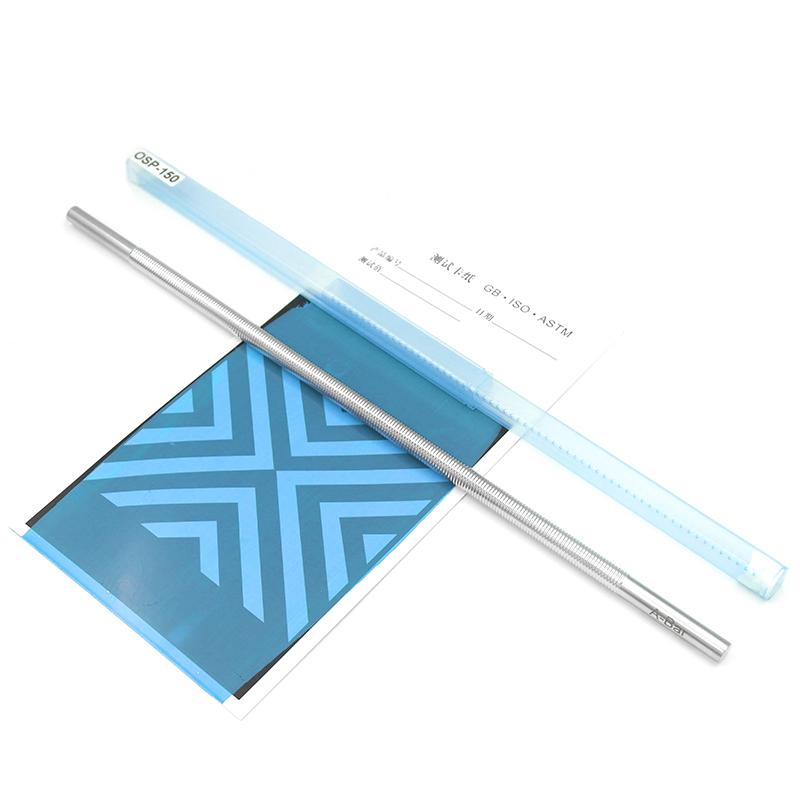

Japan OSP-04/400 printing coating bar WFT 4μm length 400mm Picture


Japan OSP-04/400 printing scraper is used in mechanical equipment, plastic pipe fittings, communication equipment, scientific research units, paper, colleges and universities, building materials, chemical industry, packaging, coatings, printing, resin, pigment paste, biomedicine and other industries user use.

OSP-04 coating rod operation video

OSP-04 coating stick model list

Specification and size of OSP-04 coating stick

Features and advantages of OSP-04 coating stick

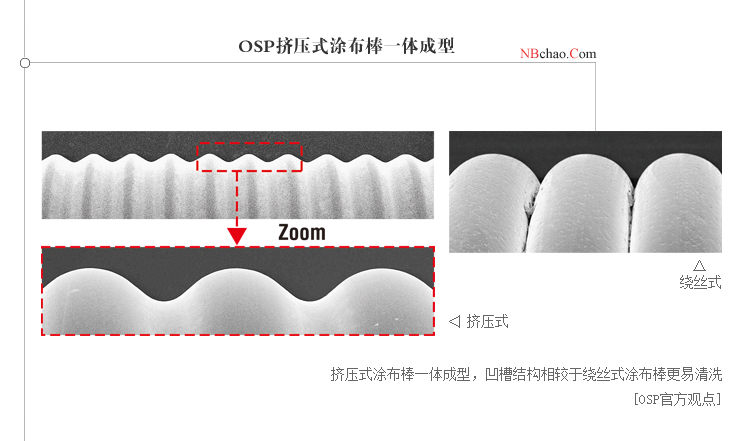

OSP-04 coating stick groove shape

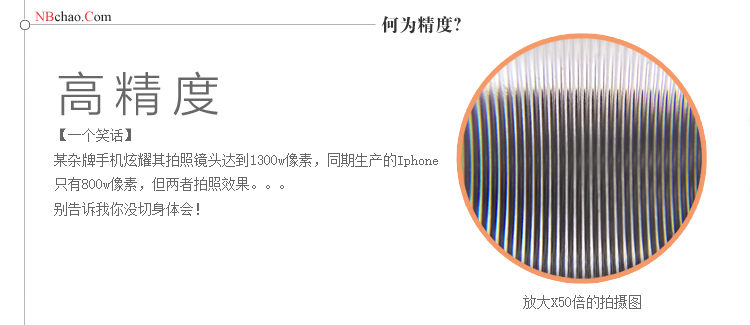

OSP-04 Coating rod with high coating precision

Application of OSP-04 coating stick

Why choose NBCHAO Mall to buy OSP-04 coating stick

OSP-04 coating stick real shot picture 1

OSP-04 coating stick real shot picture 2

OSP-04 Coating stick handle real shot

Optional

Wire Rod Cleaning Machine

LABOratory automatic coating machine

Coating film test jamRK imprint bed

Note: Click on the accessory picture to view Details.

FAQ
QDo you have AB3050 Mayer Rods?
A Hello, Mayer Rods of TQC did not do it. I suggest OSP-04 of Japanese OSP. The film Film thickness and width are the same and can be used instead.
QDoes this printing scraper need a handle?
A Hello, the 400mm one does not need a handle, and there are 5cm hand grips reserved at both ends.
QDoes the Japanese OSP-4/400 Mayer Rods need a handle?
A Hello, this one is 400mm long and has 50mm grip parts at both ends. It does not need to be used with a handle.
QDo you have a 4 micron one here? Non-solvent roller painting, requires a 4-wire Film Applicator test
QHello, can Applicator rod provide trial? We do plastic printing.
A Hello, the OSP Applicator rod provides a free trial. For the specific optional trial rod number, you can take a look at the free trial page https://www.nbchao.com/free/3/
QCan this coating rod be prepative of multi-layer ultra-thin film?
A The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
QDo you have the film scraper involved in ASTMD823?
A The OSP-4/400 film scraper will do
QWhat is the relative number of the number four scraper?
A Hello, different brands, even if the same No. 4 stick, the wet film thickness is different. How many microns do you want the wet film thickness of the Spreader?
QHow many microns is a wire 4 rod?
A The wet film thickness of different brands of No. 4 wire rods is different. RDS is 9.1 μm, OSP is 4 μm, and RK is 40 μm. The selection of wire rods should be based on the wet film thickness required by your actual experiment.
QI want film Film thickness 4 micron rod, this model is accurate?
A Hello, if you said 4um "wet film thickness", it fully meets your requirements. If you mean dry film, you need to convert the solid parts into wet film before selecting the type. The Accuracy of OSP's wire rods is very high, please rest assured to choose.
