Japan OSP-04/250 Proofing rod WFT 4μm length 250mm

SE
The production process is formed, the wet film thickness is 4μm, the diameter is 10mm, the Total length is 400mm, the application width is 300mm, the grip width is 50 + 50mm, and the material is 304 stainless steel.
$152.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

OSP OSP-4/250 coating rodSPEC

OSP OSP-4/250 coating rodDetails

OSP OSP-4/250 coating rodPacking list

SKU
NB003705
Production process
Formed
WFT
4μm
diameter
10mm
Total length
400mm
Application width
300mm
Grip width
50+50mm
material
304 stainless steel
OSP-4/250
coating rod
The production process is formed, the wet film thickness is 4μm, the diameter is 10mm, the Total length is 400mm, the application width is 300mm, the grip width is 50 + 50mm, and the material is 304 stainless steel.
Japan OSP-04/250 Proofing rod WFT 4μm length 250mm Picture

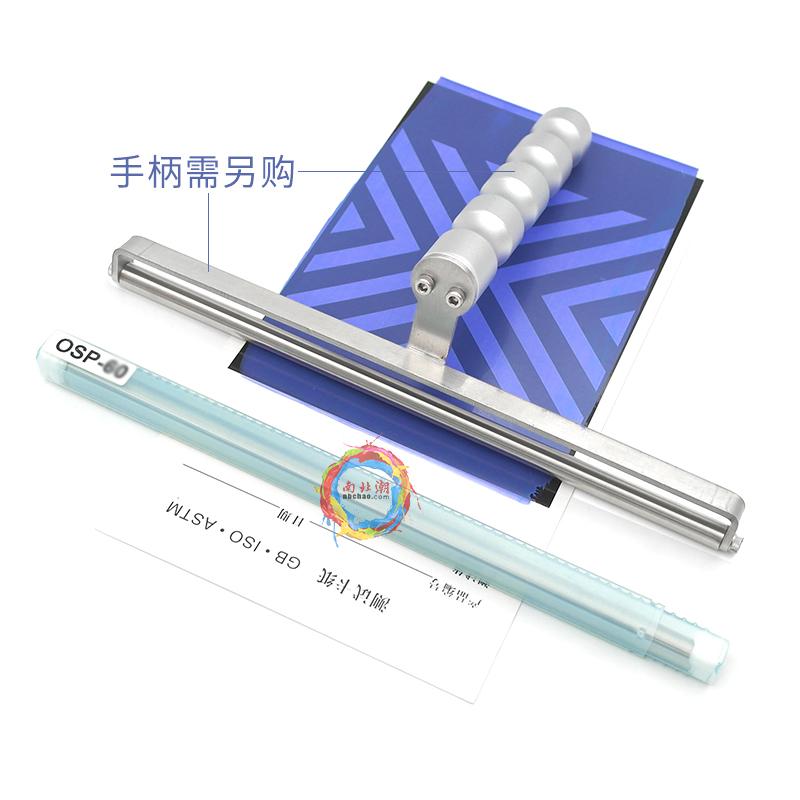

Japan OSP-04/250 gravure scraping stick can be equipped with a coating handle (sold separately) for easy coating and uniform force, showing better coating effect. The wet film thickness was 4 microns. The coating width was 250 mm.

OSP-04 coating rod operation video

OSP-04 coating stick model list

Specification and size of OSP-04 coating stick

Features and advantages of OSP-04 coating stick

OSP-04 coating stick groove shape

OSP-04 Coating rod with high coating precision

Application of OSP-04 coating stick

Why choose NBCHAO Mall to buy OSP-04 coating stick

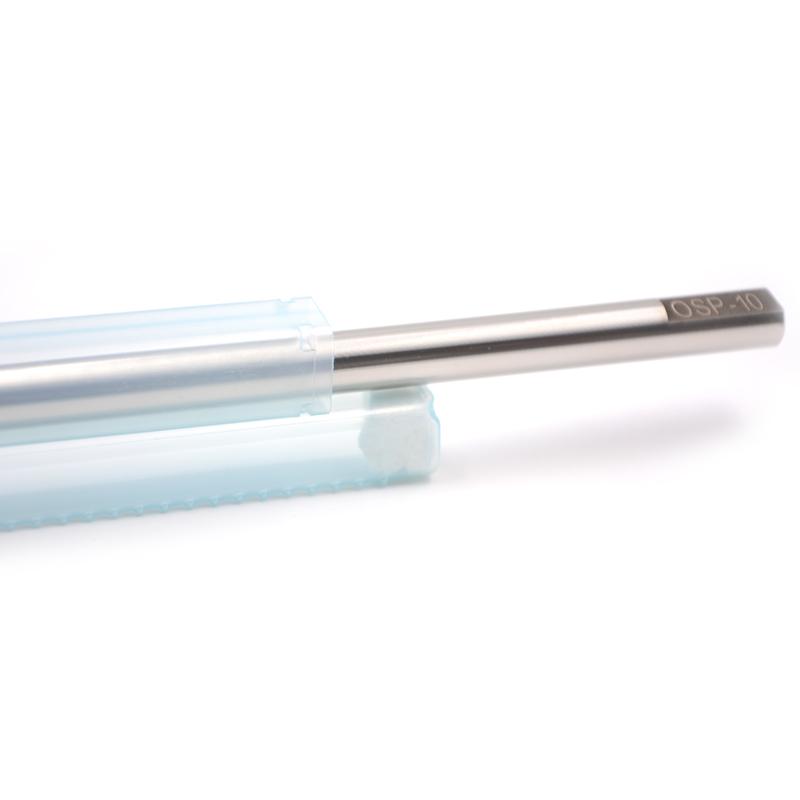

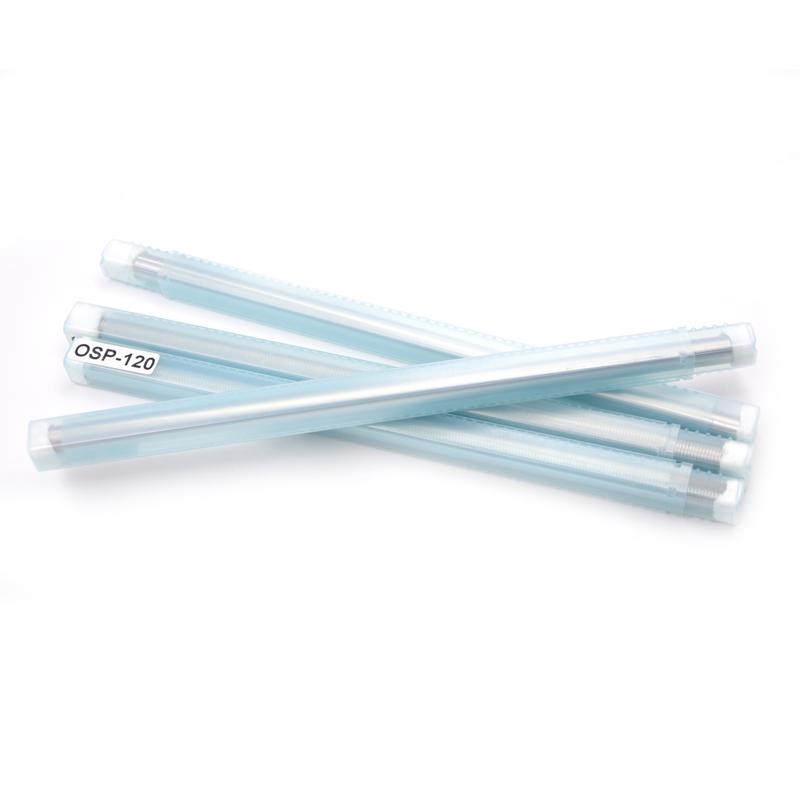

OSP-04 coating stick real shot picture 1

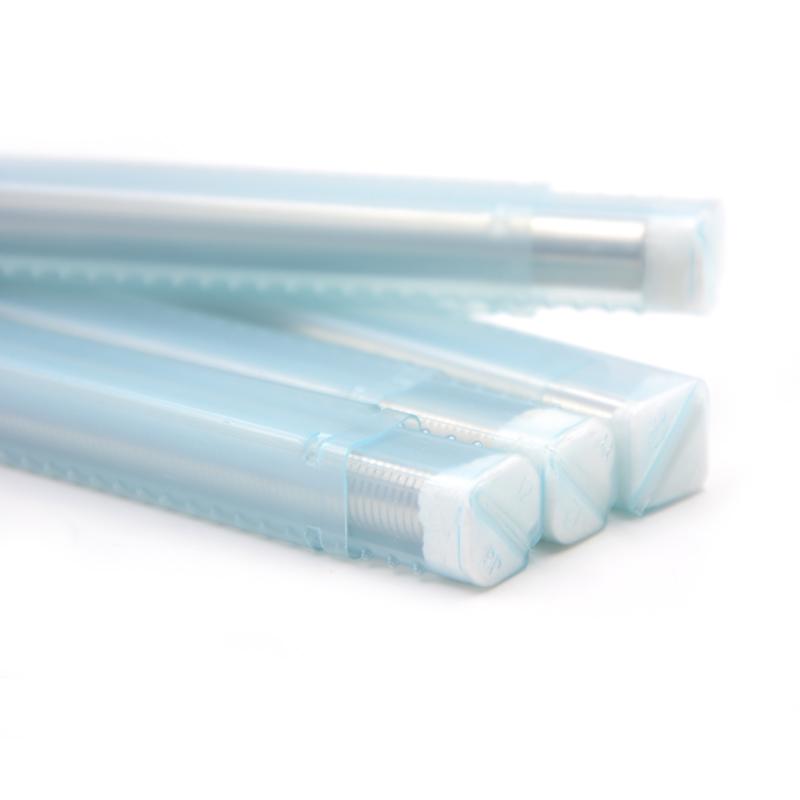

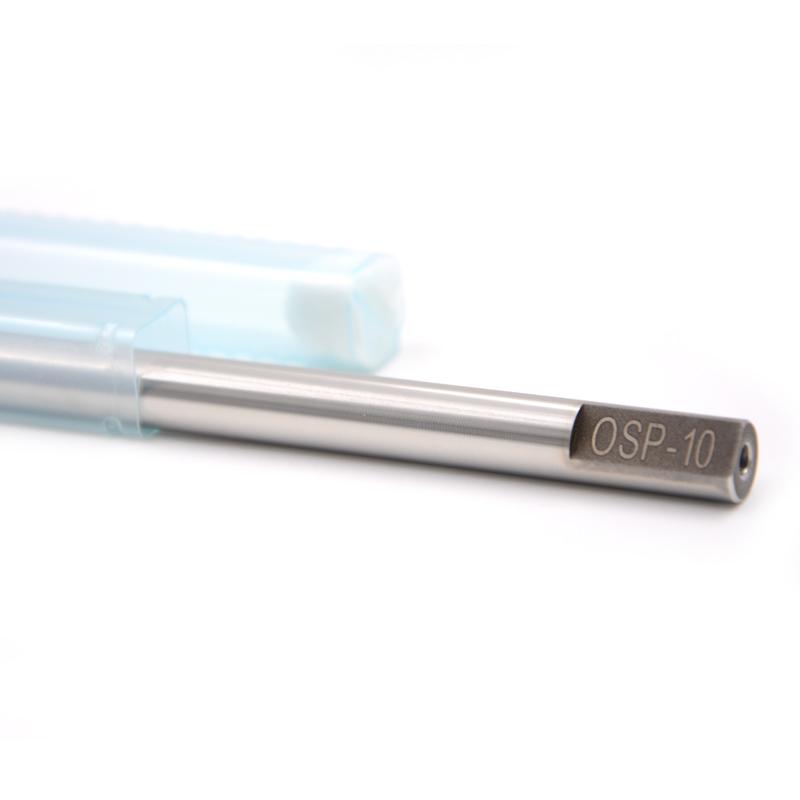

OSP-04 coating stick real shot picture 2

OSP-04 Coating stick handle real shot

Optional

Wire Rod Cleaning Machine

LABOratory automatic coating machine

Coating film test jamRK imprint bed

Note: Click on the accessory picture to view Details.

FAQ
QDecorative paper Printing ink 5 microns or less, choose which stick number.
A OSP2~ 4 are available, and the scratch film thickness is 2~ 4μm.
QOSP-4/250 Applicator rod L250. Is it shipped to Taiwan?
A We only do delivery in mainland China.
QCan OSP Proofing rod be used for Colorimetric printing?
A Hello, it's OK.
QCan I get a free handle when I buy an OSP Proofing rod?
A Hello, the handle needs to be purchased separately, and there is no gift.
QIs the OSP Proofing rod available in 4 microns?
A Hello, yes, the film thickness of OSP-4 type film is 4μm.
QDo you have the No. 4 stick with 240mm?
A Hello, the length of OSP Mayer Rods is only 250mm, not 240mm.
QCan this coating rod be prepative of multi-layer ultra-thin film?
A The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
QI want to do a test on the ASTMD823 standard. Is this Applicator rod okay?
A Sure
QWhat is the relative number of the number four scraper?
A Hello, different brands, even if the same No. 4 stick, the wet film thickness is different. How many microns do you want the wet film thickness of the Spreader?
QHow many microns is a wire 4 rod?
A The wet film thickness of different brands of No. 4 wire rods is different. RDS is 9.1 μm, OSP is 4 μm, and RK is 40 μm. The selection of wire rods should be based on the wet film thickness required by your actual experiment.
