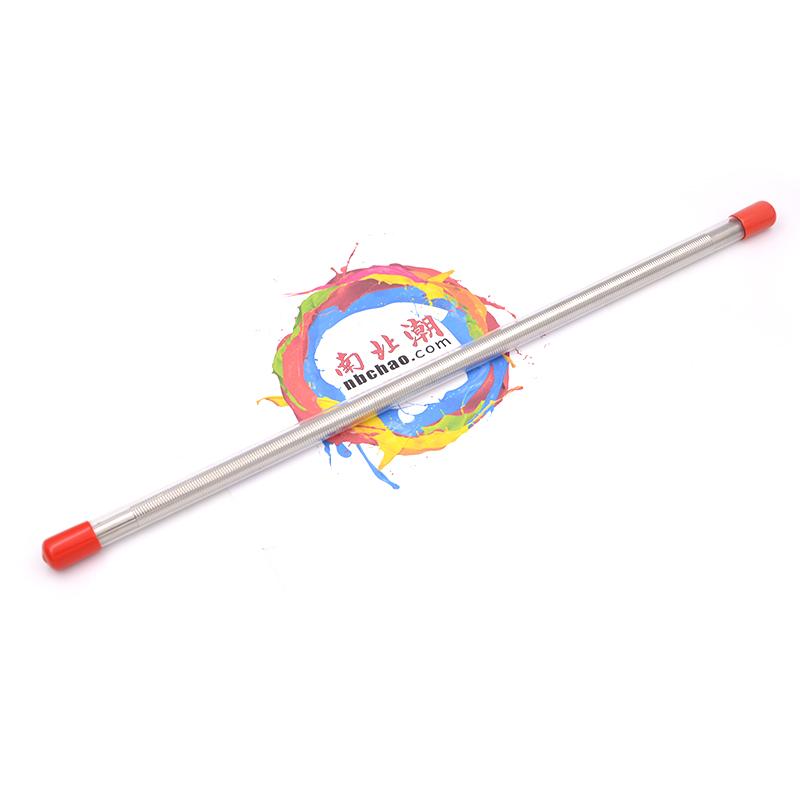

ZHANYI No. 200, coating bar film thickness 200μm Total length 400mm

SE
Formed production process, 200μm wet film thickness, rod diameter 10mm, rod length 400mm, effective application width 320mm, hand width 40 + 40mm, stainless steel material.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

ZhanYi ZY-200/400 Mayer RodsSPEC

ZhanYi ZY-200/400 Mayer RodsDetails

ZhanYi ZY-200/400 Mayer RodsPacking list

SKU
NB003706
Production process
Formed
WFT
200μm
diameter
10mm
Total length
400mm
Application width
320mm
grip width
40+40mm
material
stainless steel
ZY-200/400
Mayer Rods
Formed production process, 200μm wet film thickness, rod diameter 10mm, rod length 400mm, effective application width 320mm, hand width 40 + 40mm, stainless steel material.
ZHANYI No. 200, coating bar film thickness 200μm Total length 400mm Picture

The No. 200 paint scraper is Zhanyi’s largest paint scraper model, which can coat a wet film with a thickness of 200 microns, and the coating film accuracy is 1 micron. Zhanyi paint scraper breaks the predicament of low-priced wire-wound wire rods that are easy to break and difficult to clean in the past. It is an extruded paint scraper produced by introducing foreign professional technology. It not only has a favorable price, but also has a good coating effect and is easy to clean. convenient. Zhanyi coating scraper is favored by the laboratories of various universities and colleges in CHINA.

Zhanyi paint scraper operation video

Zhanyi No. 200 coating scraper Specifications

Features and advantages of Zhanyi No. 200 coating scraper

Zhanyi No. 200 paint scraper application industry

Zhanyi No. 200 paint scraper real shot picture 1

Zhanyi No. 200 paint scraper real shot picture 2

Optional

Wire Rod Cleaning Machine

LABOratory automatic coating machine

Coating film test jamRK imprint bed

Note: Click on the accessory picture to view Details.

FAQ
QAre all Mayer Rods available for inspection in the JB/T7663.2 standard?
A Not necessarily, but this ZY-200/400 Mayer Rods can be considered.
QApplicator rod can be used to make nano ATO transparent insulating coatings?
A OK
QWe are doing printing materials, customers are now asking manual Spreader stick Spreader Film thickness 0.2mm Spreader Film thickness 0.3mm have it?
A Is the Spreader Film thickness wet film thickness or thickness of dry film you are referring to? If it is a wet film, the 200 to 300 μm series should be selected, but the Mayer Rods are up to 200 μm. If it is a thickness of dry film, Mayer Rods are not required for this range. The main purpose of the Spreader stick is to control the "accurate" wet film. Generally, the film thickness can be adjustable Film Applicator or I-type Film Applicator.
