Japan

Japan OSP-08/400 stainless steel coating bar WFT 8μm length 400mm

SE
Formed, 8μm wet film thickness, diameter 10mm, Total length 400mm, application width 300mm, hand width 50 + 50mm, material 304 stainless steel. Can be hand scraped or matched with film mechanism.
$172.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

OSP OSP-8/400 coating rodSPEC

OSP OSP-8/400 coating rodDetails

OSP OSP-8/400 coating rodPacking list

SKU
NB003716
Production process
Formed
WFT
8µm
diameter
10mm
Total length
400mm
Application width
300mm
Grip width
50+50mm
material
304 stainless steel
OSP-8/400
coating rod
Formed, 8μm wet film thickness, diameter 10mm, Total length 400mm, application width 300mm, hand width 50 + 50mm, material 304 stainless steel. Can be hand scraped or matched with film mechanism.

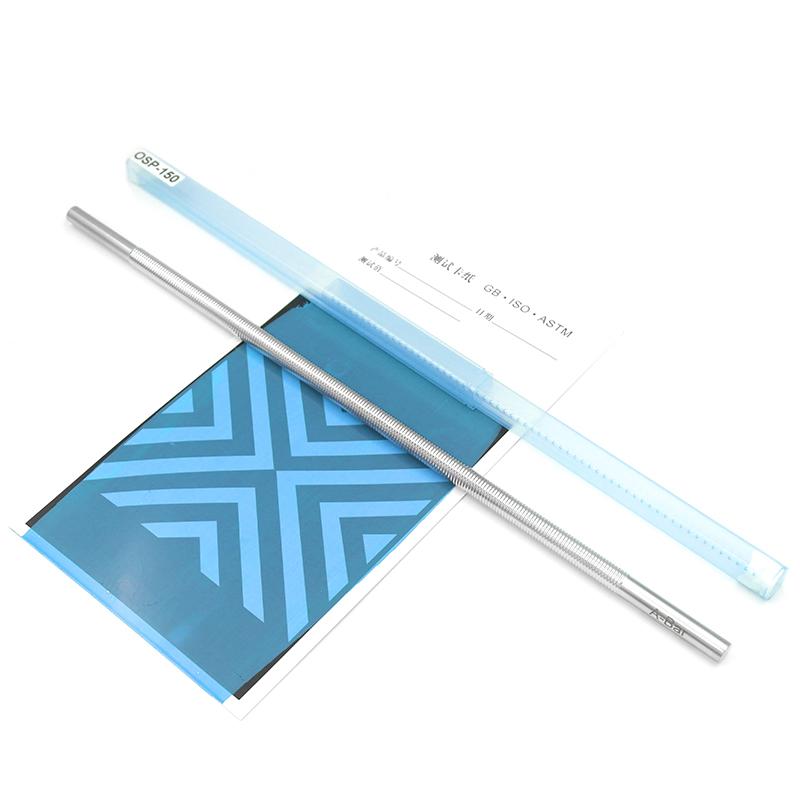

Japan OSP-08/400 stainless steel coating bar WFT 8μm length 400mm Picture


Japan's OSP-08/400 impermeable steel scraper quickly won the favor of a group of high-end customers because of its easy cleaning, continuous wire and high precision. OSP-08 film coating stick can prepare 8μm wet film coating. Most of the wet films known in the market with a wet film size of about 1-50um are purchased from imported coating rods.

OSP-08 coating rod operation video

List of OSP coating rod models

Specification and size of OSP-08 coating stick

Features and advantages of OSP-08 coating stick

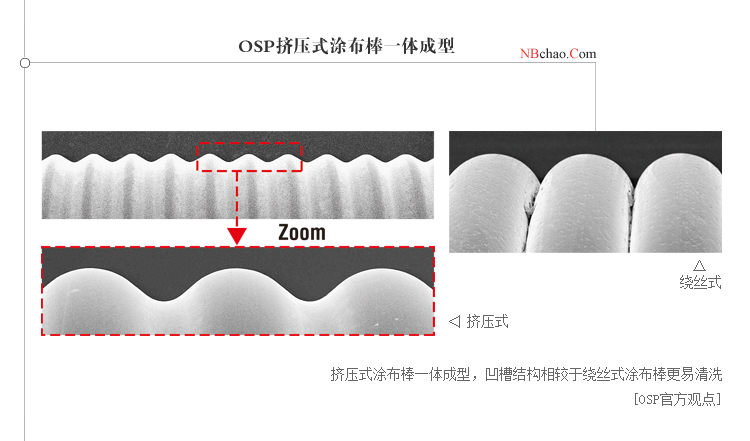

OSP-08 coating stick groove shape

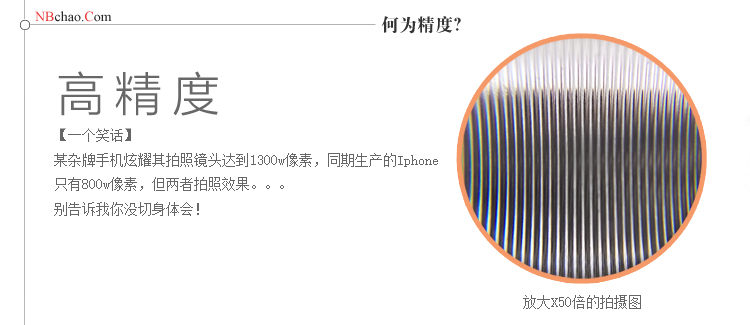

OSP-08 film coating rod with high coating precision

Application of OSP-08 coating stick

Why choose NBCHAO Mall to buy OSP-08 coating stick

OSP-08 coating stick real shot picture 1

OSP-08 coating stick real shot picture 2

OSP-08 Coating stick handle real shot

Optional

Wire Rod Cleaning Machine

LABOratory automatic coating machine

Coating film test jamRK imprint bed

Note: Click on the accessory picture to view Details.

FAQ
QCan you repeatedly scrape back and forth when scraping this Mayer Rods?
A Hello, no, Mayer Rods are all scraped down from top to bottom, and cannot be scraped back and forth.
QCan this coating rod be prepative of multi-layer ultra-thin film?
A The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
QIs this the film scraper mentioned in GB/T26461?
A OK
QCan the conductive liquid be coated with an OSP Spreader stick, 8 microns, which brand is better?
A Can. It is recommended that you use OSP8 Spreader Spreader.
QHow thick can this Spreader scraper be applied?
A Hello, this is No. 8 Spreader scraper, which can Spreader 8 micron wet film thickness.
QCan you provide a contract?
A Hello, yes. After placing an order, the [indent details] page can make a contract. For specific details, please contact customer service.
