China TBJ-A1-DJ1 bar Lab Film Applicator Perovskite Cell coater Automatic Inking

SE
Customized Film Applicator, equipped with automatic inking system, scraping speed 2~ 200mm/s, effective coating area 480mmx800mm, bottom plate material Glass plate.
Model：
Contact
Details SPEC Con VIDEO CAT OI
Similar products

zy TBJ-A1-DJ1 Automatic Film ApplicatorSPEC

zy TBJ-A1-DJ1 Automatic Film ApplicatorDetails

zy TBJ-A1-DJ1 Automatic Film ApplicatorPacking list

SKU
NB037160
Coating method
bar
Mayer Rod Thickness Range
1-571.5 μm (Spreader thickness according to bar model)
Mayer Rod Accuracy
±0.001mm
Coating speed
5-200Mm/s (< 5mm/s can be customized)
Dimension
880 * 1000 * 500Mm (subject to actual design parameters)
Bottom plate material
Glass plate
Control Panel
LCD touch screen
Substrate clamping method
Mechanical fixture
Power Supply
Single phase 220V 50Hz 100VA
Weight
180kg
Shaft transmission mode
Timer belt
Volume of sealing drum
1 kg (with automatic mixing function)
Power Voltage
220V,50Hz
Feeding principle
Air source pressure flows out
Feed Sport Mode
Reciprocating linear motion
Feeding back and forth traverse speed
2-150mm/s
spit Volume
Adjustable (by adjusting the air pressure and the running speed of the discharge port)
Shaft transmission mode
Timer belt
Feeding system air source
0.6Mpa, can be connected to the trachea of φ 8 (self-equipped)
Power Voltage of charging system
220V,50Hz
Tank pressure
Maximum withstand 8Mpa
Material of feeding barrel
304 stainless steel with a wall thickness of 4mm
Feeding bucket configuration
Safety valve, pressure regulating valve, pressure gauge, discharge valve
Feeding drum Volume
1L
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Automatic lame plating device, UV curing device, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-A1-DJ1
Automatic Film Applicator
Customized Film Applicator, equipped with automatic inking system, scraping speed 2~ 200mm/s, effective coating area 480mmx800mm, bottom plate material Glass plate.

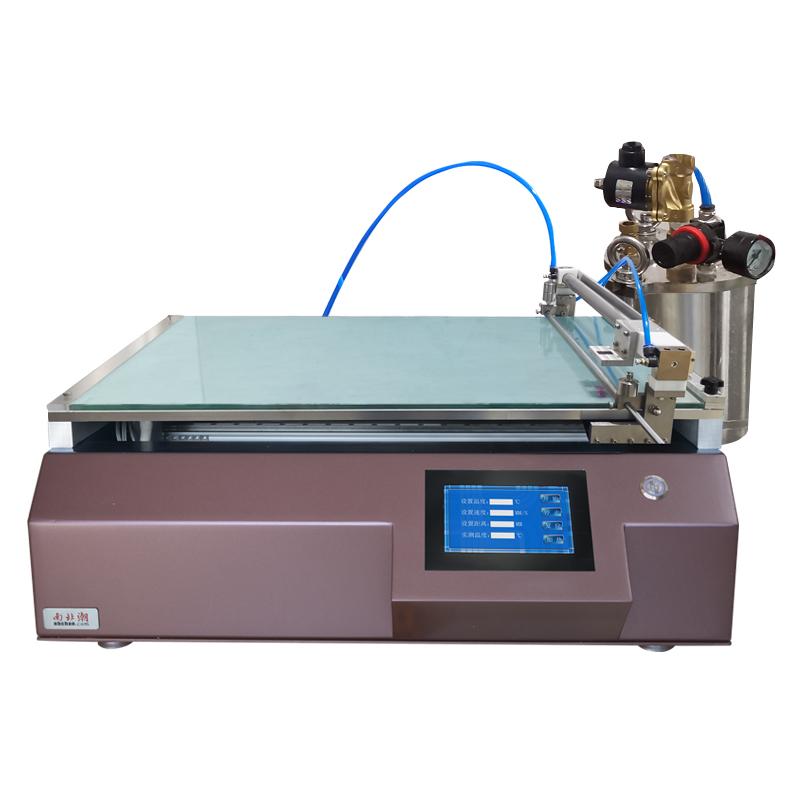

China TBJ-A1-DJ1 bar Lab Film Applicator Perovskite Cell coater Automatic Inking Picture

The touch laboratory TBJ-A1 wire rod coating testing machine is a newly upgraded product that is carefully designed to coat precise wet films on different substrates. It can repeatedly and continuously prepare smooth, flat and flawless coatings. After testing samples, the equipment has been favored by many familiar companies, research and development institutions, and colleges and universities after it was put into the market.

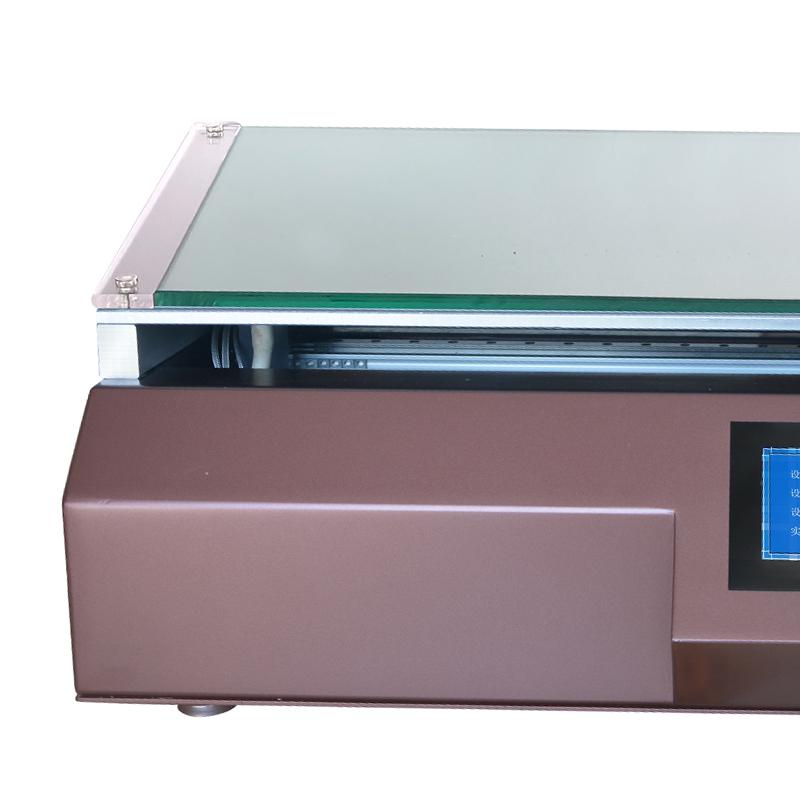

CHINA TBJ-A1-DJ1 Wire Rod Applicator, Perovskite Cell Applicator, Automatic Inking Figure 1

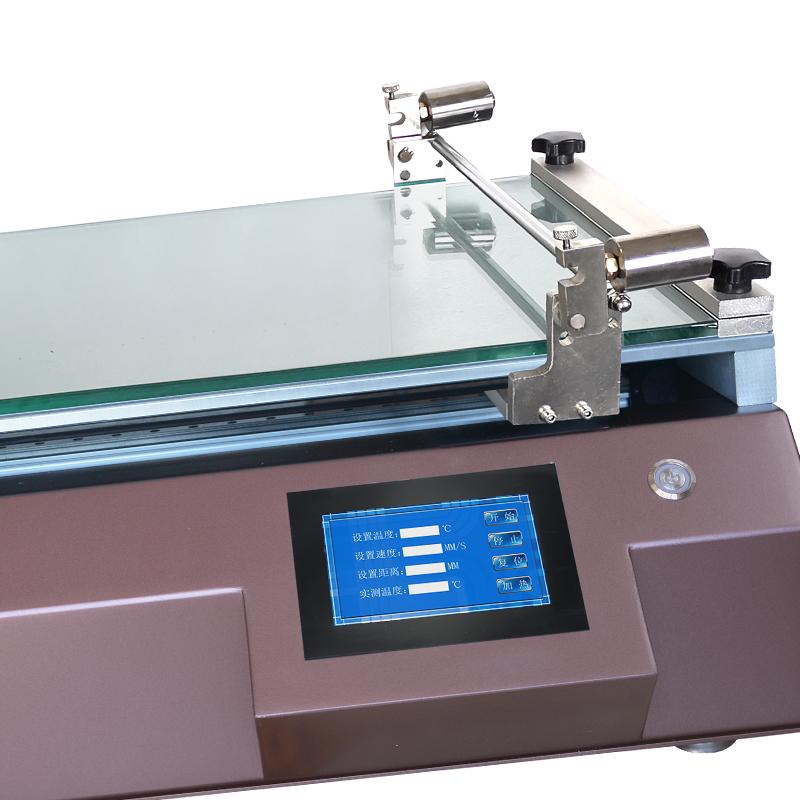

CHINA TBJ-A1-DJ1 Wire Rod Applicator, Perovskite Cell Applicator, Automatic Inking Figure 2

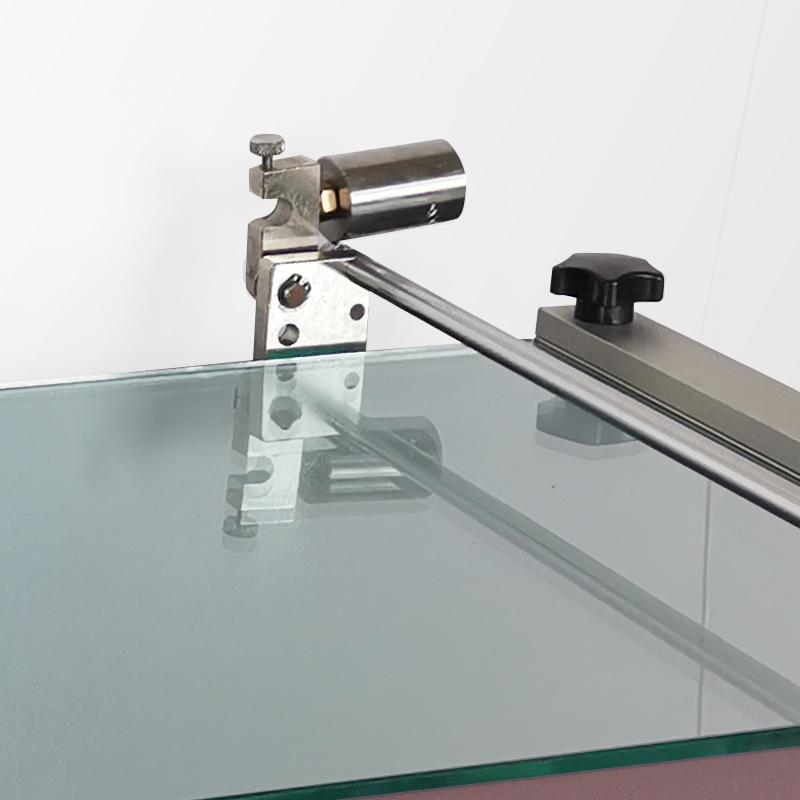

CHINA TBJ-A1-DJ1 Wire Rod Applicator, Perovskite Cell Applicator, Automatic Inking Figure 3

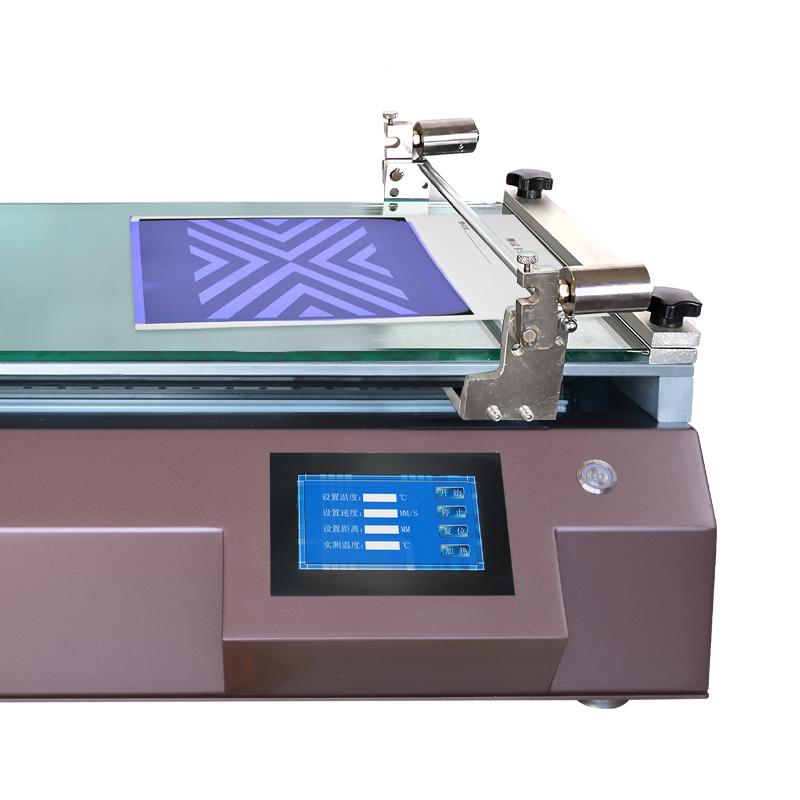

CHINA TBJ-A1-DJ1 Wire Rod Applicator, Perovskite Cell Applicator, Automatic Inking Figure 4

CHINA TBJ-A1-DJ1 Wire Rod Applicator, Perovskite Cell Applicator, Automatic Inking Figure 5

CHINA TBJ-A1-DJ1 Wire Rod Applicator, Perovskite Cell Applicator, Automatic Inking Figure 6CHINA TBJ-A1-DJ1 Wire Rod Applicator, Perovskite Cell Applicator, Automatic Inking Figure 7

CHINA TBJ-A1-DJ1 Wire Rod Applicator, Perovskite Cell Applicator, Automatic Inking Figure 8

CHINA TBJ-A1-DJ1 Wire Rod Applicator, Perovskite Cell Applicator, Automatic Inking Figure 9


Optional

Coating wire bar applicator

Coating film test paper

Drawdown Plate

FAQ
QCan Experimental Film Applicators Scratch Film About 1μm?
A The film can be scraped to 1.5 μm.
QDoes the Battery Lab Film Applicator not have a vacuum adsorption function?
A No, this one has Miscellaneous vacuum adsorption function.
QCan this scrape the nano-graphene film?
A OK
QFilm Coater can control the film thickness to what? Is there any special requirement for film formation solution?
A The film thickness control of the Film Coater is determined by the wire rod or doctor blade. The wire rod can be scraped at a minimum of 1.5um, and the doctor blade can be scraped at a minimum of 10um. If the viscosity is higher than 1000cp, use the doctor blade, and if it is low, use the wire rod. Volatile liquids are difficult to control, and heating reactions such as hot-melt adhesives are required.
QDoes this Film Applicator have adsorption function?
A Hello, no.
QHow thick can the lowest scrape, is 2um okay?
A The minimum can be scraped 1.5 microns. 2 micron film is no problem.
