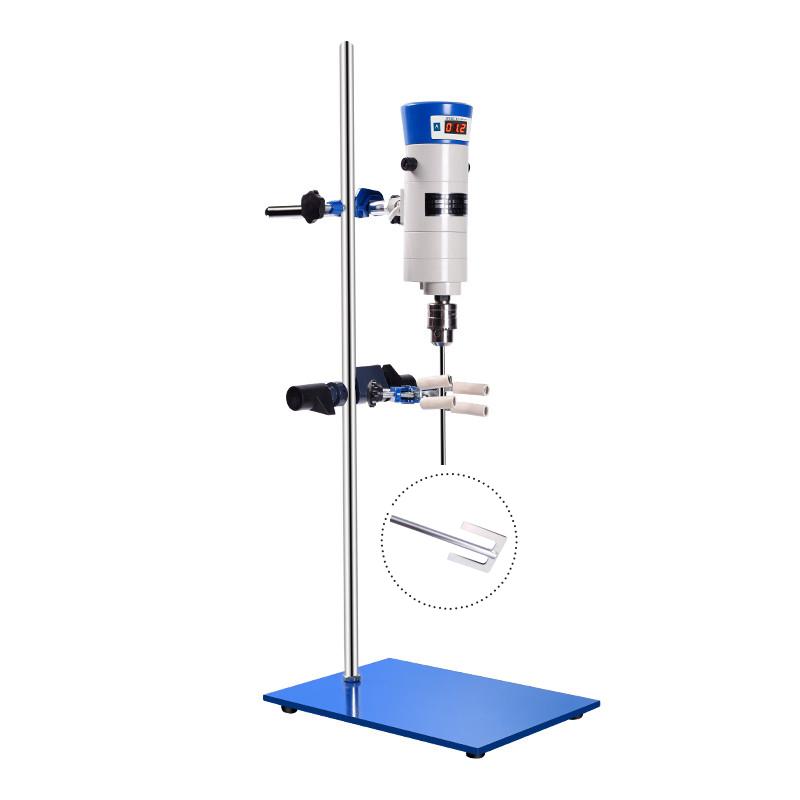

HUXI JB50-SH Test Stirrer Square Anchor Impeller Slurry 70mm Length 350mm

JB50-SH/20030006

Digital powerbasic stirrer

Equipped with 70mm square anchor Impeller, aluminum metal body, 100~ 1300rpm Rotation speed, 15L Processing capacity, digital display stepless speed change, series motor + multi-stage Non-metallic gear. Stable and low noise.

Applications

The laboratory mixer is suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields, and is an experimental equipment for mixing and stirring liquid experimental media. The product concept is novel in design, professional in manufacturing technology, large torque output in low-speed operation, and good continuous and practical performance. The drive motor adopts the series excitation micro motor with high power and compact structure, which is safe and reliable in operation; the control motion state adopts the numerical control touch stepless governor, which is convenient for speed regulation, the digital display of the running speed status, and the data collected is correct; the output booster mechanism adopts multi-stage non-metallic gear to transmit the booster, the torque is doubled, the running state is stable, the noise is low; the stirring rod is specially tied, and the unloading and assembly are simple and flexible. It is a satisfactory equipment for scientific research, product development, quality control and production process application of factories, scientific research institutions, colleges and universities and medical units.

Features

● There are many types of stirring impellers, various specifications and a wide range of adaptation;

● Special rolling head for stirring paddle, easy to unload and install, flexible and easy to operate;

● Open rack: wide selection of media containers, easy to stir and mix;

● Various instrument specifications to meet the stirring needs of different sample capacities and different viscosities;

● Stepless variable speed control: arbitrarily select the speed of experimental operation, with a wide range of applications and convenient speed regulation;

● The aluminium metal casing ensures long-lasting mechanical accuracy and electrical performance for continuous use;

● The drive motor adopts a series excitation micro motor with high power and compact structure, which is safe and reliable in operation;

● The product design is novel, the manufacturing process is professional, the torque output of low-speed operation is large, and the continuous use performance is good;

● Multi-stage non-metallic gears are used to transmit force enhancement, the torque is multiplied, the running state is stable, and the noise is low;

Stirring paddles are optional

1. Round three-hole fan-type stirring paddle

Application: Gentle stirring performance, medium and low speed use, used in the medium that needs to be gentle and stirred.

style	Slurry diameter mm	Rod diameter mm	Rod length mm
	50	8	300
	50	8	400
	50	8	500
	70	8	300
	70	8	350
	100	10	300
	100	10	400
	100	10	500

2. Dissolving stirring paddle

Application: Medium and high speed use, so that the mixed medium from the top and bottom to produce radial flow, the formation of strong turbulence and high shear force can crush the particles in the liquid, suitable for medium and high viscosity liquids.

style	Slurry diameter mm	Rod diameter mm	Rod length mm
	30	8	350
	40	8	350
	50	8	350
	60	8	350
	80	8	350
	100	8	350
	120	8	350
	150	8	350

3. Three-blade stirring paddle

Application: Stainless steel material, so that the mixed medium flows axially from top to bottom, generating local shear force, which can be used at medium and high speeds.

style	Paddle width mm	The paddles are high mm	Rod diameter mm	Rod length mm
	70	1.5	6	300
	70	1.5	6	350
	70	1.8	6	300
	70	1.8	6	350
	70	1.5	8	300
	70	1.5	8	350
	70	1.8	8	300
	70	1.8	8	350

4. Centrifugal stirring paddle

Application: Folding stirring paddle, the two blades expand with the increase of speed, medium and high speed use, suitable for narrow mouth container paddle height 10mm.

style	Slurry diameter mm	Rod diameter mm	Rod length mm
	90	8	300
	90	8	350
	90	8	400
	90	8	500
	90	10	300
	90	10	400
	90	10	500
	90	10	650

5. Four-blade stirring paddle

Application: Standard stirring paddle, stainless steel, medium and high speed use, suitable for medium and low viscosity.

style	Slurry diameter mm	Rod diameter mm	Rod length mm
	50	8	300
	50	8	400
	50	8	350
	50	8	500
	100	10	300
	100	10	400
	100	10	500

6. Screw stirring paddle

Application: Slow stirring paddle, often operated in the laminar flow zone, the liquid rises or falls along the spiral surface to form an axial up and down circulation, suitable for the mixing and heat transfer of medium and high viscosity liquids.

style	Slurry diameter mm	Rod diameter mm	Rod length mm
	50	8	350
	60	8	350
	70	8	350
	80	8	350
	90	8	350
	100	8	350

7. Round six-hole fan-type stirring paddle

Application: Tangential flow is produced during stirring, small turbulence, good heat exchange performance, mild stirring performance, medium and low speed use.

style	Slurry diameter mm	Rod diameter mm	Rod length mm
	50	8	300
	50	8	400
	50	8	350
	50	8	500
	100	10	300
	100	10	350
	100	10	400
	100	10	500

8. Slotted stirring paddle

Application: Stainless steel, medium to high speed use, suitable for medium and low viscosity mixing.

style	Slurry diameter mm	Rod diameter mm	Rod length mm
	50	8	300
	50	8	400
	50	8	500
	60	8	300
	60	8	350

9、Round anchor impeller

Application: Tangential flow is generated during stirring, and a high shear rate is formed at the edge, so that the mixed medium is not easy to deposit on the vessel wall, and is suitable for low speeds.

style	Paddle width mm	The paddles are high mm	Rod diameter mm	Rod length mm
	100	60	8	300
	100	60	8	350

10. Square anchor stirring paddle

Application: Low speed use, tangential flow, high shear rate formed at the edge, so that the mixed medium is not easy to be deposited on the container wall, suitable for polymer reaction and dispersion of minerals in liquid, is a satisfactory stirring element for medium and high viscosity fluids.

style	Paddle width mm	Rod diameter mm	Rod length mm
	70	8	300
	70	8	350
	70	8	500
	90	10	650
	140	10	800

11. Quadrangular fan-type stirring paddle

Application: Stainless steel, medium and low speed use

style	Paddle width mm	Rod diameter mm	Rod length mm
	50	8	350
	60	8	350
	60	8	350
	70	8	350

Packing list：Host X1, Manual X1, Certificate X1, Warranty Card X1, Impeller X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
