Japan OSP-10/250 scraper inks stick WFT 10μm length 250mm
SEThe production process is formed, the wet film thickness is 10μm, the diameter is 10mm, the Total length is 250mm, the application width is 250mm, the grip width is 0, and the material is 304 stainless steel.
$152.00/piece
PromotionLoading...
Coupon
Model：
OSP-10/250
Similar products
-
RDS 4 #3/8 "Mayer Rods WFT 9.1μm inks Color tinctorial strength inspection$ 161.00SE -
Japan OSP-10/400 scraper inks stick WFT 10μm length 400mm$ 172.00SE -
Japan OSP-10/60 stainless steel bar WFT 10μm length 60mm$ 115.00SE -
Printing ink Mayer-Rod tinctorial strength inspection formed Mayer-Rod Film Applicator 10μm Colorimetric$ 95.00SE
OSP OSP-10/250 coating rodSPEC
OSP OSP-10/250 coating rodDetails
OSP OSP-10/250 coating rodPacking list
- SKU
- NB003735
- Production process
- Formed
- WFT
- 10µm
- diameter
- 10mm
- Total length
- 250mm
- Application width
- 250mm
- Grip width
- 0
- material
- 304 stainless steel
OSP-10/250
coating rod
The production process is formed, the wet film thickness is 10μm, the diameter is 10mm, the Total length is 250mm, the application width is 250mm, the grip width is 0, and the material is 304 stainless steel.

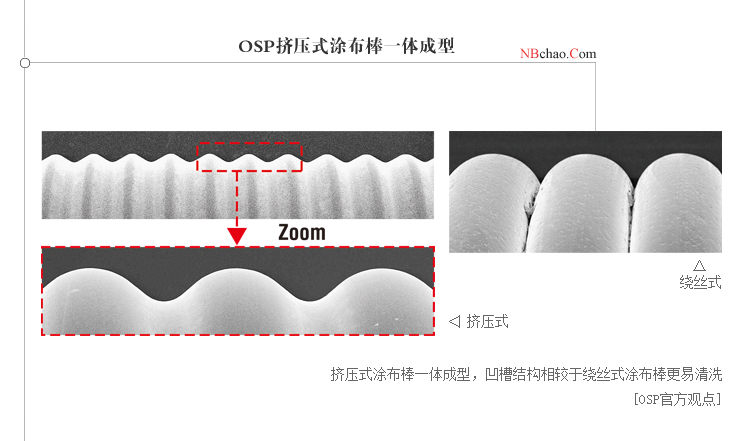

Japan OSP-10/250 ink scraping stick can be used with L250 handle. Because of its advantages of easy cleaning and continuous threading, it is gradually favored by users in CHINA, and it has penetrated into all walks of life. It is used for coating wet films with a specific thickness. , used to measure hiding power, color correction and color matching, etc., and OSP stainless steel wire rods also provide customized services, which can be customized to produce rods. Japan OSP-10/250 scraping ink stick stainless steel wire rod can be coated with a wet film thickness of 10 microns.
Optional
 |
|
 |  |
Note: Click on the accessory picture to view Details.
FAQ
QIs there a difference between a wire rod and a Wire-wound drawdown bar?
A
No difference, just a different name
QCan OSP10 Applicator rod be used for Adhesives with high viscosity?
A
Hello, if the viscosity is too high, Mayer Rods are generally not used.
QWhat is the film width of this OSP-10 Applicator rod?
A
Hello, the film width of this OSP-10/250 is 250mm, and the total length is also 250mm.
QCan this coating rod be prepative of multi-layer ultra-thin film?
A
The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
QDoes the OSP Applicator rod meet the GB/T26461 standard?
A
Applicator rod of the OSP-10/250 can refer to
QWhat kind of scraper stick can be used for anodized aluminum film 10 microns?
A
This model applies
QI want to apply some polymer solution (viscosity is about 500-1500mPa s) with an osp10 micron rod. Are there any scratches?
A
Dear, the viscosity of your sample solution is very high, and there may be subtle scratches!
