Japan OSP-10/400 scraper inks stick WFT 10μm length 400mm

SE
Formed Proofing rod, wet film thickness 10μm, stainless steel material, can be used for manual film or with Film Applicator automatic film, high-precision, especially suitable for inks to Colorimetric scraping sample Moulding.
$172.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

OSP OSP-10/400 coating rodSPEC

OSP OSP-10/400 coating rodDetails

OSP OSP-10/400 coating rodPacking list

SKU
NB003736
Production process
Formed
WFT
10µm
diameter
10mm
Total length
400mm
Application width
300mm
Grip width
50+50mm
material
304 stainless steel
OSP-10/400
coating rod
Formed Proofing rod, wet film thickness 10μm, stainless steel material, can be used for manual film or with Film Applicator automatic film, high-precision, especially suitable for inks to Colorimetric scraping sample Moulding.

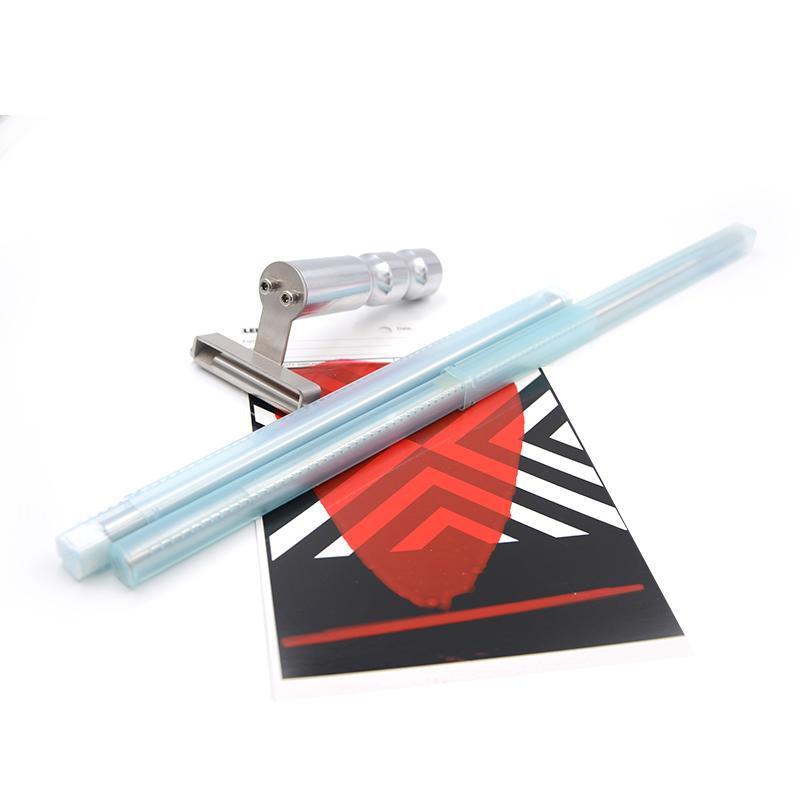

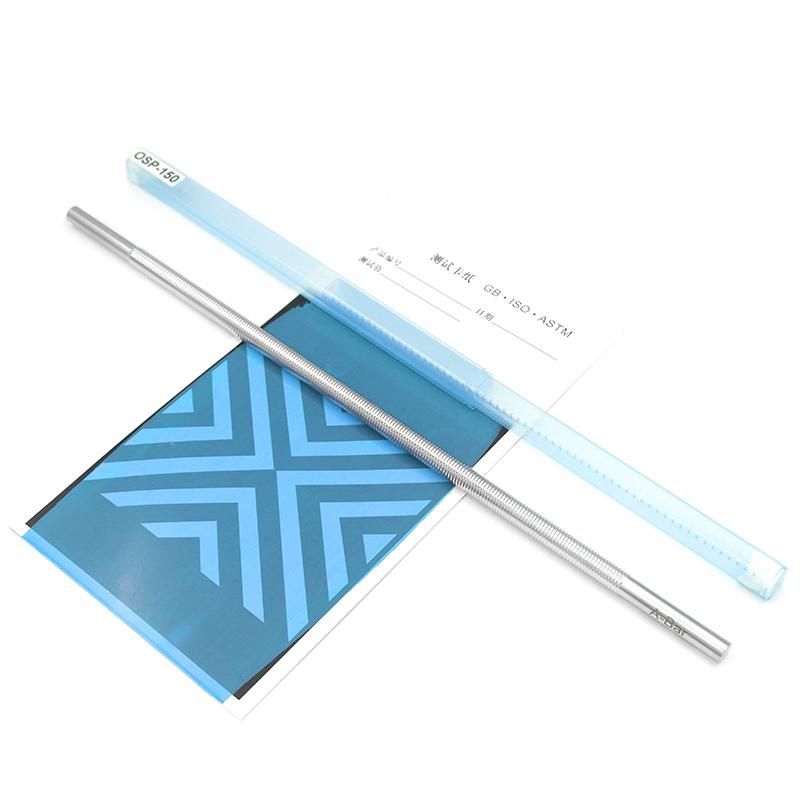

Japan OSP-10/400 scraper inks stick WFT 10μm length 400mm Picture


Japan's OSP-10/400 squeegee ink stick stainless steel wire rod can coat a wet film thickness of 10 microns and a coating width of 300mm, which is the model with the widest coating width of the entire OPS series.

OSP extruded stainless steel wire rod animation operation video.gif

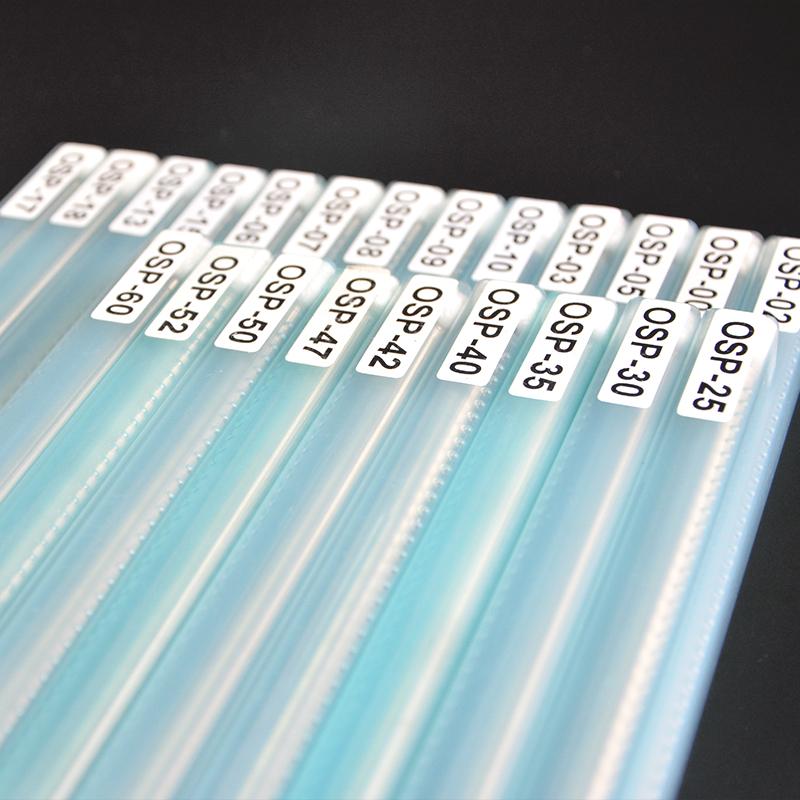

Japanese OSP stainless steel wire rod full range of purchase chart

OSP extruded stainless steel wire rod product specification.jpg

Features and advantages of OSP extruded stainless steel wire rod.gif

OSP-10 stainless steel wire rod groove shape

OSP-10 stainless steel wire rod with high coating precision

Application of OSP extruded stainless steel wire rod.jpg

Why choose NBCHAO Mall.jpg

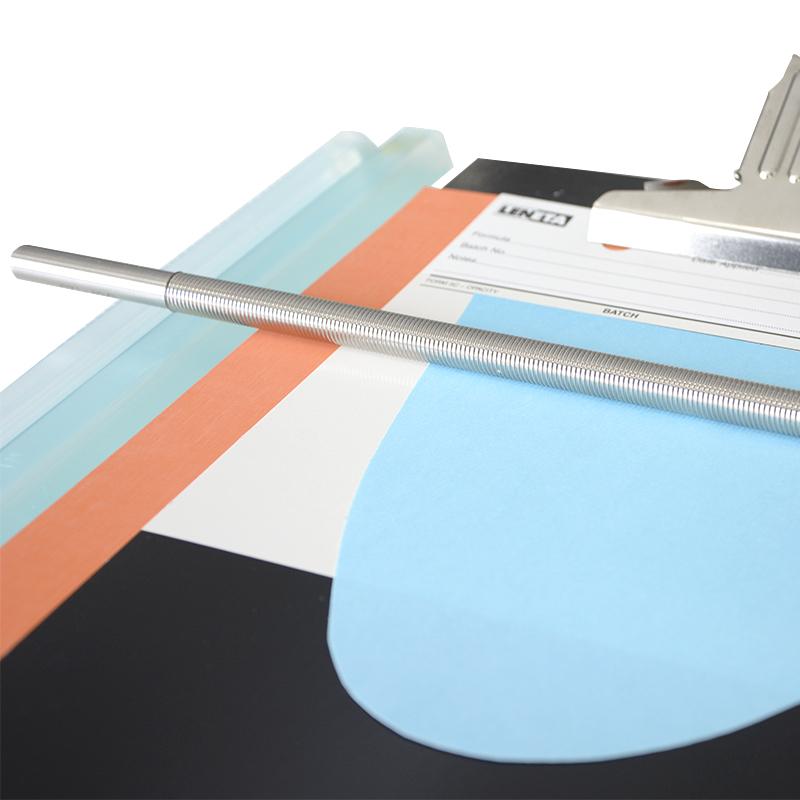

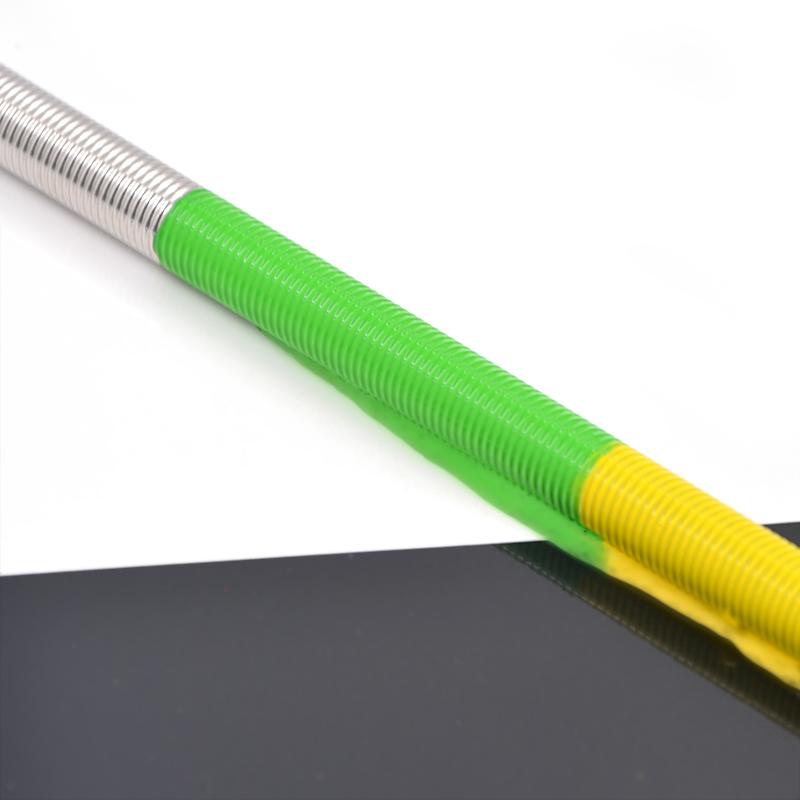

Real shot of OSP-10 extruded stainless steel wire rod 1.jpg

Real shot of OSP-10 extruded stainless steel wire rod 2.jpg

OSP-10 extruded stainless steel rod handle real shot.jpg

Optional

Wire Rod Cleaning Machine

LABOratory automatic coating machine

Coating film test jamRK imprint bed

Note: Click on the accessory picture to view Details.

FAQ
QDo you have a 10um wire stick?
A Yes, OSP's No. 10 bar scraping wet film thickness is 10 microns.
QCan a 10 micron electrode paste be applied to copper foil?
A Yes. But the substrate copper foil needs to be flat, and it is recommended to use it with a vacuum adsorption Film Applicator.
QWet-film and Dry-Film, what is the difference? I use it to make epoxy resin, and I need a 10um thick wet-film applicator.
A This one is OK. The relationship between wet-film and Dry-Film can be found in the NBchao technical article.
QIs the OSP Printing ink scraper L250 and L400 the same?
A Hello, the same, the effective Spreader width is different.
QWhat is the difference between OSP Applicator rod L250 and L400?
A Hello, L250 means the total length is 250mm, and L400 means the total length is 400mm.
QCan this coating rod be prepative of multi-layer ultra-thin film?
A The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
QDoes this film scraper conform to ASTMD823 standard?
A This film scraper is suitable for ASTMD823. Please consult customer service for detailed application definition.
QWhat kind of scraper stick can be used for anodized aluminum film 10 microns?
A This model applies
QDo you have a 10 micron Spreader stick?
A You can take a look at the ope-10, the wet film thickness is 10 microns, and there are two models of 250mm and 450mm long. For details, please see:/p/65.
