Japan OSP-17/400 formed inks coating bar WFT 17μm length 400mm

SE
The thickness of the formed inks coating bar film is 17 μ m, which has the advantages of easy cleaning and continuous filament, and is not easy to block impurities. The effective application width is 30cm.
$172.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

OSP OSP-17/400 coating rodSPEC

OSP OSP-17/400 coating rodDetails

OSP OSP-17/400 coating rodPacking list

SKU
NB003760
Production process
Formed
WFT
17µm
diameter
10mm
Total length
400mm
Application width
300mm
Grip width
50+50mm
material
304 stainless steel
OSP-17/400
coating rod
The thickness of the formed inks coating bar film is 17 μ m, which has the advantages of easy cleaning and continuous filament, and is not easy to block impurities. The effective application width is 30cm.
Japan OSP-17/400 formed inks coating bar WFT 17μm length 400mm Picture


The Japanese OSP-17/400 extrusion type ink scraper differs from the wire-wound type in that it is an extrusion type, easy to clean, non-stop wire coating rod, and is not easy to block impurities. The wet film thickness of OSP-17/400 coating film rod is 17μm .

OSP extrusion coating rod animation operation video.gif

Japanese OSP Coating Rod Full Series Chart

OSP Squeeze Ink Squeegee Specifications.jpg

Features and advantages of OSP extrusion coating rod.gif

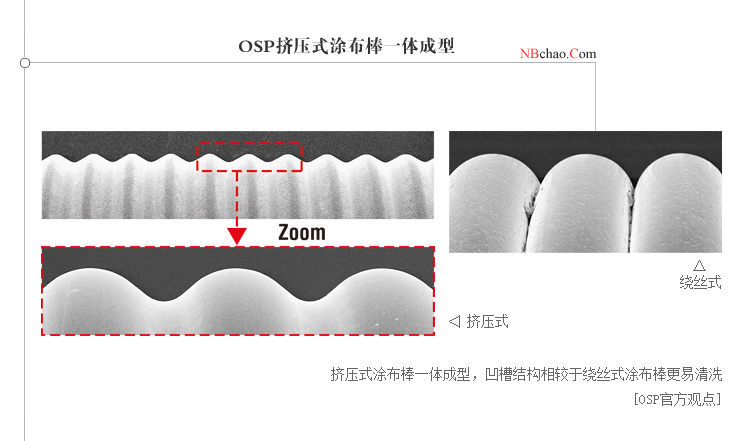

OSP-17 Squeeze Ink Squeegee Groove Shape

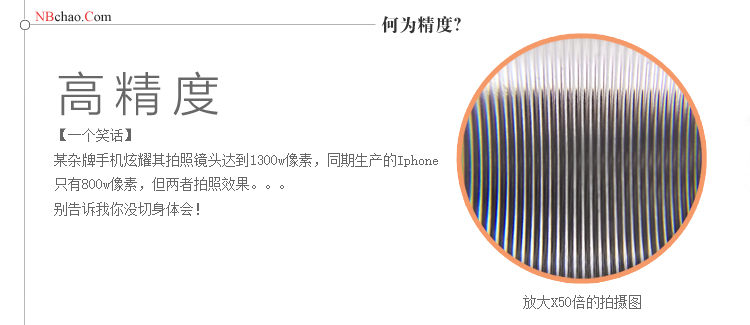

OSP-17 extrusion type ink scraper with high coating precision

Application of OSP extrusion coating rod.jpg

Why choose NBCHAO Mall.jpg

Real shot of OSP extrusion coating rod 1.jpg

Real shot of OSP extrusion coating rod 2.jpg

The real picture of the handle of the OSP extrusion coating rod.jpg

Optional

Wire Rod Cleaning Machine

LABOratory automatic coating machine

Coating film test jamRK imprint bed

Note: Click on the accessory picture to view Details.

FAQ
QTo meet the GB/T13217.1 film scraper
A OSP-17/400 film scraper, please refer to it.
QSolvent-based and non-solvent-based epoxy paints are suitable for film testing of Mechanical Properties in the laboratory.
A Hello, choosing the right wet film thickness is an important basis for choosing the scraper model. Different epoxy paint users have different target dry films. Due to the different Solid content, the wet film thickness is more different. Therefore, it is recommended that you convert and select through the North and South Moisture Film Thickness Calculator or Dry and Wet Film Converter.
